| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS420 |
| Price: | $80.00 - $290.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Output: | Optional 0/1-5V 0-10V 4-20mA |
| Port: | Shanghai Or Other |
High temperature pressure sensor
1. Specification:
Spec. | Value | Remark | ||
Pressure range | 0~1….500mH2O | 1mH2O≈9.81kPa | ||
Overload pressure | 1.5 times nominal pressure |
| ||
Secondary Containment | 3 times nominal pressure |
| ||
Accuracy | ±0.25%F.S,±0.5%F.S(MARS portfolio for high accuracy) |
| ||
Stability | Typical value 0.15%F.S, Max. value:0.25%F.S |
| ||
Operating temperature | -20°C~100°C (-20°C~120°C available) |
| ||
Compensated Temperature Range | -10°C~70°C(customized all temperature range available ) |
| ||
Medium Compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L |
| ||
Electrical properties | 2 wires | 3 wires |
| |
Output signal | 4~20mA | 0/1~5V | 0~10V |
|
Power supplier | 10~30Vdc | 8~24Vdc/ac | 11~30Vdc/ac | Vdc/ac |
Load resistance | (U-10)/0.02( Ω ) | >100k Ω |
| |
Minimum isolation between case and terminations | >100M Ω @50V |
| ||
Surge immunity | 500V@60 second |
| ||
Display panel | 5th grade sealing , IP68 |
| ||
Pressure port | T=submersible F=split style |
| ||
Response time | 10ms |
| ||
Shock and vibration | 10g/5~2000Hz, axes X/Y/Z 20g sine 11ms |
| ||
Certificate | Intrinsically safe mode, insulation explosion proof, CE |
| ||
EMI/ EMC | EMI:EN50081-1/-2;EMC: EN50082-2 |
| ||
lightning protection | conduction of air pressure 8000V,housing, conduction of cable pressure 4000V | Customized available | ||
2. Electrical connection:
 |
3. Feature:
1). Accuracy: ± 0.25, ±0.5% F.S
2). OEM available
3). Diffused-silicon oil-filled core
4). Submersible and screw thread installation
5). The Max. of temperature is 120°C
6). Non polarized and 2 wire system output
7). Intrinsically safe mode, explosion-proof, CE
Against severe electromagnetic interference
4. Application
1). Geothermal measurement
2). Geothermal water collection
3). Thermal power plant cooling water monitoring
4). Thermal boilers
5). Hydrologic monitoring facilities
6). Heating boiler
7). Generating set
8). Hydroelectric power

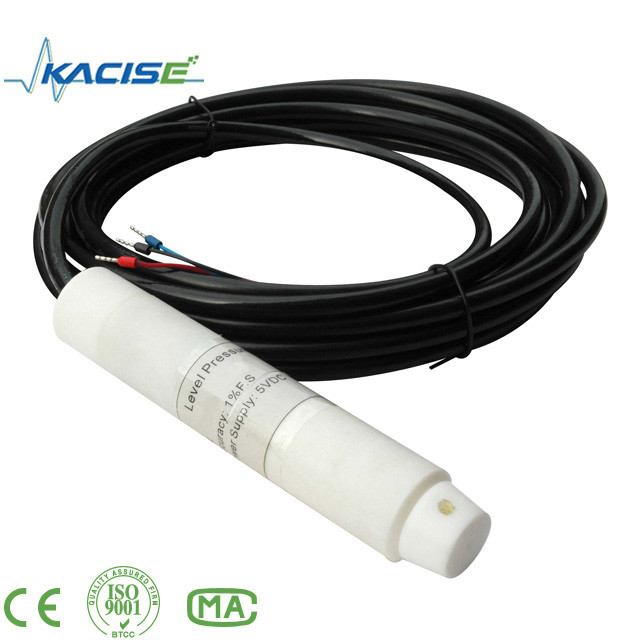

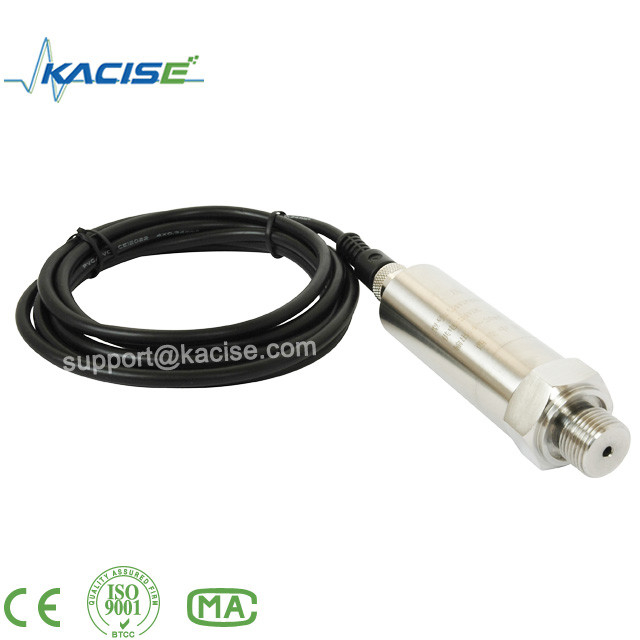

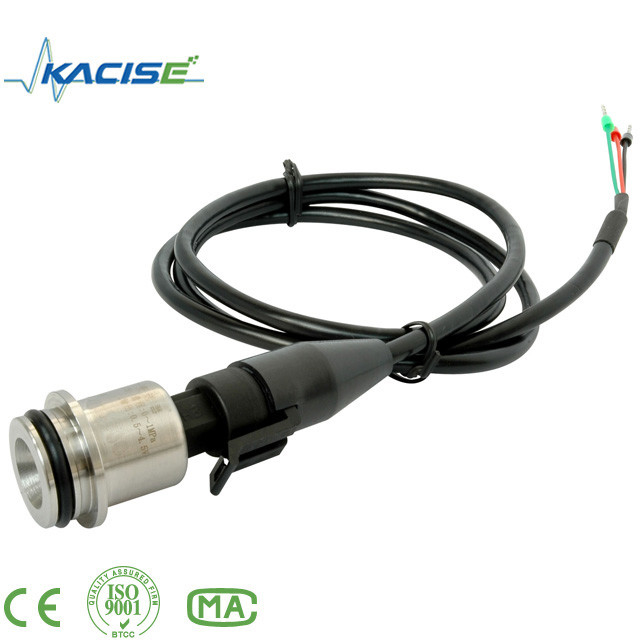

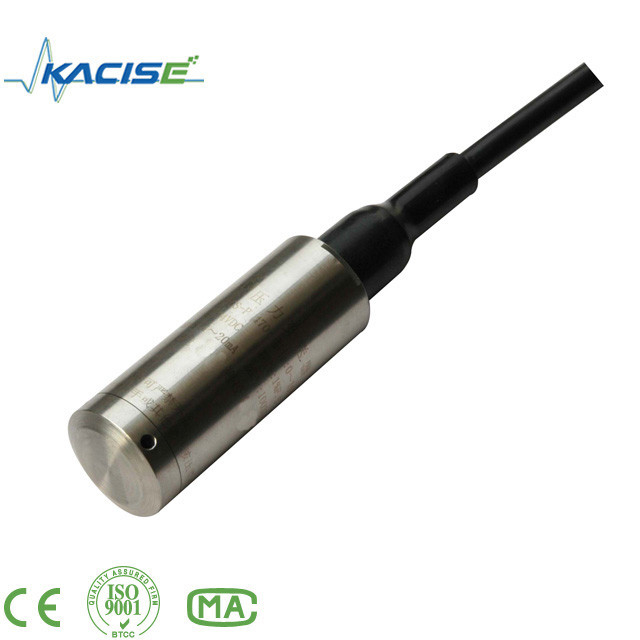

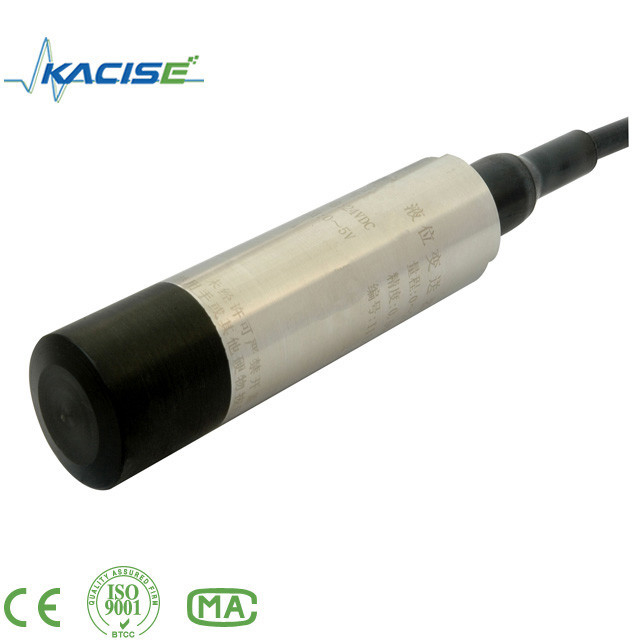

5. Product picture
|
|
