| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS500 |
| Price: | $80.00 - $390.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Output: | Optional 0/1-5V 0-10V 4-40mA | Port: | Shanghai Or Other |
|---|
GXPS500 Differential pressure transmitter Transducer
1. Specification:
Spec. | Value | ||
Pressure range | 0~±5kPa……±5000kPa | ||
Load pressure | 1.5 times nominal value | ||
pipeline Isostatic pressing | 3, 5, 10 times nominal value 20MPa | ||
Accuracy | ±0.25%F.S, ±0.5%F.S | ||
Stability | Typical value 0.1%F.S, Max. value: 0.2%F.S | ||
Operating temperature | -40°C~85°C | ||
Compensation temperature | -10°C~70°C | ||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L | ||
Electrical properties | two-wire system | Three-wire system | |
Output signal | 4~20mA | 0/1~5V | 0~10V |
Power supply | 10~30Vdc | 8~36Vdc/ac | 11~30Vdc/ac |
Load resistance | (U-10)/0.02(Ω) | >100k Ω | |
Min. isolation between case & terminations | >100M Ω @50V | ||
Electric Strength | 500V@60 second | ||
vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
Seal grade | Waterproof cable, Protection grade IP68; DIN43650, IP65 | ||
Response time | 10ms | ||
Pressure durable | 2×106 pressure circle @25°C | ||
EMI/ EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
lightning protection | Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V | ||
2. Electrical connection:
 |
|
Electric connection | |||||
2 wire | 3 wire | 4 wire | Cable | Hirsman | Connector |
Power | Power | Power+ | Red | 1 | 1 |
Output | Output | Output+ | Blue | 2 | 2 |
| Power ground | Power- | Black | 3 | 3 |
|
| Output- | Green |
|
|
Shielded | Shielded | Shielded | Yellow | 4 | |
3. Feature:
1). Accuracy: ±0.25,±0.5%F.S
2). Diffused-Silicon oil-filled core
3). Multiple pressure range and output signal
4). Display indicator available and output node
5). Various screw connection
6). Non polarity 2 line current output
7). AC,DC voltage output
8). Intrinsically safe mode , isolation explosion protection, CE
9). Against severe electromagnetic interference, lightning protection
4. Apllications
1). Flow measurement
2). Effluent treatment
3). Coal mine air pressure difference
4). Hydropower station stage difference
5). City flood protection and water logging drainage project
6). Underwater engineering
7). Groundwater monitoring
8). Water-efficient irrigation
9). Centralized air-condition Terminal Control
I. The sensor is desgined specially for CNG car CNG filling station. freezer,farm equipment,pressure gauge.energy and water processing system, Industrial process automation system,oil well managment.
II. Help our customer cut the cost obviously.

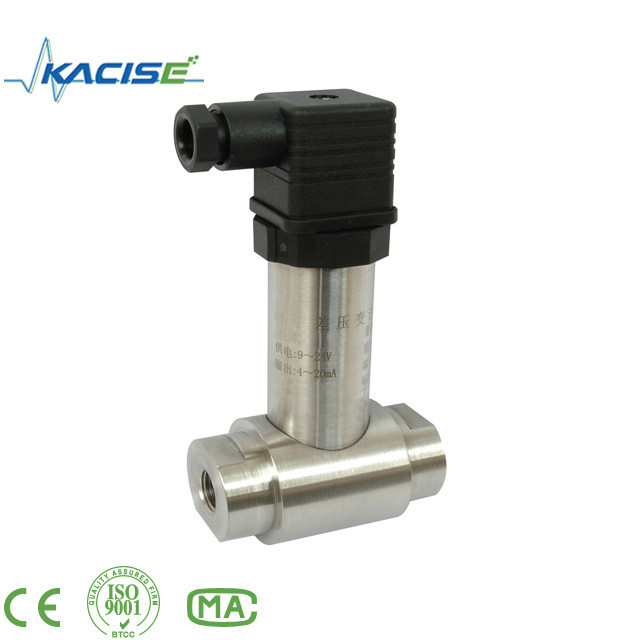

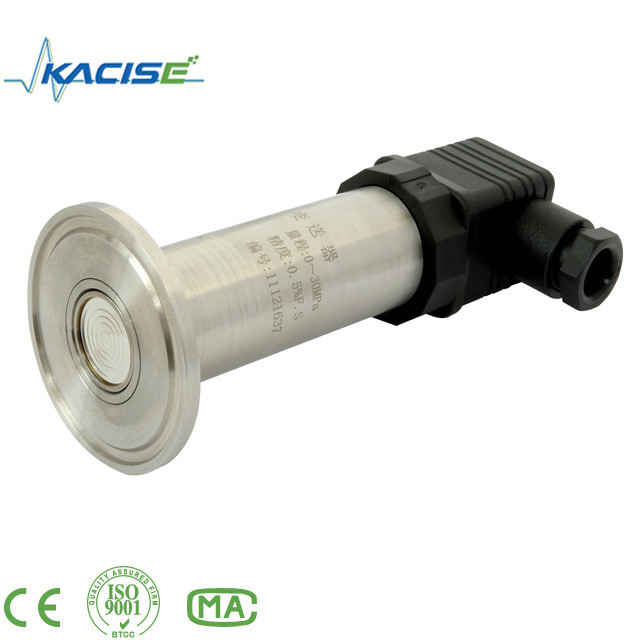

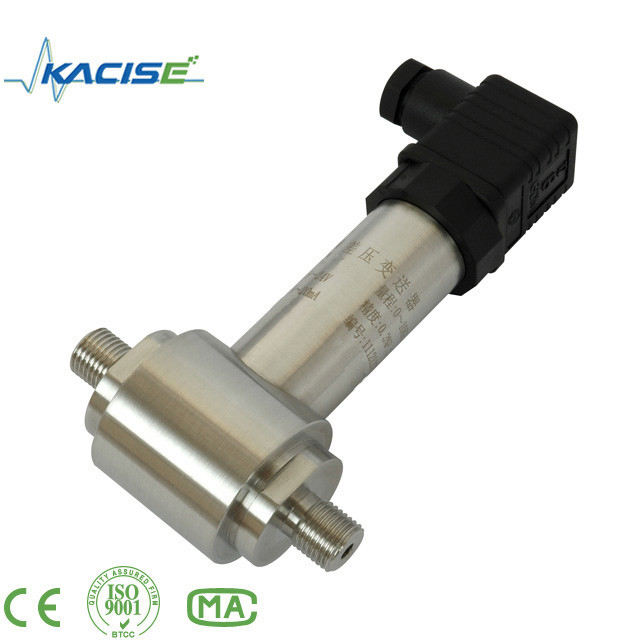

5. Product picture
|
|
