Name: High Accuracy Differential Pressure Transducer with 4-20mA Output and IP68 Waterproof Rating
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS500
Price: 235.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

High Accuracy Differential Pressure Transducer with 4-20mA Output and IP68 Waterproof Rating

differential pressure transducer with warranty

fluid level meter for industrial use

pressure transducer for fluid measurement

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXPS500

Request A Quote

Product Details

Output:

Optional 0/1-5V 0-10V 4-40mA

Port:

Shanghai Or Other

Highlight:

differential pressure transducer with warranty

fluid level meter for industrial use

pressure transducer for fluid measurement

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$80.00 - $390.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

316 Stainless Steel Capacitive Level Sensor with IP67 Protection and HART Communication for Harsh Environments

Get Best Price

80GHz Radar Level Gauge for High Temperature and Corrosive Tanks with FMCW Technology

Get Best Price

KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos

Get Best Price

26GHz Frequency Radar Level Meter with Non-Contact Measurement and IP67 Protection for Liquid Level Monitoring

Get Best Price

Contact Now

Product Description

GXPS500 Differential pressure transmitter Transducer

1. Specification:

Spec.	Value
Pressure range	0~±5kPa……±5000kPa
Load pressure	1.5 times nominal value
pipeline Isostatic pressing	3, 5, 10 times nominal value 20MPa
Accuracy	±0.25%F.S, ±0.5%F.S
Stability	Typical value 0.1%F.S, Max. value: 0.2%F.S
Operating temperature	-40°C~85°C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L
Electrical properties	two-wire system	Three-wire system
Output signal	4~20mA	0/1~5V	0~10V
Power supply	10~30Vdc	8~36Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02(Ω)	>100k Ω
Min. isolation between case & terminations	>100M Ω @50V
Electric Strength	500V@60 second
vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Seal grade	Waterproof cable, Protection grade IP68; DIN43650, IP65
Response time	10ms
Pressure durable	2×10⁶ pressure circle @25°C
EMI/ EMC	EMI: EN50081-1/-2; EMC: EN50082-2
lightning protection	Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V

2. Electrical connection:

Electric connection
2 wire	3 wire	4 wire	Cable	Hirsman	Connector
Power	Power	Power+	Red	1	1
Output	Output	Output+	Blue	2	2
	Power ground	Power-	Black	3	3
		Output-	Green
Shielded	Shielded	Shielded	Yellow		4

3. Feature:

Accuracy: ±0.25,±0.5%F.S
Diffused-Silicon oil-filled core
Multiple pressure range and output signal
Display indicator available and output node
Various screw connection
Non polarity 2 line current output
AC,DC voltage output
Intrinsically safe mode , isolation explosion protection, CE
Against severe electromagnetic interference, lightning protection

4. Applications

Flow measurement
Effluent treatment
Coal mine air pressure difference
Hydropower station stage difference
City flood protection and water logging drainage project
Underwater engineering
Groundwater monitoring
Water-efficient irrigation
Centralized air-condition Terminal Control

I. The sensor is desgined specially for CNG car CNG filling station. freezer,farm equipment,pressure gauge.energy and water processing system, Industrial process automation system,oil well managment.
II. Help our customer cut the cost obviously.

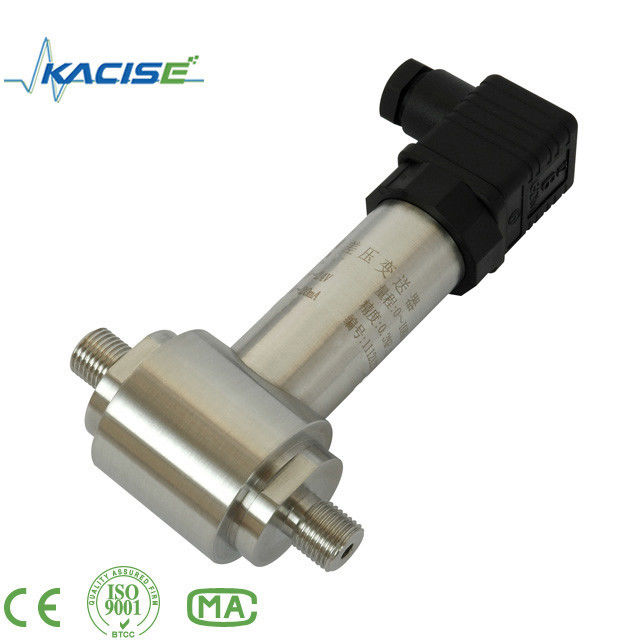

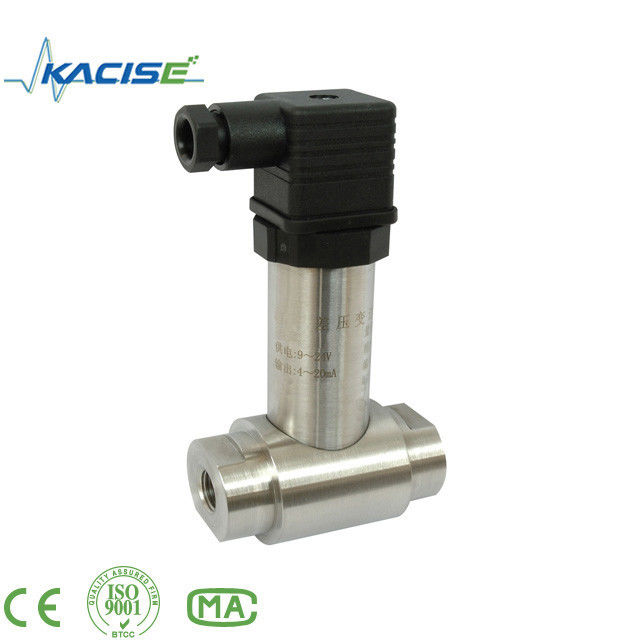

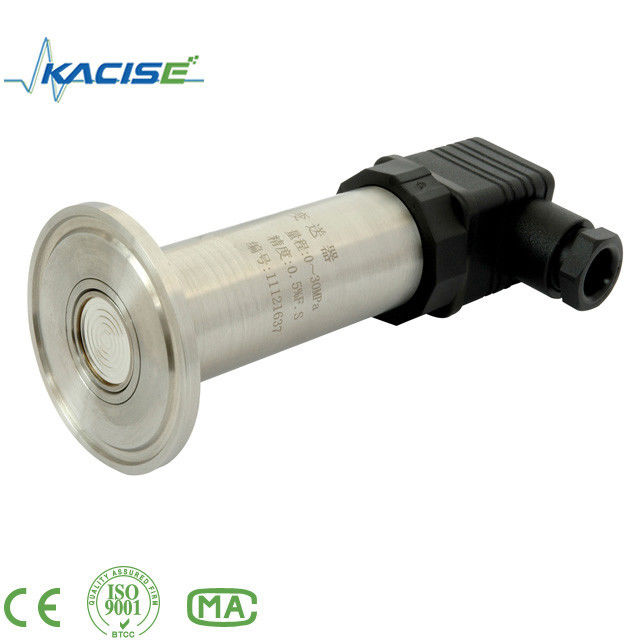

5. Product picture
