| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |

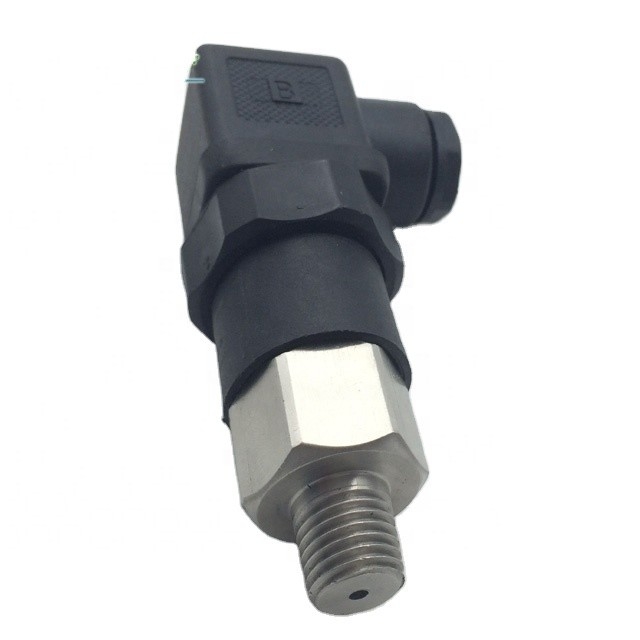

| Model Number: | GXPS700 |
| Price: | $80.00 - $280.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week 0~5v analog pressure sensor |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Range:: | 0~0.01MPa......40MPa |
| Working Temp.: | -40°C To +85 °C | Output Signal: | 4~20mA 0~5V 0~10V |
| Accuracy: | ±0.25%F.S, ±0.5%F.S | Stability: | Typical Value 0.25%F.S, Max. Value: 0.4%F.S |
| Power Supplies: | 10~30Vdc 6~24Vdc/10~36Vac 11~30Vdc/20~36Vac | Medium Compatibility: | All Caustic Medium Compatible With 1Cr18Ni9Ti |
| Certification: | Intrinsically Safe Mode E, Isolation Explosion Proof D, CE | Feature: | 0~5v Analog Pressure Sensor |
| Port: | Shanghai Or Other |
Spec. | Value | ||
Pressure range | 0~0.01MPa......40MPa | ||
Load pressure | 1.5times nominal value pressure (1.5X) | ||
Rupture pressure | 3times nominal value pressure (3X) | ||
Accuracy | ±0.25%F.S, ±0.5%F.S | ||
Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | ||
Operating temperature | -40°C~85°C | ||
Compensation temperature | -10°C~70°C | ||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | ||
Electrical performance | 2 wire system | 3 wire system | |
Output signal | 4~20mA | 0~5V | 0~10V |
Power supply | 10~30Vdc | 6~24Vdc/10~36Vac | 11~30Vdc/20~36Vac |
Load pressure | (U-10)/0.02(Ω) | >100kΩ | |
Insulation | >100M Ω@50V | ||
Electrical connection | Connector DIN43650, IP65 | ||
Air plug GX16-7, IP45 | |||
Waterproof outlet, IP68 | |||
Pressure port | M20×1.5, G1/2, G1/4, NPT1/4, NPT1/2 | ||
Response time | 10ms | ||
Certificattion | Intrinsically safe mode E, Isolation explosion proof D, CE | ||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
2. Feature:
1). High performance oiled diffusion silicon within core elements,
4. Application:
1). Atmosphere measure
2). Aviation, spaceflight, navigation
3). Packaging machinery
4). Petrochemical industry
5). Meteorological monitoring
6). Automatic detection system
7). The mine wind pressure test
8). Top floor apartment management
*****************************************************************************************************************
