| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPT1300 |
| Price: | $35.00 - $60.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Usage: | Pressure Sensor | Theory: | Resistance Sensor |
|---|---|---|---|
| Feature: | Level Pressure Transmitter | Port: | Shanghai Or Other |

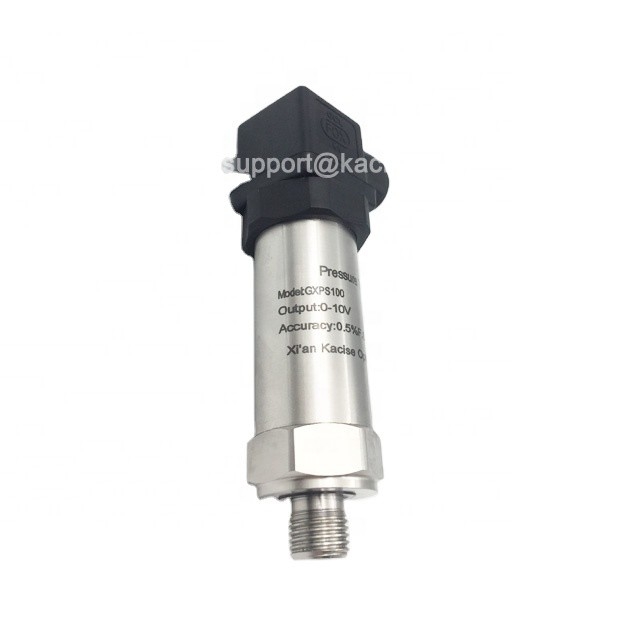

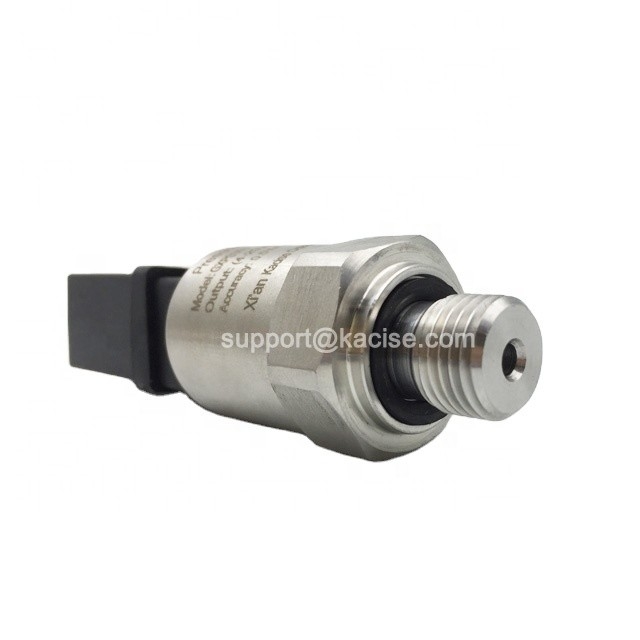

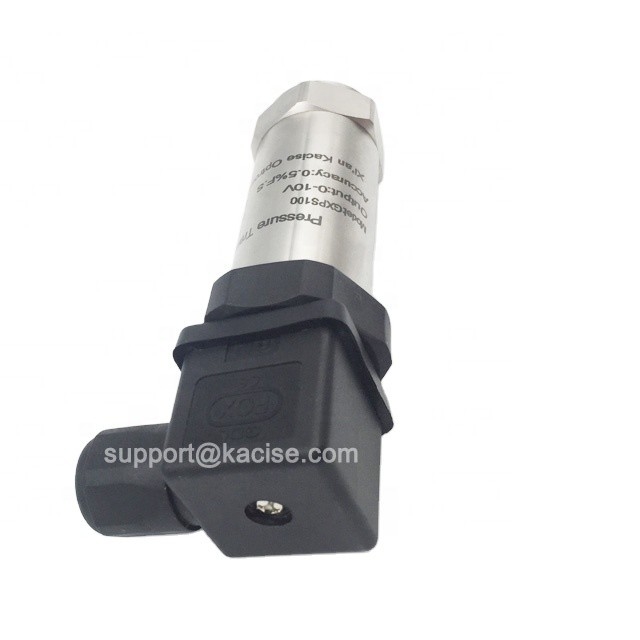

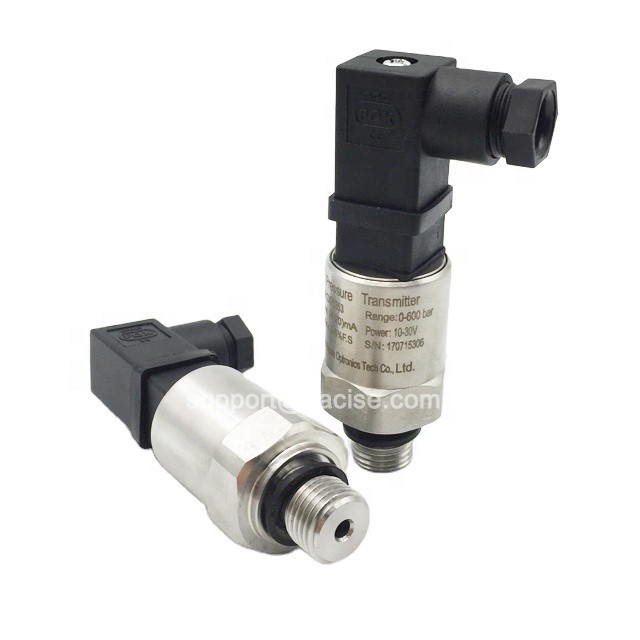

GXPS351 Auto industry pressure transmitter
1. Parameter
Spec. | Value | ||
Pressure range | 0~2bar ......60bar | ||
Load pressure | 2 times nominal value pressure (2X) | ||
Rupture pressure | 3times nominal value pressure (3X) | ||
Accuracy | ±1%F.S, ±2%F.S, ±2.5%F.S | ||
Stability | Typical value 1%F.S, Max. value: 2%F.S | ||
Operating temperature | -40°C~125°C | ||
Compensation temperature | -10°C~80°C | ||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | ||
Electrical performance | 3 wire system | ||
Output signal | 0~5V | ||
Power supply | 10~24Vdc | ||
Load pressure | (U-10)/0.02(Ω) | ||
Insulation | >100MΩ@50V | ||
Electric strength | 500V@60 second | ||
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
Pressure durable | 2×106pressure circle @25°C | ||
Electrical connection | Packard, DJ7032-2.3, water proof joint | ||
Pressure port | M14×1.5, M12×1, G1/2, | ||
Pressure type | G, | ||
Certificate | CE | ||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
2. Electrical connection mode & structure:
Electrical connection | |||
Three wire | Cable | Waterproof joint | Packard |
Power | Red | A | A |
Output | Blue/green | B | B |
Power ground | Black | C | C |
Output signal | |
Three wire | 0.5~4.5V, 1~3V, 1~5V (dc) |
3. Feature
Accuracy ±1, ±2, ±2.5%F.S
High stability, high reliability
Import German ceramic core body
Digital calibration
Various connectors and pressure port
Zero can be arbitrarily displaced
Variable drive can be between 50 to 100%
CE certificate
RoHS compliant
4. Apllications
Compressor
Floor house water supply
Hydraulic control
Air conditioning unit
Automobile engine
Automatic detection system
Hydraulic unit
Refrigeration equipment
1). The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.
2). The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,
3). Help our customer cut the cost obviously.
