GXPS smart wireless pressure transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Request A Quote

GXPS smart wireless pressure transmitter

Product Details

Pressure Range:

0~0.2MPa......60MPa

Feature:

Wireless Pressure Transmitter

Stability:

Typical Value 0.25%F.S/year

Working Temperature:

-10°C~60°C

Transmission Method:

ZIGBEE

Power Supply:

3.6V/1battery (1)

Insulation:

>100M Ω @50V

Electric Strength:

500V@60 Second

Pressure Tap:

M20x1.5,G1/4,G1/2,R1/2,NPT1/2

Pressure Type:

Gauge Pressure G,S

Port:

Shanghai Or Other

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$90.00 - $290.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

GXPS smart wireless pressure transmitter
1. Specification:

Spec.	Value		Remark
Type	GXPS350A	GXPS350B
Pressure range	0~0.2MPa......60MPa		1MPa=10bar 1bar≈14.5PSI 1PSI=6.8965kPa 1kgf/cm²=1atmosphere pressure 1 atmosphere pressure =98kPa
Overload pressure	1.5times nominal value(1.5X)
Fracture pressure	3times nominal value (3X)
Accuracy	±0.5%F.S
Stability	Typical value 0.25%F.S/year
Working temperature	-10°C~60°C
Compensation temperature	-10°C~60°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Transmission Method	ZIGBEE
Power supply	3.6V/1battery (1)
Insulation	>100M &; @50V
electric strength	500V@60 second
vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Display range	Display not operating	display:0.001~999999
Pressure tap	M20×1.5,G1/4,G1/2,R1/2,NPT1/2
Pressure type	Gauge pressure G,S	Response time:10ms
Electromagnetic compatibility	electromagnetic radiation:EN50081-1/-2;electromagnetic Sensitivity:EN50082-2

2. Feature:
1). Diffused-Silicon core
2). Wireless communication
3). Self Organizing Mesh net
4). Battery power, Low Consumption
5). LCD Indicator

3. Application:
1). Wild field or non power distribution situation
2). Pipeline pressure monitoring
3). Metallurgical chemical

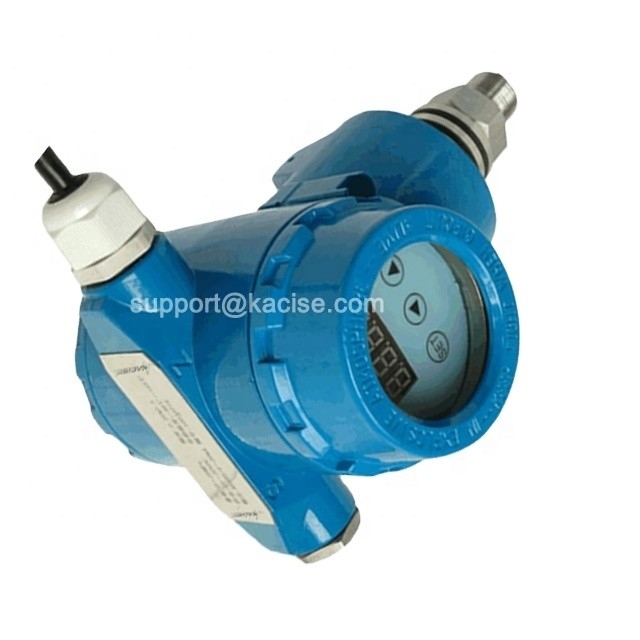

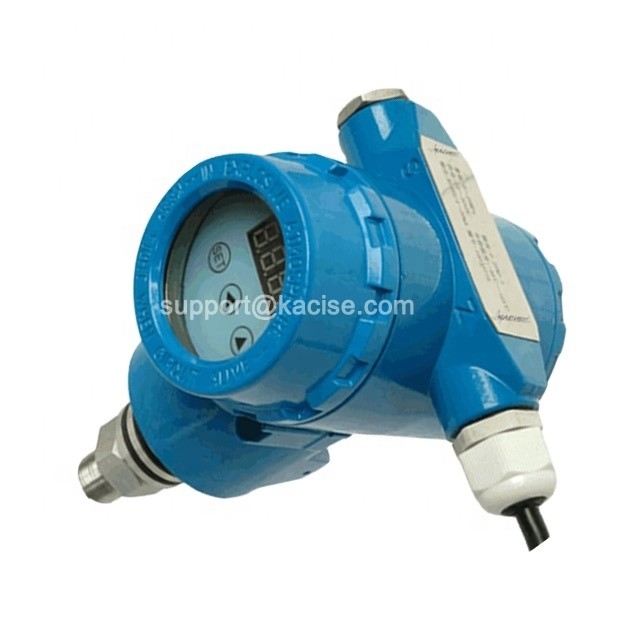

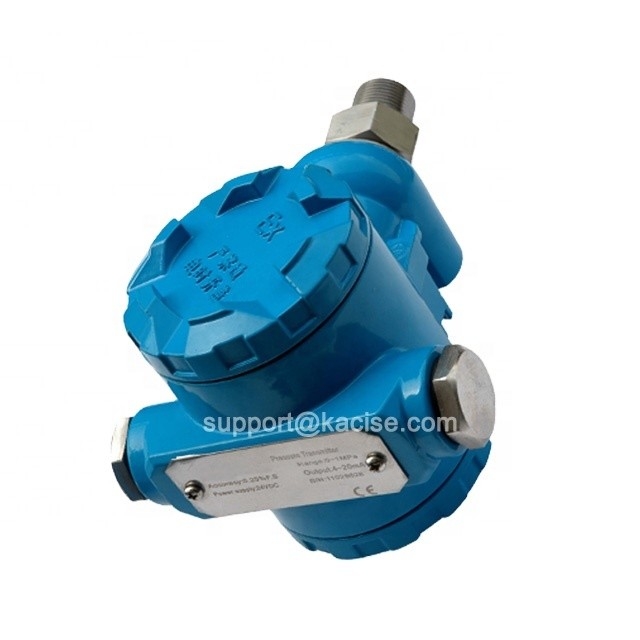

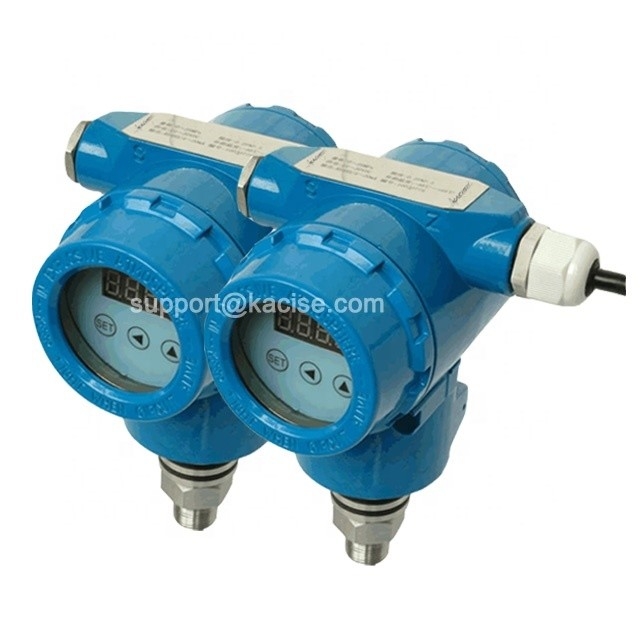

4. Product picture
