Product Description

High Performance Oil Pressure Switch

1. Specification:

Spec.	Value
Pressure range	0~0.1MPa......60MPa; 1bar…600bar; 14.5psi…8700psi 10000MmH20…6118000mmH2O 0.98atm…592stm
Load pressure	1.5times nominal value pressure (1.5Χ)
Rupture pressure	3times nominal value pressure (3χ)
Accuracy	±0.5%F.S, ±1%F.S, ±2%F.S
Stability	Typical value 0.25%F.S, Max.: 0.5%F.S
Operating temperature	-20°C~60°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal	The relay output
Power supply	24Vdc
Contact load	0.5A 125VAC/1A 30VDC
Insulation	>100M Ω@50V
Pressure port	M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type	G,S	Response time: 10ms
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

2. Feature :

Accuracy : 0.5%F.S, 1%F.S, 2%F.S

Adjustable alarm output

With on-site switch indicator

Various pressure range and switch output

3. Application:

Hydraulic control

Petrochemical

Pressure Instruments

Automatic detection system

Machine control

Metallurgical and Chemica

4. Electronic interface and signals definition

Electric connection
Color	Red	Black	White
Definition	Power+	Power -	Common terminal
Color	Blue	Green	Grey
Definition	Normally Closed	Normally open	Shield

High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output 0

Packaging & Shipping

5. Package

High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output 1

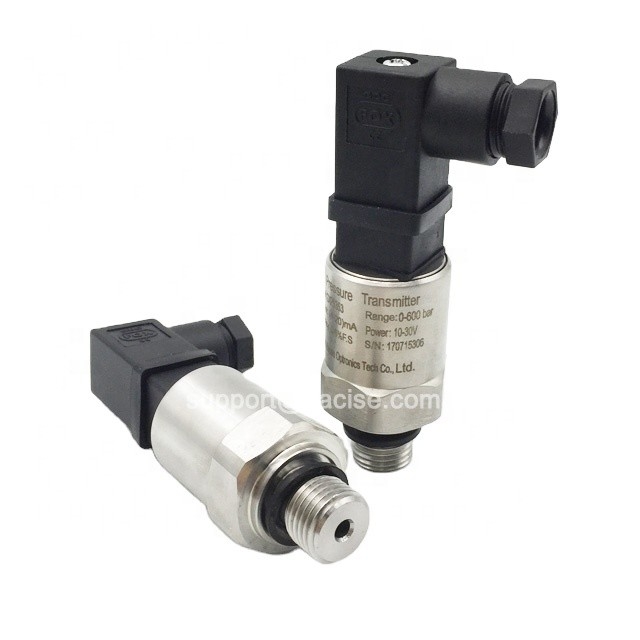

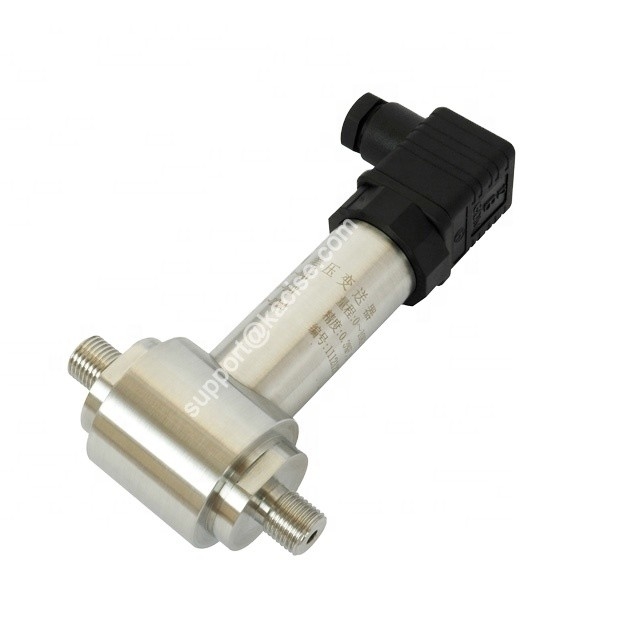

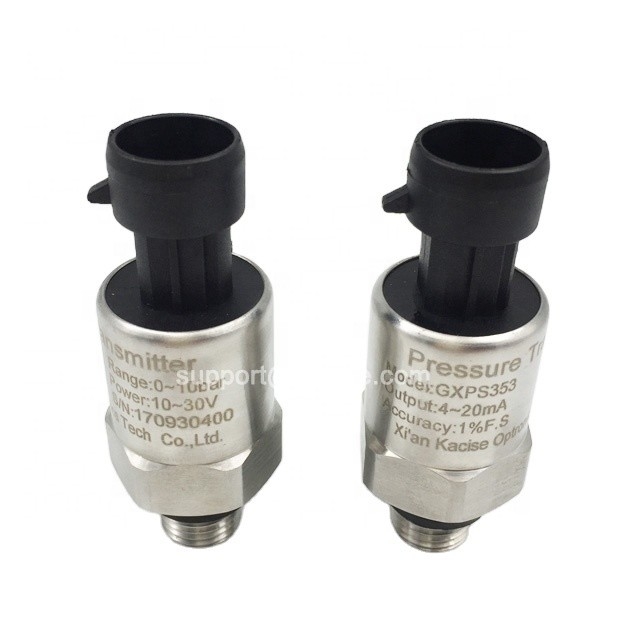

6. Product picture

High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output 4

Our Services

NO.1 One piece sample is available.
NO.2 Supplier Assessment--onsite Check
NO.3 100% real photos--Detailed images, detailed description
NO.4 7*24 hours online--Efficient service, Professional answers
NO.5 After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)

******************************************************************************************************************************************
