Name: Analog Output Pressure Sensor Switch with Relay Output and Caustic Medium Compatibility
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS620
Price: 190.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

Analog Output Pressure Sensor Switch with Relay Output and Caustic Medium Compatibility

pressure sensor switch with warranty

fluid level pressure sensor

industrial pressure sensor switch

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXPS620

Request A Quote

Analog Output Pressure Sensor Switch with Relay Output and Caustic Medium Compatibility

Product Details

Usage:

PRESSURE SENSOR

Theory:

Resistance Sensor

Output:

Analog SENSOR

Accuracy:

0.5% F.S, 1.0%F.S

Feature:

Adjustable Alarm Output

Pressure Range:

-100...0~35...100Kpa

Port:

Shanghai Or Other

Highlight:

pressure sensor switch with warranty

fluid level pressure sensor

industrial pressure sensor switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$90.00 - $290.00/sets

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Product Description

Display type water pressure sensor switch

1. Parameter

Spec.	Value
Pressure range	-100…0~35…100Kpa
Load pressure	2 times nominal value pressure (2X)
Rupture pressure	4 times nominal value pressure (4X)
Accuracy	±0.5%F.S, ±1%F.S, ±2%F.S, optional
Stability	Typical value 0.25%F.S/year,
Operating temperature	-20°c ~60°c
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal	Two relay output, with normal close & normal open output
Life span of switch	More than 1, 000, 000 times
Power supply	24±10%Vdc
Contact load	0.5A 125VAC/1A 30VDC
Insulation	>100M Ω@50V
Pressure port	M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type	G, S	Response time : 10ms
EMI/EMC	EMI: EN50081-1/-2 ; EMC: EN50082-2

2. Electronic interface and signals definition

Electrical connection
Color	Red	Black	Green	Blue	Yellow	Brown	Orange	Purple
Founction	Power +	Power -	common terminal1	Normal close 1	Normal open1	Common terminal2	Normal close 2	Normal close 2

3. Feature

Accuracy: 0.5% F.S, 1.0%F.S, 2.0%F.S
Field display
Adjustable alarm output
Two relay output
Various pressure range switch output

4. Application

Hydraulic control
Petrochemical
Pressure instrument
Automatic checkout system
Fluid pressure measurement
Chemical metallurgy

5. Product picture

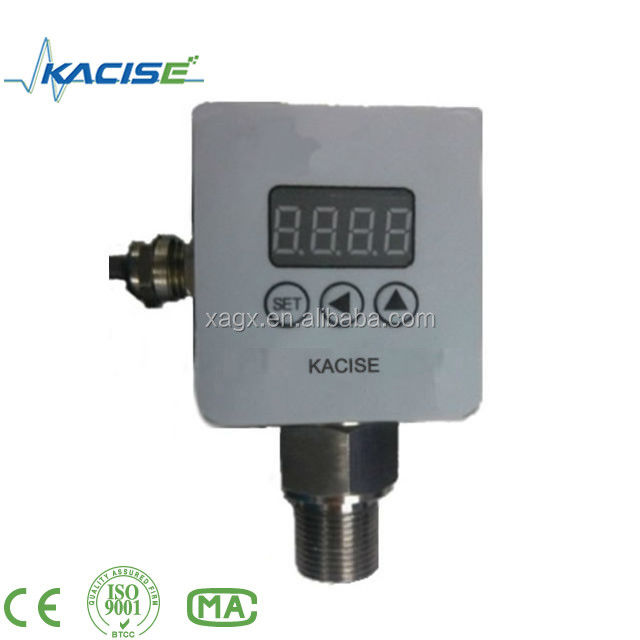

Analog Output Pressure Sensor Switch with Relay Output and Caustic Medium Compatibility 1

Analog Output Pressure Sensor Switch with Relay Output and Caustic Medium Compatibility 2
