| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS240 |
| Price: | $125.00 - $390.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Output: | Optional 0/1-5V 0-10V 4-40mA | Usage: | Pressure Sensor |
|---|---|---|---|
| Theory: | Resistance Sensor | Port: | Shanghai Or Other |

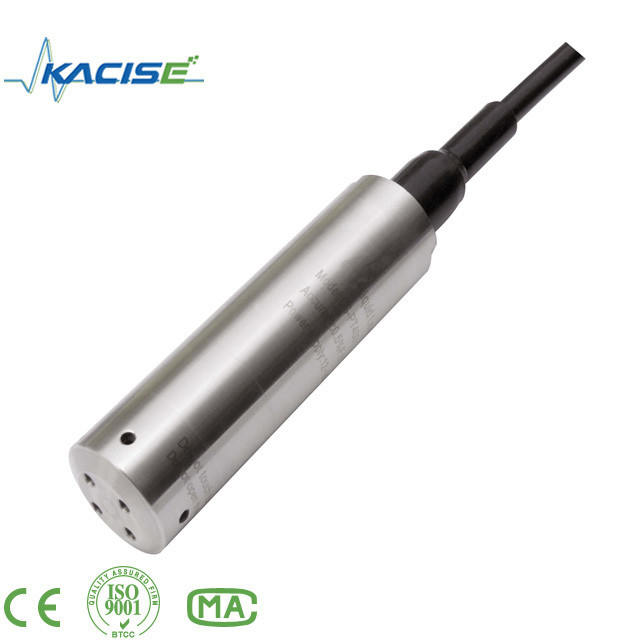

GXPS240 High-frequency water supply pressure transmitter
1. Parameter
Spec. | Value | |||
Pressure range | 0~0.5MPa......60MPa | |||
Load pressure | 1.5times nominal value pressure (1.5X) | |||
Rupture pressure | 3times nominal value pressure (3X) | |||
Accuracy | ±0.5%F.S, ±1.0%F.S | |||
Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | |||
Operating temperature | -40°C~125°C | |||
Compensation temperature | -10°C~70°C | |||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
Electrical performance | 2 wire system | 3 wire system | ||
Output signal | 4~20mA | 0~5V | 0~10V | |
Power supply | 10~30Vdc | 8~30Vdc | 12~30Vdc | |
Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
Insulation | >100M Ω@50V | |||
Electric strength | 500V@60 second | |||
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
Pressure durable | 2×106pressure circle @25°C | |||
Display range | -9999~99999@PS101A/C | |||
Electrical connection | Terminal + waterproof outlet; protection: IP65 | |||
Pressure port | M20×1.5, G1/4, G1/2, NPT1/4, NPT1/2 | |||
Pressure type | G, A | Response time: 10ms | ||
Certificate | Isolation explosion proof D, CE certificate | |||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
2. Electrical connection mode & structure:
Rear cover inscribed terminal definition | ||||
Mark | + | - | ||
Current | 24Vdc | 4~20mA |
| Shield cable |
Voltage | 24(+) | Vout | 24(-) | Shield cable |
Output signal | |
Two wire | 4~20mA |
Three wire | 0~5V, 0.5~4.5V, 1~5V,0~10V(dc) |
Instruction
A type: High temperature, isolation explosion proof, pressure transmitter with display, terminal line outlet.
B type: Isolation explosion proof pressure transmitter, terminal outlet
C type: Explosion-proof with display pressure transmitter, terminal line outlet
3. Feature
1). Accuracy:0.5%F.S
2). Resistance to pressure shock buffering joint
3). Multiple pressure range and signal output
4). Various of connector and pressure port
5). Non-polarity two wire current output
6). Intrinsically safe explosion proof, isolation explosion proof
7). CE certificate
8). The display can be configured
4. Apllications
1). Frequency conversion water supply
2). Compressed natural gases
3). Tap water four remote
4). Central air condition
5). Automatic detection system
6). Well real-time management
7). Pipe, tank pressure measurement
8). Boiler heating system
I. The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.
II. The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,
III. Help our customer cut the cost obviously.
