| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS |
| Price: | $80.00 - $290.00/sets |
|---|---|
| Packaging Details: | 1pc/box, many boxes per carton, or customised available. |
| Supply Ability: | 100 Set/Sets per Week liquid level pressure |
| Port Size: | M27*15 | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Feature: | Liquid Level Pressure | Port: | Shanghai Or Other |
| High Light: | Disconnect Liquid Pressure Sensor,Liquid Level Pressure Sensor M27*15 |
||
GX disconnect-type liquid level pressure sensor
1. Parameter
|
Spec. |
Value |
|||||
|
Pressure range |
0~1......200mH20 | |||||
|
Load pressure |
1.5times nominal value pressure (1.5X) |
|||||
|
Rupture pressure |
3times nominal value pressure (3X) |
|||||
|
Accuracy |
±0.1%F.S, ±0.25%F.S, ±0.5%F.S |
|||||
|
Stability |
Typical value 0.1%F.S, Max. value: 0.2%F.S |
|||||
|
Operating temperature |
-40°C~85°C |
|||||
|
Compensation temperature |
-10°C~70°C |
|||||
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
|||||
|
Electrical performance |
2 wire system |
3 wire system |
||||
|
Output signal |
4~20mA |
0~5V |
1~5V |
|
0~10V |
|
|
Power supply |
10~30Vdc |
6~24Vdc |
|
11~30Vdc |
||
|
Load pressure |
(U-10)/0.02(OMEGA) |
> 100kOMEGA |
||||
|
Insulation |
> 100M OMEGA @50V |
|||||
|
Electric strength |
500V@60 second |
|||||
|
Vibration/Impact |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
|||||
|
Electrical connection |
Waterproof cable outlet+ two rectangular ring+ sealing ring+ seal gum+ glue; IP68 |
|||||
|
Pressure port |
Submersible type, transmitting box wellhead connection dimension M27×1.5 |
|||||
|
Pressure type |
Gage |
Response time: 10ms |
||||
|
Certificate |
Intrinsically safe mode E, CE |
|||||
|
EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
|||||
2. Electronic interface and signals definition
|
Rear cover inside connection terminal definition |
||||
|
Mark |
+ |
- |
 |
|
|
Current |
24Vdc |
4~20mA |
|
Shielded |
|
Voltage |
24V(+) |
Vout |
24V(-) |
Shielded |
|
|
||||
|
|
||||
3. Feature
1). Split structure
2). 24diameter
3). The diffused silicon oil-filed core
4). Multiple pressure range and signal output
5). Intrinsically safe, explosion proof, CE certificate
4. Application
1). Hydrologic monitoring
2). Constant pressure water supply
3). Frequency conversion water supply
4). Tail dam water level
5). Liquid storage tank liquid level height
6). Water saving irrigation
7). Circulation fluid consumption monitoring
8). Small caliber tube level

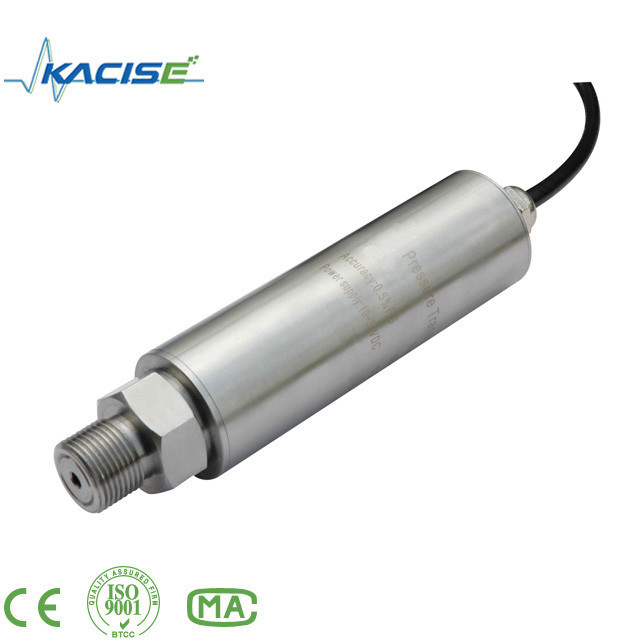

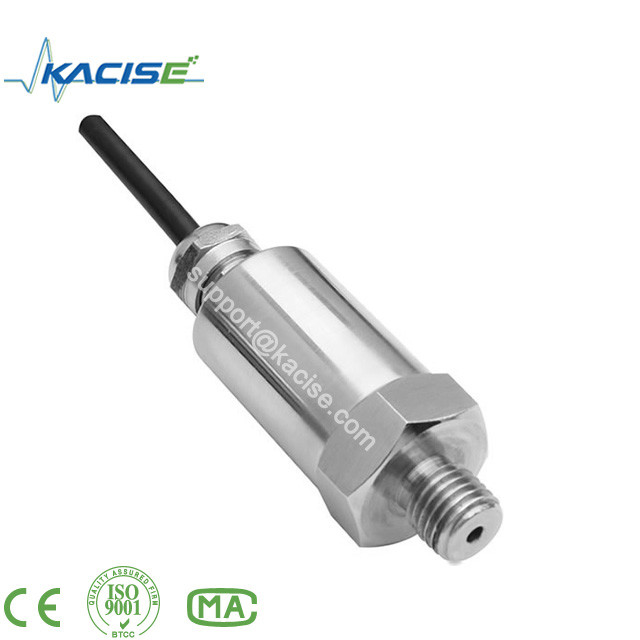

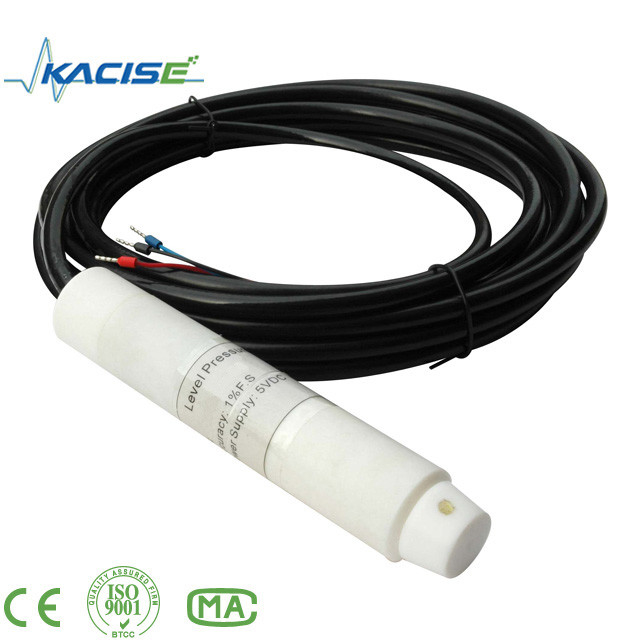

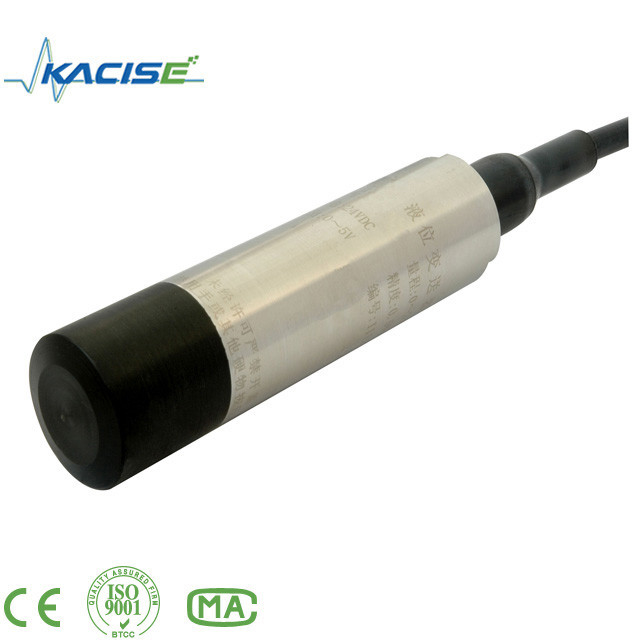

5. Product picture
|
|
