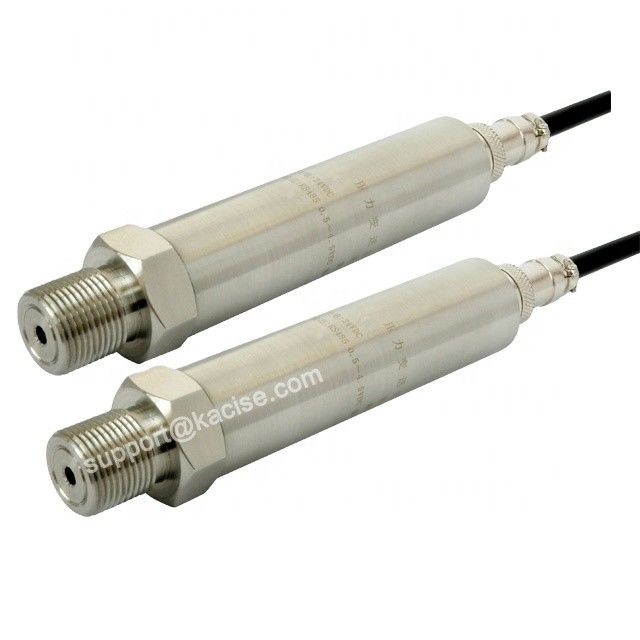

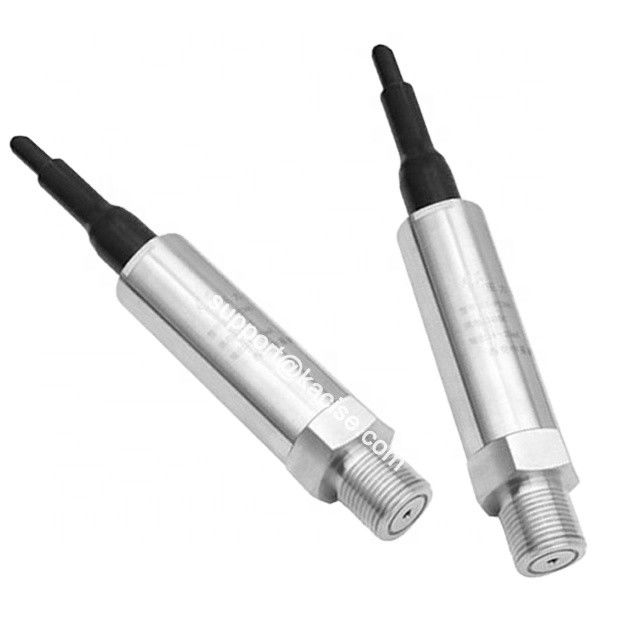

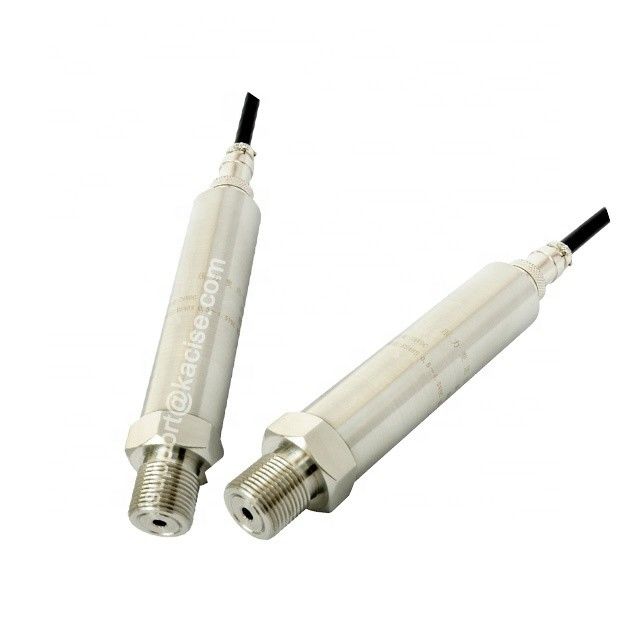

GXPS140 Excellent Long-Term Stability Micro-Structure Pressure Transducer with Wide Measurement Range

GXPS140 excellent long-term stability micro-structure pressure transducer

1. Parameter

2. Feature

• Self-developed of MEMS micro piezoresistive pressure silicon chip
• Micro-structure, small volume, light weight
• Excellent long-term stability
• Wide measurement range
• Strong output signal and anti-jamming capability
• Excellent static and dynamic performance

3. Outline

Air dynamics research

Engine experiment

Wind tunnel experiment

Fluid mechanics

GXPS140 micro pressure transducer uses micromachining technology to integrate piezoresis-sensitive element, and employes delicate micro package. Diameter of the transducer is Φ3mm to Φ12mm, length is not more than 25mm. The size and dimension could be designed to meet customer’s special needs. Superiorities are: micro-shaped, high output, high tempreture, excellent dynamic and static character, reliable stability. Application fields: air dynamics research, aircraft and engine experiment, wind tunnel experiment, fluid mechanics and hydraulic experiment, hydroturbine and underwater ordnance experiment, biomedical application, chemical and nuclear explotion shock wave and so on.

4. Connection

5. Size

6. Guide
