| Place of Origin: | Shaanxi, China |
| Brand Name: | GXPSSW support OEM |
| Model Number: | GXPS623 |
| Price: | $60.00 - $180.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Max. Current: | 24mA | Max. Voltage: | 10V |
|---|---|---|---|
| Max. Working Pressure: | 16MPa | Type: | 316L Stainless Steel Adjustable Pressure Control Switch |
| Feature: | Air Pump Pressure Switch | Port: | Shanghai Or Other |
| High Light: | 316L Stainless Steel Pump Pressure Switch,24mA Air Pump Pressure Switch,Electric Air Pump Pressure Switch 10V |
||
2014 hot sale electric air pump pressure switch
electric pressure switch can be used for the gas and liquid medium
Adjustable controller, adjustable range is 0.02~10MPa
Range Table of air pump pressure switch
|
Range |
Switch Value |
Switch frequency |
Sensor material |
|
0.0-0.61MPa |
0.04MPa |
20times/min. |
304 |
|
0.02-1MPa |
0.025MPa |
20times/min. |
304 |
|
0.05-2.5MPa |
0.25MPa |
20times/min. |
304 |
|
0.3-6MPa |
0.3MPa |
20times/min. |
304 |
|
1-10MPa |
0.3MPa |
20times/min. |
304 |
Setting Value Adjustment of air pump pressure switch
1). Use the wrench to clamp the six square plane of controller, to screw the pressure interface into pressure interface of the pressure check table.
2). Open the cover plate, to connect the one end of cable to the wiring terminal 1-3, another end connected with universal meter.
3). To add the pressure value into necessary value, adjust the screw with counterclockwise rotation. Make the setting value from large to small, till the switch contacts switch the value in the required pressure value. And change the pressure value back and forth on required pressure value, so that to check the switch value of contacts is the needed pressure value.
4). Closed the cover plate
Single pole double throw micro switch process.
Connect terminal 1-3, to put through until pressure raised to upper switching value.
Connect terminal 1-2, to switch off until pressure raised to upper switching value
Electronic interface and signals definition

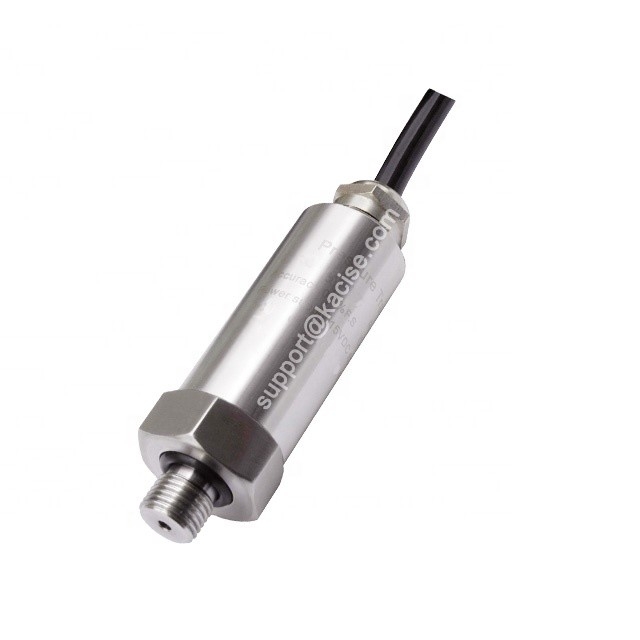

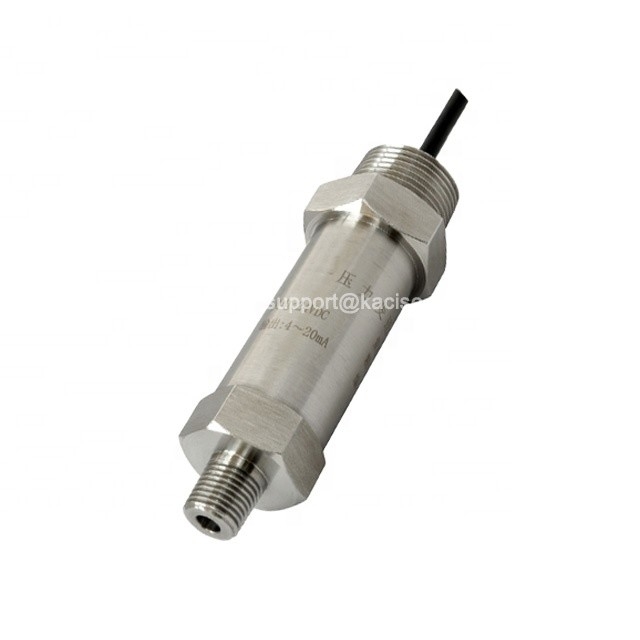

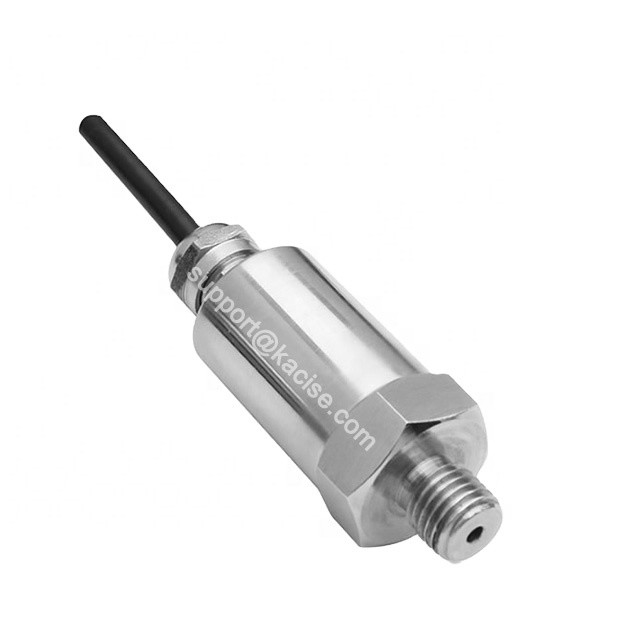

Product picture of air pump pressure switch
