| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KUFH Series |
| Price: | $80.00 - $200.00/pieces |
|---|---|
| Packaging Details: | Carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month ultrasonic flow meter |
| Accuracy: | 1.0% | Output Signal: | Pulse / 4~20mA / RS232 |
|---|---|---|---|
| Power Supply: | 3*1.2V Battery Or AC90 ~260V Adapter | Medium: | Water, Milk, Oil Or Other Liquid |
| Installation Type: | Inline Insertion Clamp On | Port: | Shanghai Or Other |

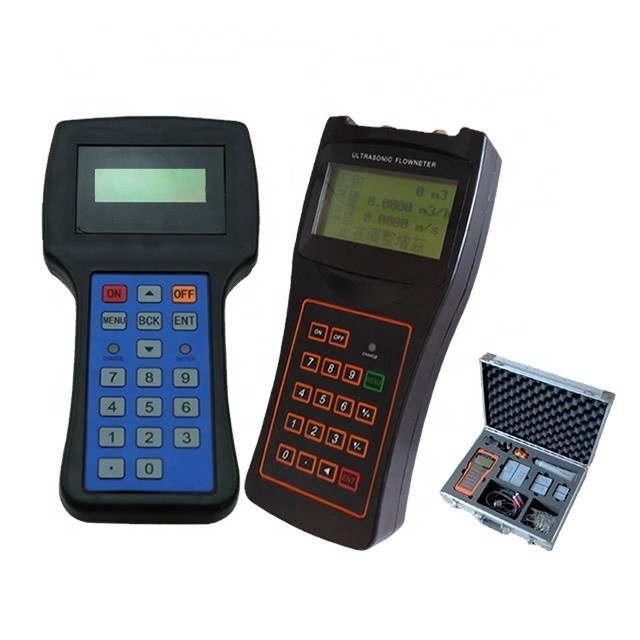

Portable handheld ultrasonic oil milk fuel flow meter
Description of ultrasonic flow meter
Ultrasonic flow meter realizes the non-contact measurement. It is ideal for flow surveys and closed-pipe application where non-invasive measurement of liquids is required.
Temperature and heat can also be measured by connecting clamp on temperature transducer. Widely be used in water supply, heat supply, chemical industry, machinery and energy resources.
Features of portable handheld ultrasonic flow meter
Applications of ultrasonic flow meter
Portable ultrasonic oil fuel flow meter
|
Category |
Parameter |
|
|
Host parameters |
Principle |
Transit time measure, 4 bytes of IEEE754 floating point arithmetic |
|
Accuracy |
1.0 % |
|
|
Display |
Support English, Italian, Chinese, etc. |
|
|
Output |
1 channel 4-20mA current output 1 channel pulse width is adjustable between 6~1000ms, 200ms(default) 1channel relay output |
|
|
Data port |
1 channel isolated RS232 serial port, by which the firmware can be upgraded from PC. |
|
|
Pipe request |
Tube material |
Steel, stainless steel, cast iron, copper, aluminum, FRP, PVC, etc. |
|
Pipe diameter |
15~6000mm |
|
|
Installation |
If there is a bend, the sensor should be installed at a distance of 10D at least from the upstream bend, 5D at least from the downstream bend, and should be installed at a distance of 30D at least from the pumping hole. |
|
|
Medium |
Description |
Clean water, sea water, industry water. Corrosive acid liquid and alkaline liquid, alcohol, beer, etc. |
|
Temperature |
-30°C~160°C |
|
|
Turbidity |
10000ppm not so much baubles |
|
|
Flow speed |
0 ~±10m/s |
|
|
Working ambient |
Temperature |
Host: -20~60°C Sensor: -30~160°C |
|
Humidity |
Host: 85% Sensor: IP67 |
|
|
Electric source |
3 built-in 1.2 capacity rechargeable Ni-MH battery 2000mAH, each is full of electricity sustainable work more than 10 hours, the use of AC90~ 260V power adapter, can realize continuous measurement |
|
|
Power dissipation |
1.5W |
|
Handheld ultrasonic milk flow meter
|
Category |
Performance |
|
|
Host parameters |
Principle |
Transit time measure, 4 bytes of IEEE754 floating point arithmetic |
|
Accuracy |
1 % |
|
|
Display |
320X240 pixel LCD, 4 x 8 or 4 x 16 Character matrix backlight LCD, support English, Italian, Chinese etc. |
|
|
Output |
1 channel pulse output OCT (pulse width is adjustable |
|
|
Data port |
1 channel isolated RS232 serial port. |
|
|
Pipe request |
Tube material |
Steel, stainless steel, copper, aluminum, FRP, PVC, etc. |
|
Pipe diameter |
15~6000mm |
|
|
Installation |
If there is a bend, the sensor should be installed at a distance of 10D at least from the upstream bend, 5D at least from the downstream bend, and should be installed at a distance of 30D at least from the pumping hole. |
|
|
Medium |
Description |
Clean water, sea water, industry water. Corrosive acid liquid and alkaline liquid, alcohol, beer, etc. |
|
Temperature |
-30°C~160°C
|
|
|
Turbidity |
10000ppm not so much baubles |
|
|
Flow speed |
0 ~±10m/s |
|
|
Working ambient |
Temperature |
Host: -20~60°C, Sensor:-30~160°C |
|
Humidity |
Host: 85%, Sensor: IP67 |
|
|
Electric source |
3 built-in 1.2V capacity rechargeable Ni-MH battery 2000mAH, each is full of electricity sustainable work more than 12 hours, the use of AC90 ~260V power adapter, can realize continuous measurement |
|
|
Power dissipation |
1.5W |
|
|
Shell material |
Inflaming retarding ABS |
|
|
Main engine weight |
390g |
|

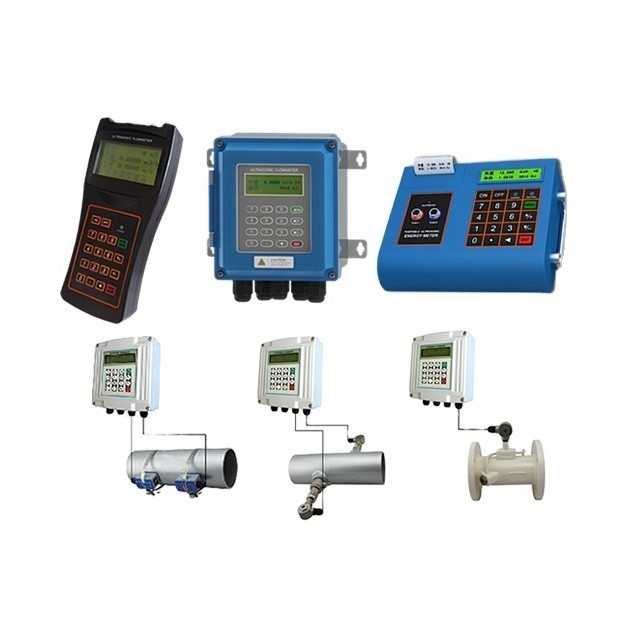

Smart ultrasonic flow meter
Ultrasonic flow module/RTU
Separated ultrasonic flow meter
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
