GPS GPRS Diesel Fuel Tank Level Sensor with 0.5%F.S Accuracy IP65 Protection and Timing Work Time 5-1000 Minutes

The “Liquid height measuring system in GPRS communicate mode” include “Liquid height measuring terminal equipment in GPRS communicate mode”, “Server Management Software” and “Configuration Line”. It is used for timing measure liquid height value, temperature value, longitude and latitude data, date and time information and show these value in the “Server Management Software”.

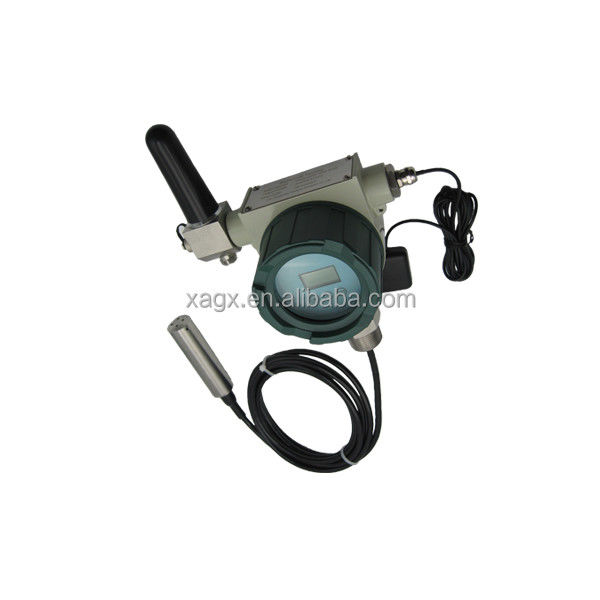

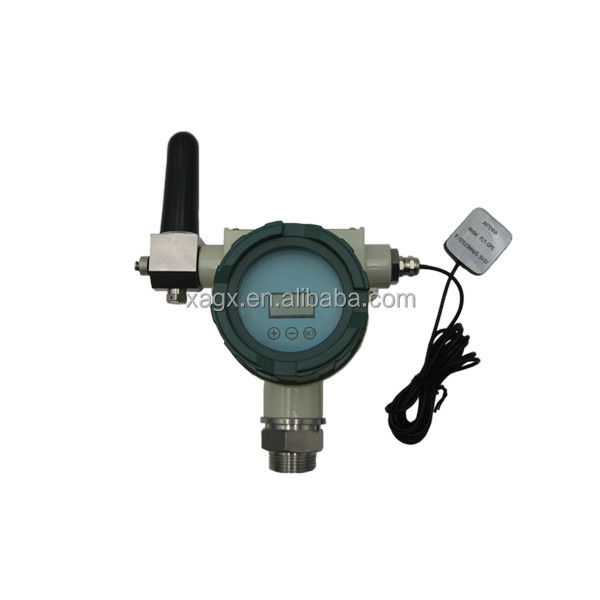

GXPS609(GPRS) terminal structure drawing: as picture one

The back of GXPS609(GPRS) terminal: as picture two

1) “Terminal” battery use time limit: for example, use number one battery “ER34615M”, its capacity is 14.5AH, the “System” work frequency is work once per hour: The GXPS609 (GPS) terminal can work about 120 days.
2) Battery model select: recommend use number one battery “ER34615M”. If user want select battery by self, please according to the battery standard as following. battery voltage: 3.0VDC~3.6VDC; max continue output current: more than 0.5A; pulse output current capacity: more than 1A.
3) Power supply use illuminate: the “Terminal” can use battery or external power supply. See the terminal structure drawing, the position of external power supply in the “External Electrical Interface”, in the interface, “1” is anode, “2” is cathode.

• Sensor can be customized by your special request, We can supply technical consulting service for your user.
• The quality principle: Quality is the best sales
• Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
• Shipping:
  1. All parts will be shipped out within 1 - 3 working days after confirm the payment
  2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
  3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
• After-sales service
  We can offer good technical support and good warranty for you after service as professional manufacturer.
• Warranty: One year
  During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
