High performance handheld ultrasonic water flowmeter flow meter

High performance handheld ultrasonic water flowmeter flow meter

Place of Origin:

Shaanxi, China

Brand Name:

Kacise

Certification:

CE

Model Number:

KUF2000 Series

Contact Us
Request A Quote
Product Details
Accuracy:
Up To 1.0%
Power Supply:
24VDC, 3*1.2V Battery Or AC90 ~260V Power Adapter
Output Signal:
Pulse / 4~20mA / RS485 / RS232 /OCT
Pipe Diameter:
15mm~6000mm
Measuring Medium:
Water, Corrosive Acid Liquid And Alkaline Liquid, Alcohol, Beer, Etc.
Temperature:
Customized Available
Protection Grade:
IP68
Port:
Shanghai Or Other
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$199.00 - $390.00/pieces
Packaging Details
Carton or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3000 Piece/Pieces per Month ultrasonic water flow meter
Product Description

High performance handheld ultrasonic water flowmeter flow meter



  Introduction



     Ultrasonic flow meter is ideal for flow surveys and closed pipe application where non-invasive measurement of liquids is required. The advantages of high measurement accuracy, good consistency, battery power supply, easy operation and portability, make this meter the smallest and lightest flowmeter in domestic and a significant portable ultrasonic flow meter. It is suitable for water, sea water, waste water, liquid alcohol, beer, gas, oil, etc. medium measurement.

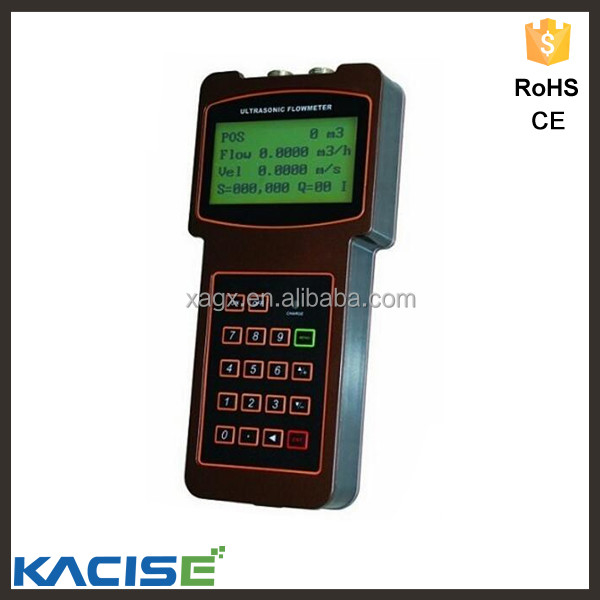

High performance handheld ultrasonic water flowmeter flow meter 0

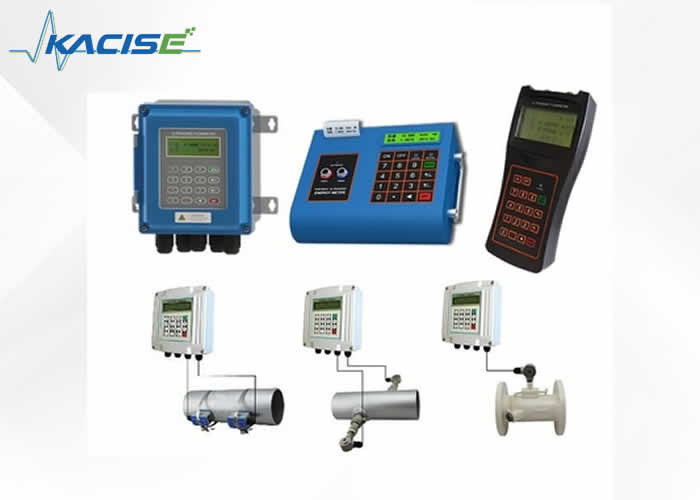

High performance handheld ultrasonic water flowmeter flow meter 1

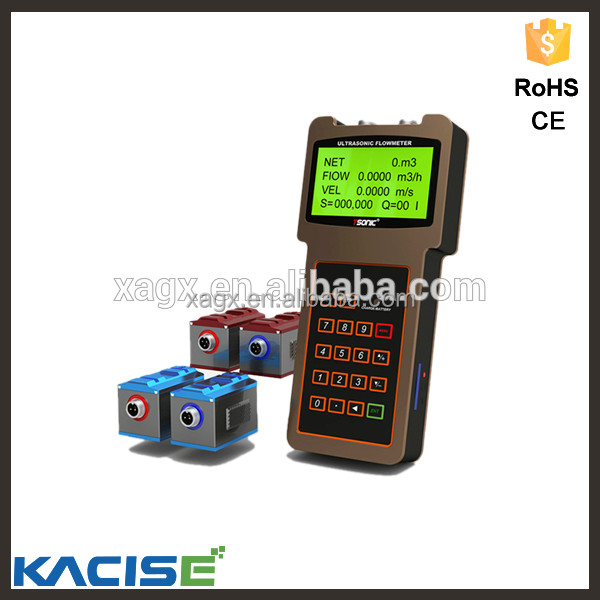

High performance handheld ultrasonic water flowmeter flow meter 2

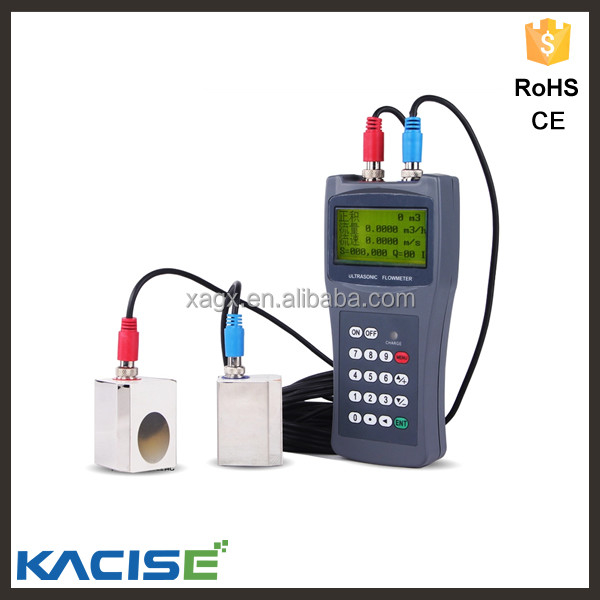

High performance handheld ultrasonic water flowmeter flow meter 3

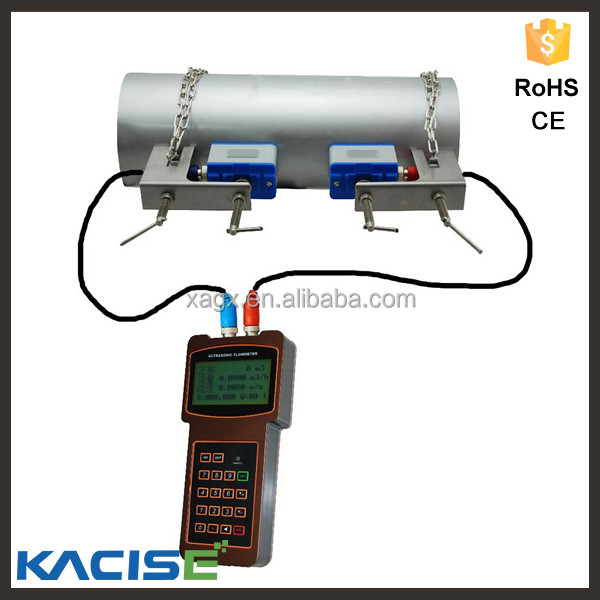

High performance handheld ultrasonic water flowmeter flow meter 4

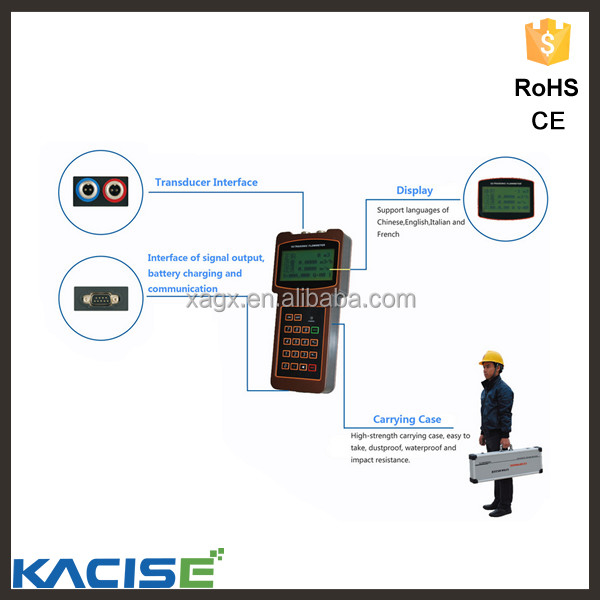

High performance handheld ultrasonic water flowmeter flow meter 5







Feature

  • High accuracy:up to 1%
  • Wide measuring range:Several types transducer for selection, pipe size from Dn15mm to Dn6000mm
  • High reliability:Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability
  • Strong anti-interference:Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower,high voltage line etc
  • Powerful functions:1 way 4-20mA, as a flow sensor or quantity of heat sensor; 2 way OCT output, as a switch forflow/ quantity of heat; 3 way 4-20mA output, as s collector for data; 2 way 3 wires is PT100 signaloutput of resistors, as a watch for quantity of heat
  • The transmittal is far, and it contact net quickly:RS485 support connect wireless net, contact the GPRS485 can realize wireless transmittal
  • Support heat Measurement:Connect the temperature transducer ,can finish the heat/energy measureme





Parts

Parameters in detail















Host part

Theory

Ultrasonic time gap

Accuracy

±1%

Option method

4-keyboard support magnetic rod operation





Signal output

1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm

1 channel OCT pulse output (default pulse width is 200ms,  and can  be modify  between 6 to 1000ms)

1 channel relay output (3A@220V)



Signal input

3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc.

1 channel mV input use to pt100 for calorimeter

Digital port

RS485 support Mod-bus protocol and support firmware update

Cable

Special cable for RS485 the range up to 1000m





Suit pipe

Pipe material

Steel, cast iron cement, copper, PVC, Aluminum, glass, etc

Inner DN

15~6000mm

Sensor position

It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe)







Suit flow

Media

Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc

Temperature

-30~160

Turbidity

10000pm not so much baubles

Flow speed

0~±10m/s

Environment

temperature

Host: -20~60℃; Sensor: -30~160

Humidity

Host: 85%RH; Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V( optional)

Consumption

1.5W





FAQ



1.Are you a trade company or a manufacturer?

A: We are an ISO,CE,  approved manufacturer specialized in flowmeter isolator Products.

2.What is your MOQ?

A: Mix 2 Size in 20FT, and 4 Size in 40HQ container. Support LCL

3.What is your delivery date?

A: The delivery date is about 5-10 days after receipt of payment.

4.What is your payment terms?

A: T/T,D/A,D/P,L/C,Western union,Paypal,Moneygram.



Our Service



Sensor can be customized by your special request, We can supply technical consulting service for your user.

The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow


Shipping:
1. All parts will be shipped out within 5-10 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.



After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.



Warranty: One year

During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
