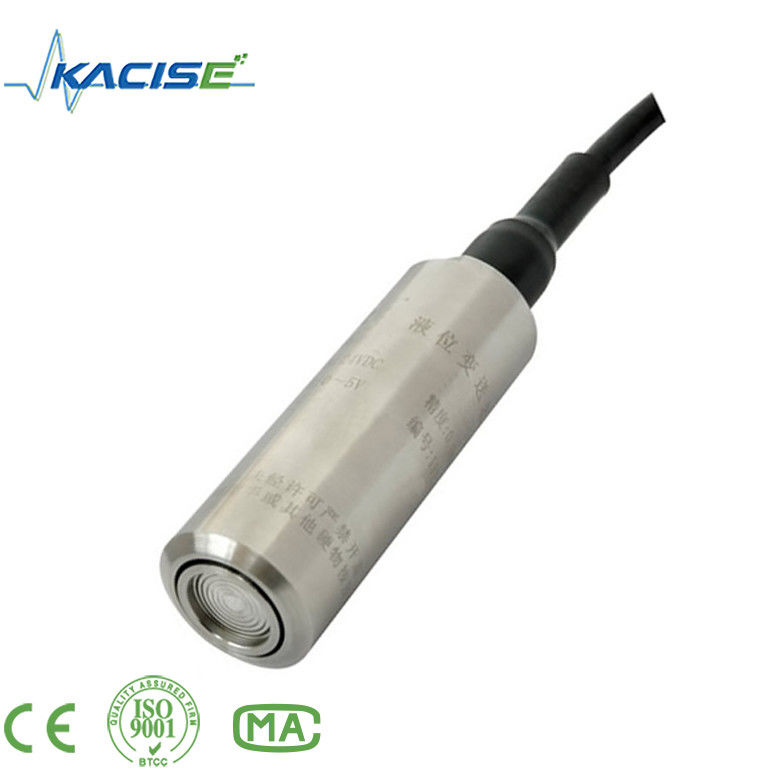

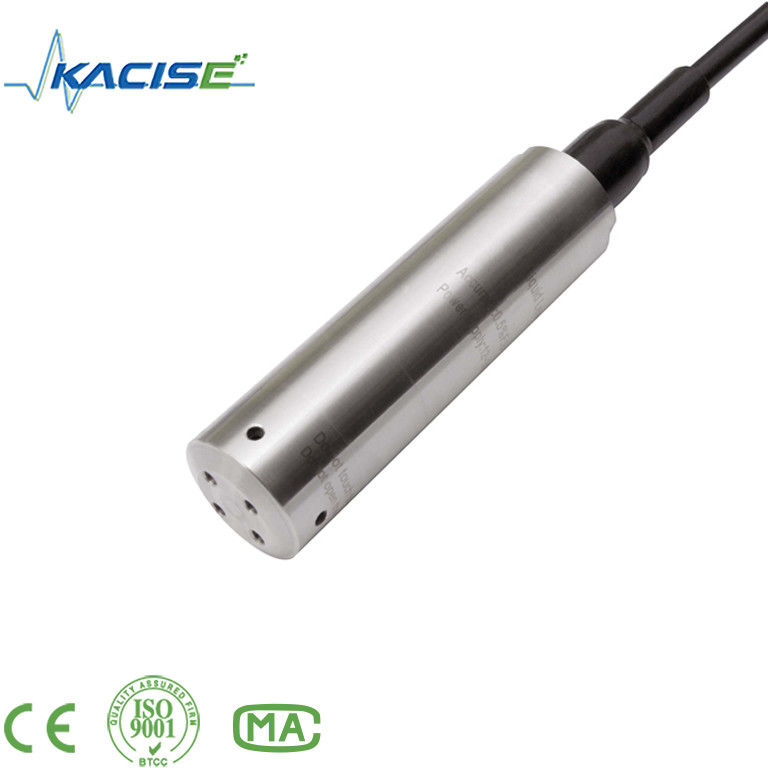

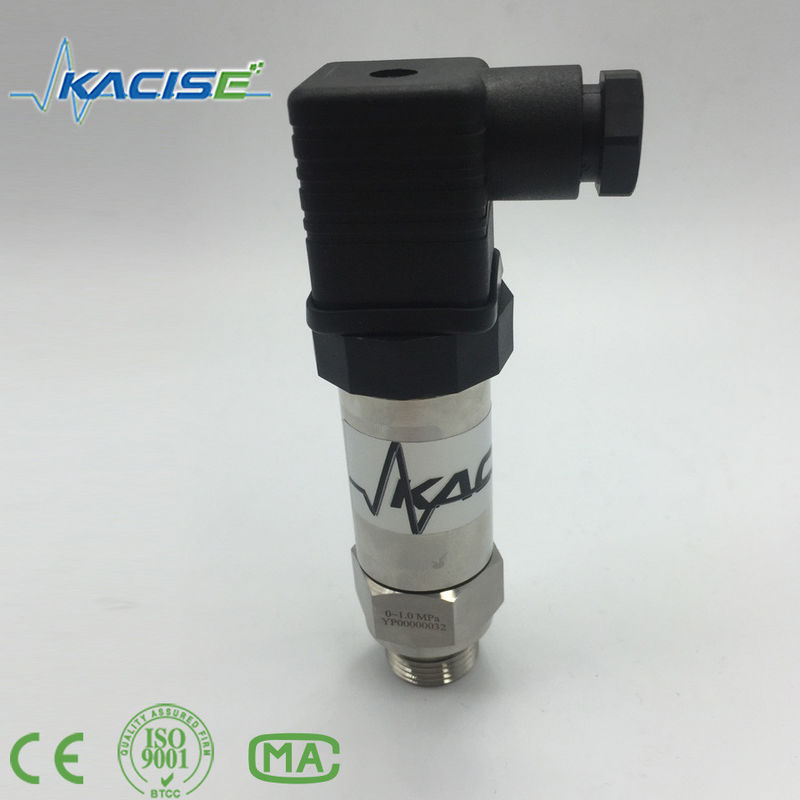

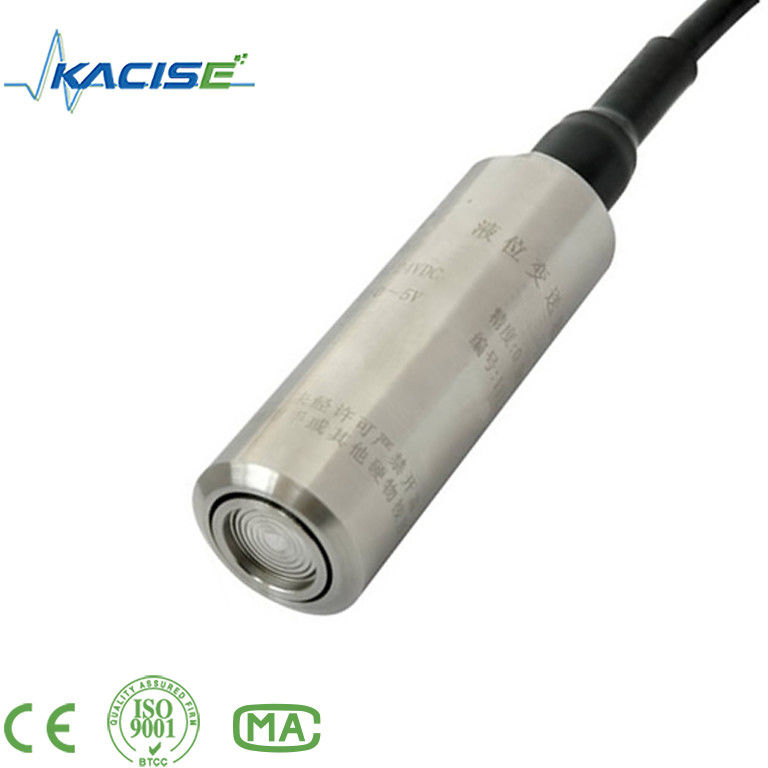

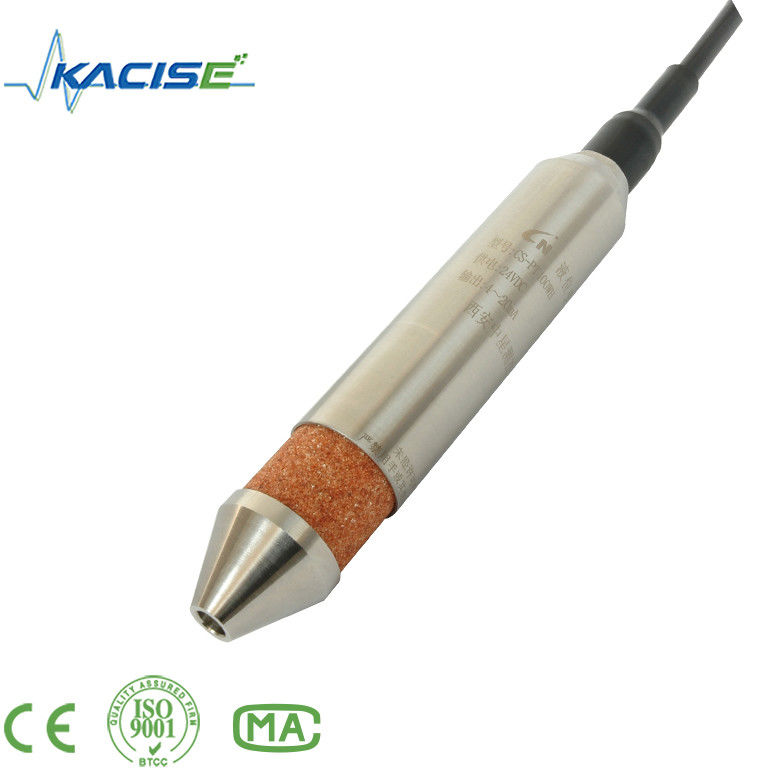

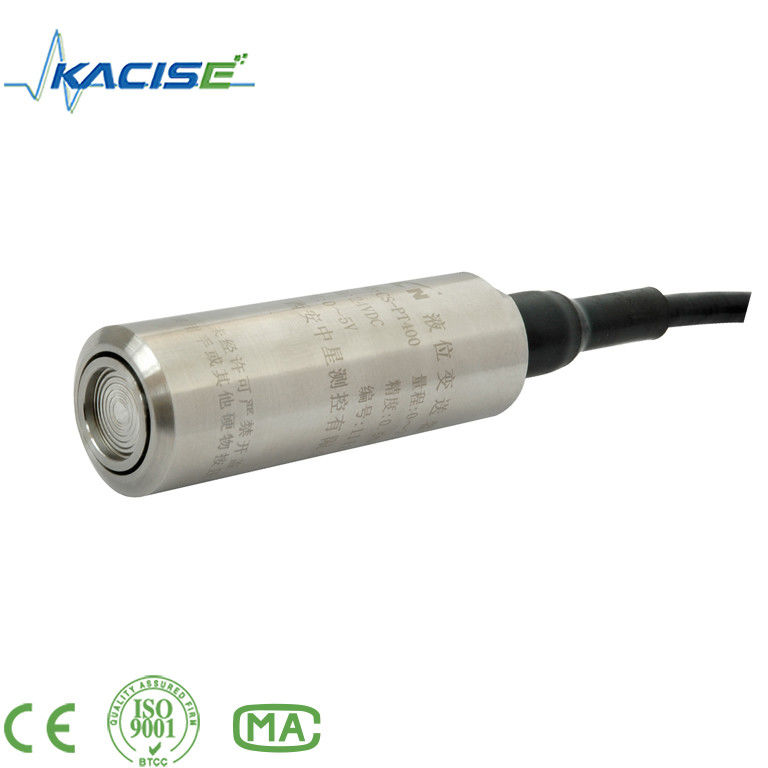

Economic high accuracy silicon piezoresistive pressure sensor
Features of silicon pressure sensor
- High Accuracy and stability
- Φ19 mm standard Dimension
- Pressure port can be customized
- Wide measurement Range:0~10KPa~100Mpa
Applications of piezoresistive pressure sensor
- Pressure transmitter
- Petroleum exploitation
- Process control system
- Water supply, warm supply of town
- Aviation and navigation inspection
- Measurement pressure of gas and liquid
Specifications of pressure sensor
|
0~10,35,70,100,200,350,700,1000,2000,3500KPa
0~7,10,20,35,60,100MPa
|
|
Typical
|
Max.
|
Units
|
|
±0.15(0-2MPa)
±0.2(3.5MPa-60MPa)
|
±0.3
|
%F.S
|
|
0.02
|
0.05
|
%F.S
|
|
0±1
|
0±2
|
mV
|
|
50±10
|
50±30
|
mV
|
|
100±10
|
100±30
|
mV
|
|
±1
|
±2
|
%F.S
|
|
±0.5
|
±1
|
%F.S
|
|
±1
|
±2
|
%F.S
|
|
±0.5
|
±1
|
%F.S
|
|
3X rated range or 120MPa,whichever is less
|
------
|
|
-20~80
|
°C
|
|
0~70, 0~50(range≤20KPa)
|
°C
|
|
-40~125
|
°C
|
Note: Above parameter under condition: Supply 1.5mA, temperature 25°C.
Electrical Data
Supply :1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage: 500VAC between the housing and electrical connection will not damage
Medium compatible: liquid, gas compatible with 316L Stainless steel
Dimension of silicon piezoresistive pressure sensor
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
