Name: High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUF2000 Series
Price: 294.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids

ultrasonic milk flow meter

high performance flowmeter

milk flow measurement device

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUF2000 Series

Request A Quote

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids

Product Details

Accuracy:

Up To 1.0%

Power Supply:

24VDC, 3*1.2V Battery Or AC90 ~260V Power Adapter

Output Signal:

Pulse / 4~20mA / RS485 / RS232 /OCT

Pipe Diameter:

15mm~6000mm

Measuring Medium:

Water, Corrosive Acid Liquid And Alkaline Liquid, Alcohol, Beer, Etc.

Temperature:

Customized Available

Protection Grade:

IP68

Applications:

Water Supply,heating Supply

Product Naem:

Milk Flow Meter

Keywords:

Milk Flow Meter

Port:

Shanghai Or Other

Highlight:

ultrasonic milk flow meter

high performance flowmeter

milk flow measurement device

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$199.00 - $390.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

316 Stainless Steel Capacitive Level Sensor with IP67 Protection and HART Communication for Harsh Environments

Get Best Price

80GHz Radar Level Gauge for High Temperature and Corrosive Tanks with FMCW Technology

Get Best Price

KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos

Get Best Price

26GHz Frequency Radar Level Meter with Non-Contact Measurement and IP67 Protection for Liquid Level Monitoring

Get Best Price

Contact Now

Product Description

High performance ultrasonic water flow meter ultrasonic milk flowmeter/flow meter

Product Description

Description of ultrasonic milk flowmeter/flow meter

Ultrasonic flow meter is ideal for flow surveys and closed pipe application where non-invasive measurement of liquids is required. The advantages of high measurement accuracy, good consistency, battery power supply, easy operation and portability, make this meter the smallest and lightest flowmeter in domestic and a significant portable ultrasonic flow meter.

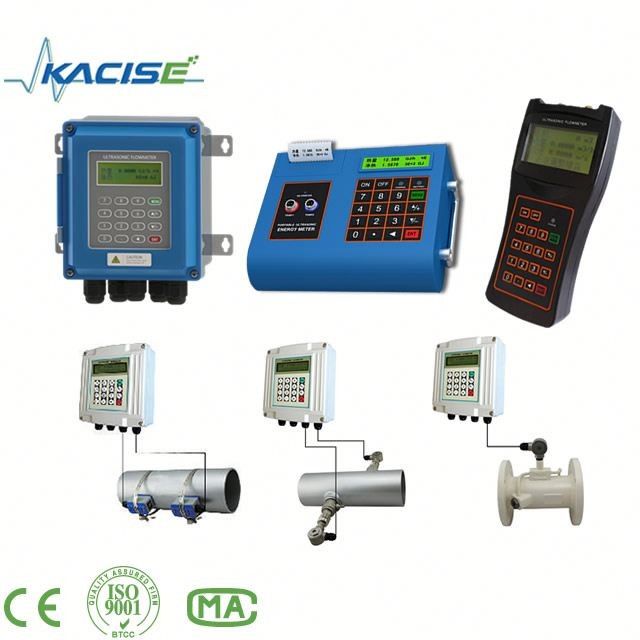

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 1

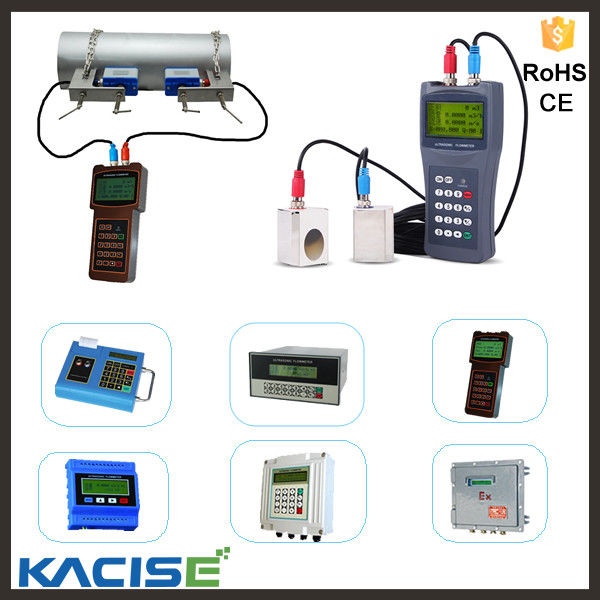

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 2

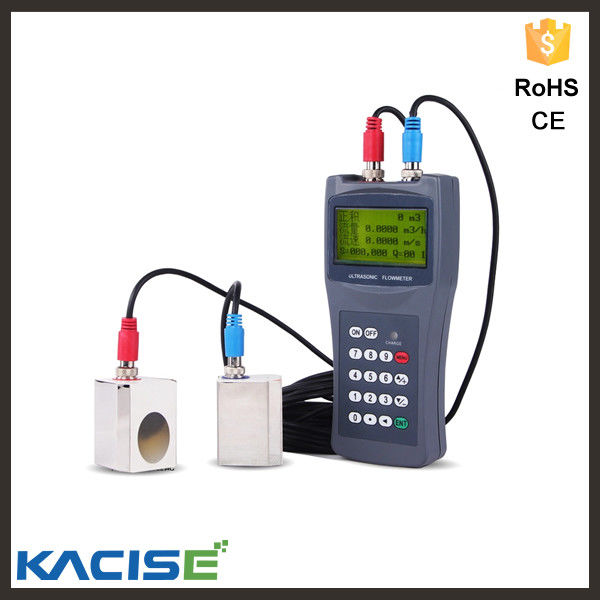

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 3

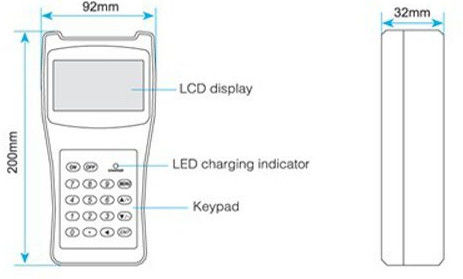

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 4

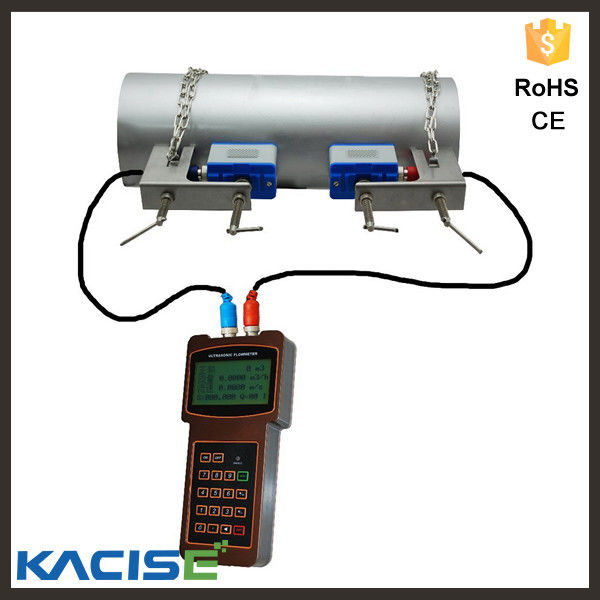

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 5

Features

Features of ultrasonic milk flowmeter/flow meter

Built-in printer
Large LCD display
Accuracy up to 1.0%
Built-in data logger
Wide measuring range
Non-contact measurement
Multi-signal input &output
Easy to used for calorimeter
Power supply built-in battery or adapter
Remote transmission and net work transmission
Multi language menu UK, Italy, and other languages

Specifications

GXUMF2000 series smart ultrasonic flow meter

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 6

Parts	Detail
Host part	Theory	Ultrasonic time gap
	Accuracy	±1.0%
	Option method	4-keyboard support magnetic
	Signal output	1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm
		1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms)
		1 channel relay output (3A@220V)
	Signal input	3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc.
	Signal input	1 channel mV input use to pt100 for calorimeter
	Digital port	RS485 support Mod-bus protocol and support firmware update
Cable	Special cable for RS485 the range up to 1000m
Suit pipe	Pipe material	Steel, cast iron cement, copper, PVC, Aluminum, glass, etc.
	Dimension	15~6000mm
	Sensor position	It is better the sensor fix at the position of at least 10D far away to stream, or 5D far away to stream, at least 20D far away from the pump outlet.
Suit flow	Medium	Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc.
	Temperature	-30~160°C
	Turbidity	10000pm not so much baubles
	Flow speed	0~±10m/s
Environment	Temperature	Host: -20~60°C; Sensor: -30~160°C
Environment	Humidity	Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply	DC8~36V or AC85~265V(optional)
Consumption	1.5W

GXUMS2000 series separated type ultrasonic flow meter

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 7

Item	Performance and Parameter
Host part	Principle	Ultrasonic time gap
	Accuracy	±1%
	Display	2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:17018056cm
	Signal output	1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
		1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)
		1 way Relay output
	Signal input	3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level
	Signal input	Connect the temperature transducer Pt100, can finish the heat/energy measurement
	Data interface	Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.
Cable	Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m.
Pipe Condition	Pipe material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
	Straight length pipe	Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Medium	Type of Liquid	Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids
	Temperature	-30~160°C
	Turbidity	10000pm not so much baubles
	Flow speed	0~±10m/s
Environment	Temperature	Host: -20~60°C; Sensor: -30~160°C
Environment	Humidity	Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply	DC8~36V or AC85~265V( optional)
Consumption	1.5W

GXUMM2000 series ultrasonic flow module/RTU

High Performance Ultrasonic Flow Meter with 1.0% Accuracy IP68 Protection and Non-contact Measurement for Milk and Liquids 8

Parts	Parameters in detail
Host part	Theory	Ultrasonic time gap
	Accuracy	±1%
	Option method	4-keyboard support magnetic rod operation
	Signal output	1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm
		1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms)
		1 channel relay output (3A@220V)
	Signal input	3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc.
	Signal input	1 channel mV input use to pt100 for calorimeter
	Digital port	RS485 support Mod-bus protocol and support firmware update
Cable	Special cable for RS485 the range up to 1000m
Suit pipe	Pipe material	Steel, cast iron cement, copper, PVC, Aluminum, glass, etc
	Inner DN	15~6000mm
	Sensor position	It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe)
Suit flow	Media	Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc
	Temperature	-30~160°C
	Turbidity	10000pm not so much baubles
	Flow speed	0~±10m/s
Environment	temperature	Host: -20~60°C; Sensor: -30~160°C
Environment	Humidity	Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply	DC8~36V or AC85~265V( optional)
Consumption	1.5W
