Online Condition Monitoring System with 5kV Isolation Voltage for Real-Time Detection of 100% Metal Particles in Oil

Mechanical equipment fault occurs are mostly caused due to mechanical wear, wear particles exist in a large amount of information about wear condition, the monitoring can be used to judge the wear state or judgment occurred in the form of wear and tear. When the damage is going to happen, the number of metal particles in the lubricating oil will increase dramatically. Diameter of the metal particles will increase, according to the cumulative total number of detected metal particles, can be given key indicators: whether there is a fault, when it should be shut down, you can also run long, to prevent secondary damage, effectively reduce repair costs, reduce the cut-off time interval, so that the loss caused by interruption is minimized.

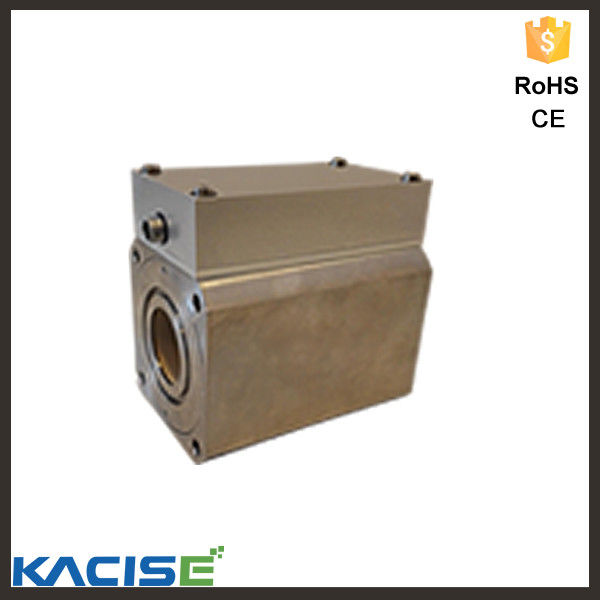

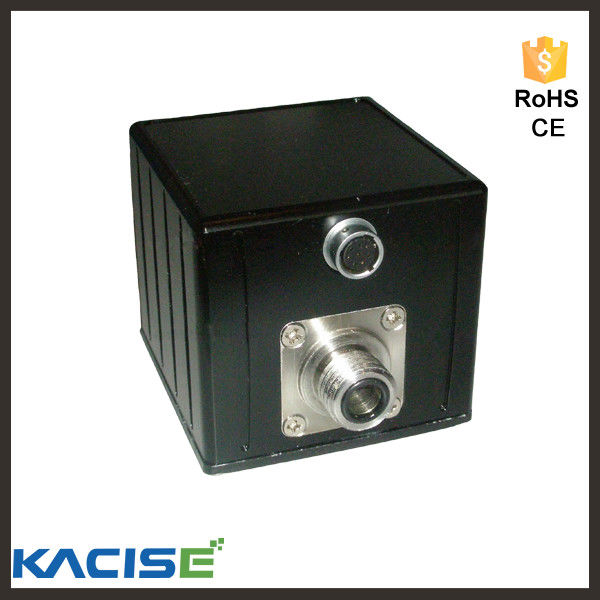

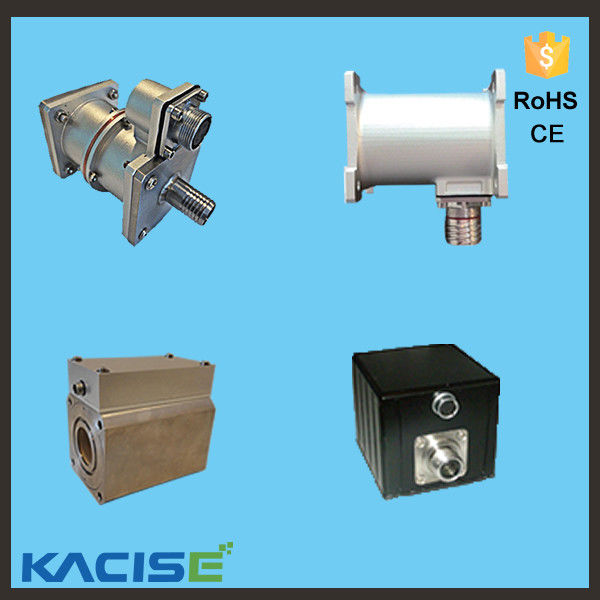

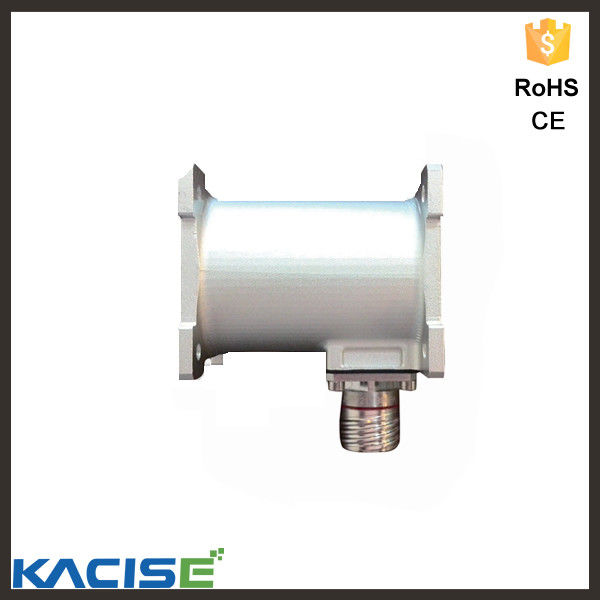

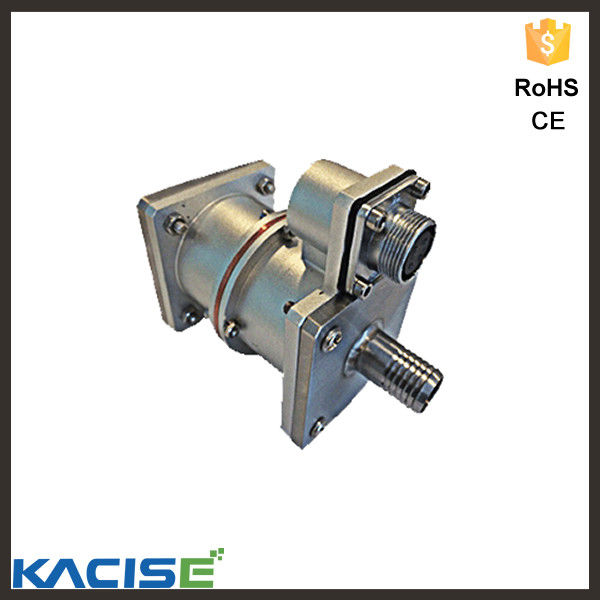

Metal CHECK sensor is a real time monitoring system of oil particles, inline of the oil pipeline, and 100% of the metal particles detected by the system, combined with the use of monitoring software, Metal CHECK oil pipeline may wear metal particles number of accumulating statistics, and the number of particles per unit of time by the trend analysis. Metal CHECK industrial, marine and aerospace has been widely used. The sensor uses electromagnetic induction to detect the number of the lubrication system of the metal particles, as determined extent of bearing or gearbox damage by data. The sensor must be installed before the filter, the lowest point in the return line position. Each detected a metal particle, particle sensors automatically accumulates count, and regularly sends up position this time period to detect the total number of particles.

• Easy to install
• Robust design
• Full flow design
• No moving parts
• Online, real-time detection
• 5KV high isolation voltage signal line
• Intuitive results of the monitoring data
• Transmission distance up to a maximum 1km
• 100% detection of ferrous and non-ferrous metal particles

• Full flow design
• Reliable structure design
• Easy to install, no moving parts
• Transmission distance up to 1000 meters
• On line, real-time detection of metal particles
• Signal line tolerance 5KV high isolation voltage
• 100% detection of ferrous and non-ferrous metal particles
• Multichannel detection of particles with different particle sizes

• Full flow real-time monitoring
• Monitoring the diversity of faults
• Small in size, light in weight, easy to install
• Data transmission reliable, distance of up to 1000 meters
• Automatic storage, graphic display monitoring terminal data
• In the range of sensitivity, 100% detect ferromagnetic and non-ferromagnetic metal particles

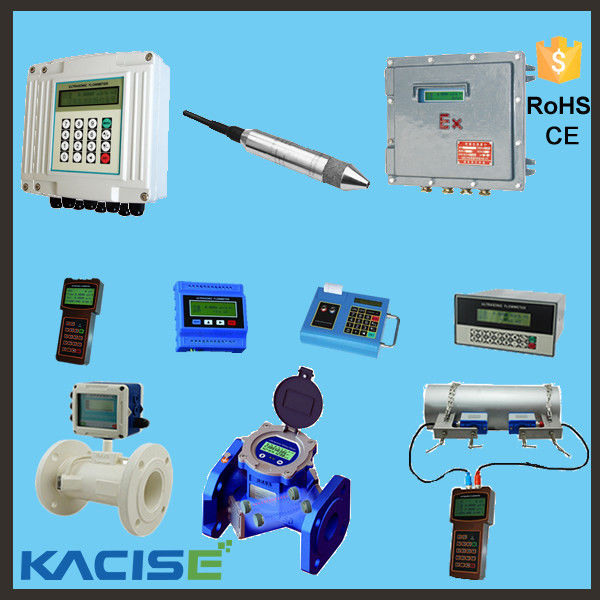

GXUMH2000 series Ultrasonic Handheld flow meter

GXUMP2000 series Portable ultrasonic flow meter

Sensor can be customized by your special request, We can supply technical consulting service for your user.
