Place of Origin:
Shaanxi, China
Brand Name:
kacise
Certification:
CE
Model Number:

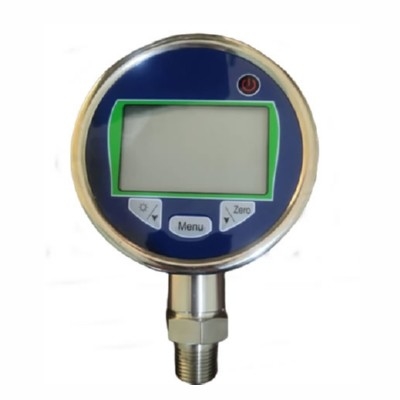

KPG201C Digital Pressure Gauge With Data Logger
1. Description
KPG201C precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument is delicate and compact, easy to use.
2. Features
• Wide temperature compensation, ultra-low power consumption.
• Unit changing, peak valley and other functions fully preserved.
• Multi additional setting and functions available, user can set by environment and habits.
• IP grade ≧ IP66, higher than the industry level.
3. Specification
| Item | Spec. |
| Pressure range | -100kpa~250pa~5kpa~250Mpa |
| Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Display | 5-digit dynamic display + percentage indicator |
| Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Overload pressure | 150% FS |
| Destruction pressure | 200% FS |
| Power supply | 4.2V rechargeable lithium battery |
| Temperature | -20 ℃ ~ 60 ℃ |
| Humidity | ≤ 85% RH |
| Calibration environment | 20 ℃ ± 2 ℃ |
| Explosion-proof level | ExiaIICT4 optional |
| IP Grade | IP66 |
| Data record limit | 11000 |
| Process connection | M20 × 1.5 (male), special thread customizable |
| Dimensions | height 170mm, width 110mm, thickness 50mm |
Our Services
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are af ed by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2. Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3. Having advanced e-commerce capabilities |
| 4. Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ
1. Why choose us?
Excellent material selection
CE & ROHS certificate assure you our good quality
Best services about the products
OEM and customize are available
2. How can I get a quotation/ price
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please call us or tell us your email so that we will reply your inquiry promptly.
Send your inquiry directly to us
