economical digital plastic ultrasonic alcohol flowmeter with accuracy up to 1.0%

economical digital plastic ultrasonic alcohol flowmeter

conservancy, metallurgy, chemical industry, machinery, energy indurstry.
both sensors and the host can be installed at the pipe. also can be used as calorimeter

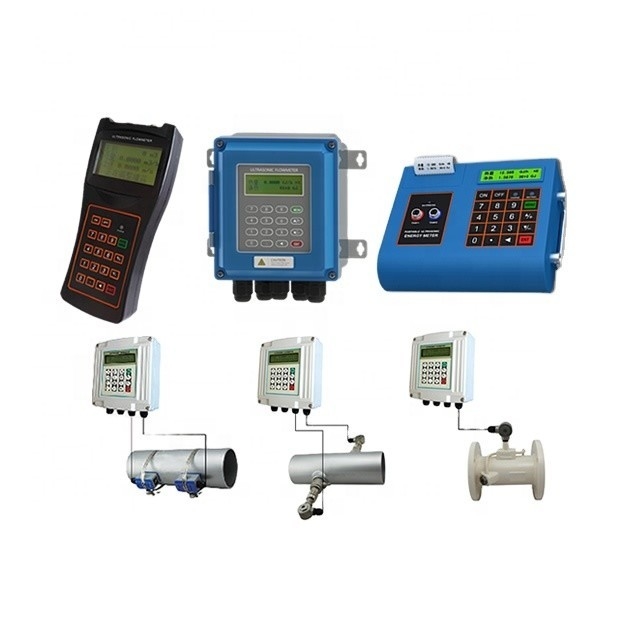

Ultrasonic flow mete

GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed

on the pipes.  The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added

Feature of economical digital plastic ultrasonic alcohol flowmeter

   High flow accuracy

     Up to1%

    Wide range

    Suitable for the pipe with Dn15 toDN6000

    High reliability

    working life up to 10 years

    Robust design

    Differential signal driver and reciever, immune to low frequency transformer and Tv  signal and power transmission.

    huge storage function

   Support 512 days and 128 months and 10 years accumulated flow result,Auto save 64 times power on and off time and flow rate.
Auto save 32 days work status of the meter

   Remote transmission and net work transmission

    Rs485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking

   Easy to used for calorimeter

   Can be used as Calorimeter after the temperature sensor installtion

 Measure of economical digital plastic ultrasonic alcohol flowmeter

 sensors selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow back view of terminal pole front view with cover off back view with cover off 5 Powermodule(optional):AC85-265V Front view. Please refer to the fix method choice chapter for details

 Optional temp sensor

Picture	Description	Type No.	Piperange	Temp	Fix con	Accuracy
	3-wire PT100 clamp on type	TPT1	>DN50	40~160°C	easy	100°C±0.8°C<0.1°C
	3-wire PT100 Plug in type	PPT1	>DN50	40~160°C	shut flow down
	3-wire PT100 without pressure loss plug in type	LPT 3	>DN50	40~160°C	easy
	mini 3-wire PT100 plug in type	MPT 3	>DN50	40~160°C	shut flow down

 Description of parts

Parameters economical digital plastic ultrasonic alcohol flowmeter

Handled flow meter

 Specifications economical digital plastic ultrasonic alcohol flowmeter

1 Handle Ultrosonic Flowmeter
2 Repeatability 0.2%
3 Accuracy better than 1%
4 Size:210*90*30mm
5 Lin:0.5%

 Feature

1. High-precision measurement, measurement accuracy better than ± 1%, linearity 0.5%, 0.2% repeatability

2.Small size, light weight, volume: 210 × 90 × 30mm, weighs only 0.5kg

3. Non-contact measurement, ultrasonic flowmeter sensor with magnetic absorption in the pipe wall to complete the flow measurement

4. Large measurement range, the choice of different types of sensors can be realized DN20 ~ DN6000 diameter pipeline flow measurement

5. Charging power supply, built-in high-capacity NiMH rechargeable batteries, can support more than 12 hours of continuous work flow

Application field of economical digital plastic ultrasonic alcohol flowmeter

           Water supply                   Heat supply               Intelligent building         Metallurgy               Peroleum         Powersupply
