Place of Origin: | Shaanxi, China |
Brand Name: | GX support OEM |
Model Number: | GXRS series |
Price: | $10.00 - $50.00/pieces |
---|---|
Packaging Details: | carton or customers requests available |
Supply Ability: | 10000 Piece/Pieces per Week 4~20 diesel fuel tank level sensor |
Model: | GXRS Series | Application: | Fuel Tank |
---|---|---|---|
Sensor: | Level Sensor | Funciton: | Level Measurement |
Signal: | Resistance Ouput 0-190OHM | Theory: | Resistance Sensor |
Material: | Stainless Steel | Length: | 170~2000mm |
Protection Grade: | IP67 | Feature: | 4~20 Diesel Fuel Tank Level Sensor |
Port: | Shanghai Or Other | ||
High Light: | Stainless Steel Diesel Tank Level Sensor,20mA Diesel Fuel Tank Level Sensor |
Start a career with essence,
win through high quality.
Material | 304 stainless steel |
Fitting | bulge fitting, thread fitting, SAE fitting |
Length range | 100mm~2000mmm |
Installation | bayonet, standard 5 holes or standard 6 holes, can be customzied |
Gasket | FPM gasket, NBR gasket |
Rated Power | 125mW |
Rated Current for alarm switch | 500mA |
Wire | PVC material (PA corrugated pipe aacover is optional) |
Connector | Brand Delphi , Tyco, others is available according to customers’ requirement |
Output signal | Resistance control signal 0-190Ω, 240-33Ω, or customize as required |
Precision Range | 10-40mm |
Operating Temperature | -40℃~+85 ℃ |
Protection Grade | IP67 |
3. Dimension

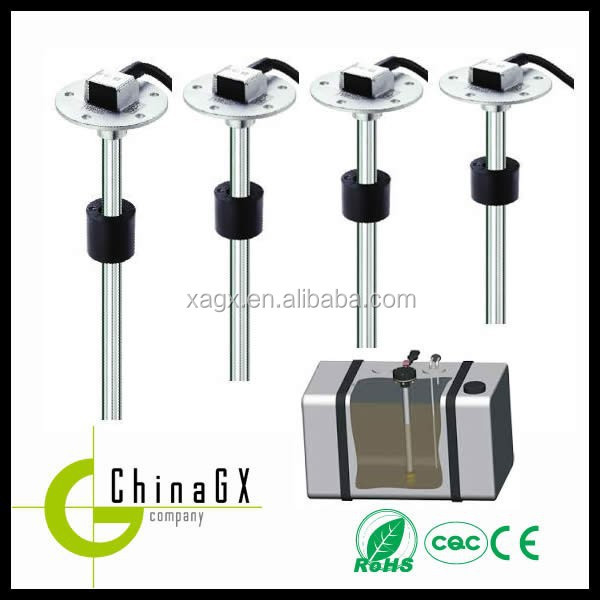

4. Application
1. mainly used in liquid level detection and oil absorbing function for oil tank
5. Package
|
|
******************************************************************************************************************************************
Please send us emali for more information, we will reply you in 12 hours.
We will provide 12 months of warranty, and lifetime maintenance for products.
Fully tested before delivery.
We supply high quality fuel level sensor, and provide high level services.
We believe once cooperation can keep you as our friend. We look forward your inquiries.
