| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | GXDPG |
| Price: | $2.50 - $50.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week pressure gauge |
| Pressure Range: | 0 ~ 35kPa, 0 ~ 3MPa, 0 ~ 5MPa, 0 ~ 50MPa | Feature: | Pressure Gauge |
|---|---|---|---|
| Accuracy Class: | 0.2% | Model: | Pressure Gauge |
| Medium: | High Viscosity, Strong Corrosion | Supply Voltage: | AC 220V |
| Delivery Time: | Asap. After Payment | Port: | Shanghai Or Other |
| High Light: | High Precision Pressure Gauge 35kPa,Corrosion Resistant Pressure Gauge |
||
Manufacturer Supply High Precision low price pressure gauge
GXDPG digital pressure gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.
Feature
1. Wide range, full stainless steel.
2. Various pressure point.
3. Diameter 100mm profile.
4. High light LED display.
5. Two supply power mode 24VDC or 220VAC.
6. Marking: ExiaIICT6
7. Can provide Max. 3 way control contact point,
8. Value of contact point and status of contact point can be set freely
Application
1. Compatible with 316LSS, noncorrosive liquids.
2. Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control
Specification
| Measurement Range | -0.1...0~0.01...~100MPa |
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.3%F.S/year |
| Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
| Operating Temperature Range | -20°C~80°C |
| Storage Temperature | -40°C~120°C |
| Power supply | 24VDC or 220VAC |
| Output signal | Analog :4~20mA |
| Pressure port | M20×1.5 , G1/2 or customize |
| Relay control | 1~3 way relay AC220V/3A |
| Life of contact point | More than 100000 times |
| Display | -1999~9999 |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O ring | Fluor or ubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |
Dimension

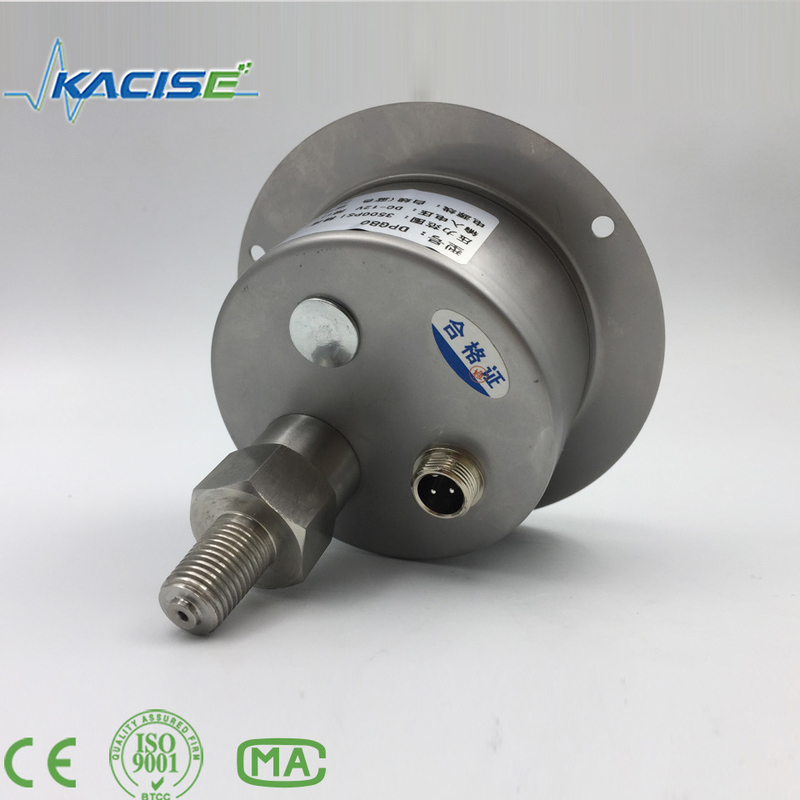

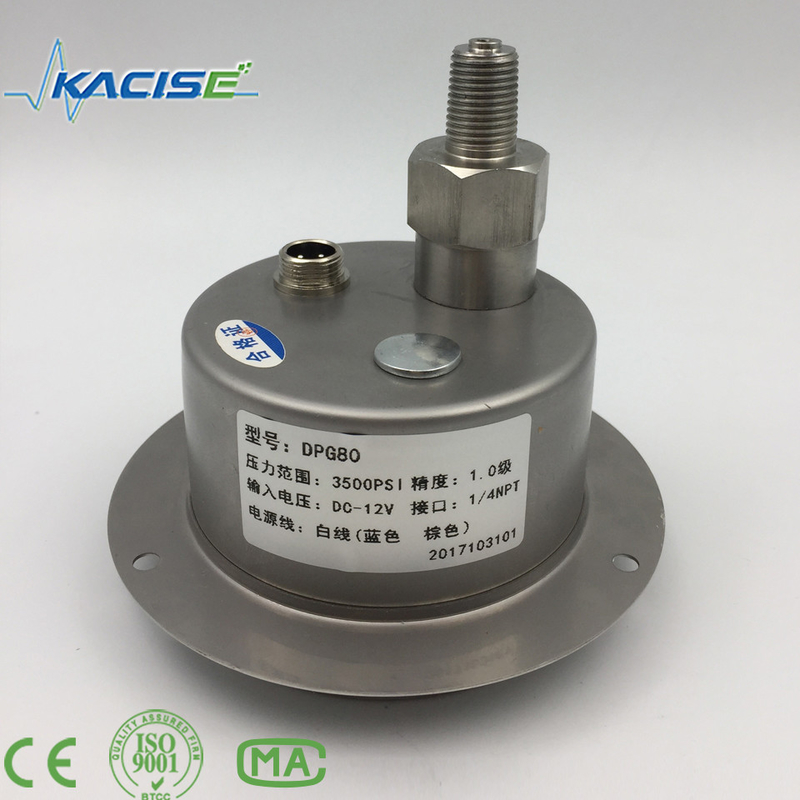

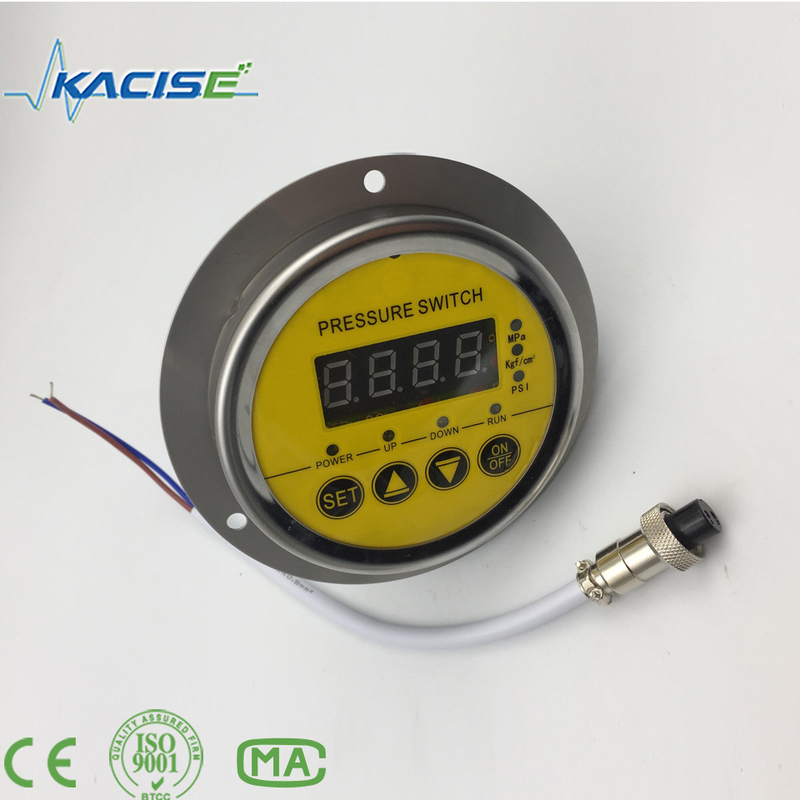

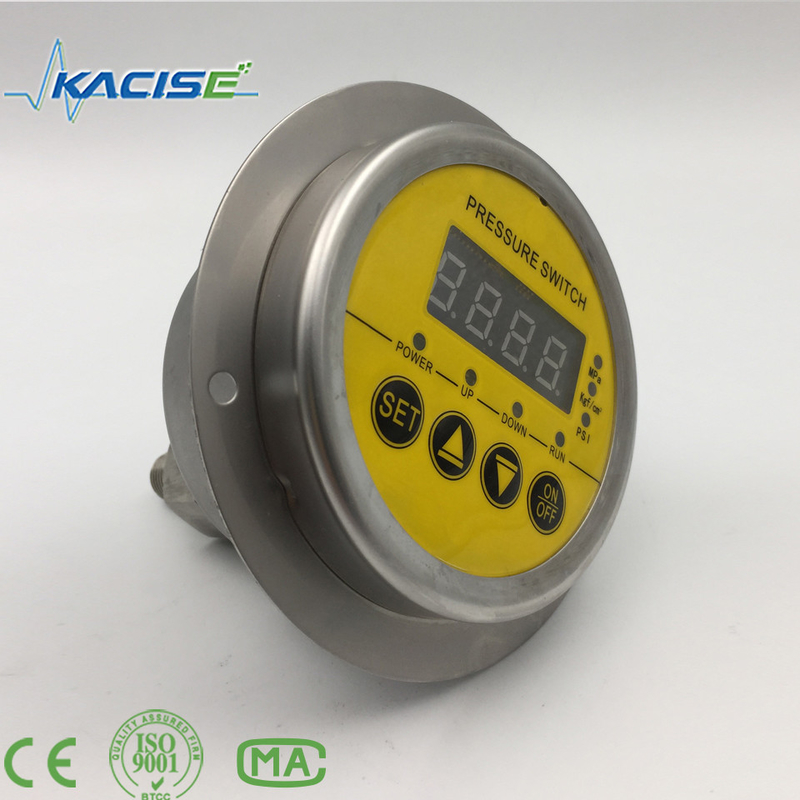

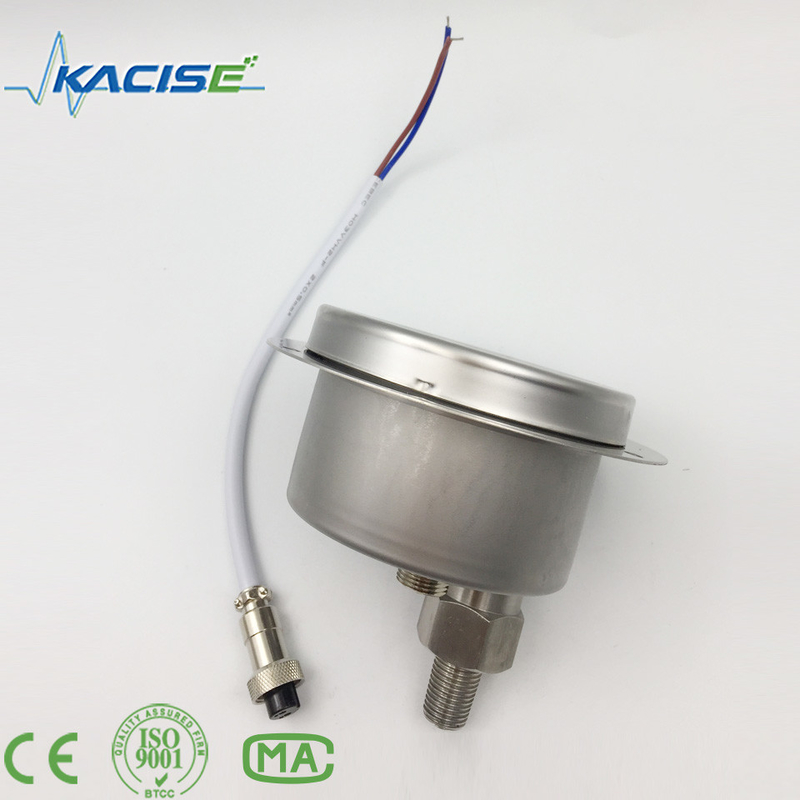

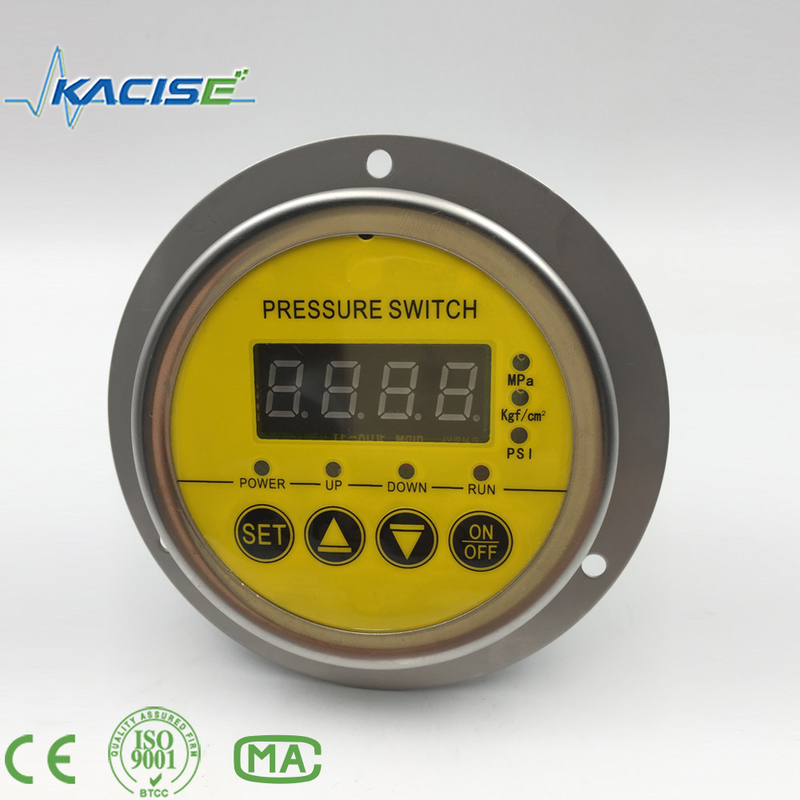

Product picture
