| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXDPG |
| Price: | $2.50 - $50.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week refrigeration digital vacuum gauge |
| Pressure Range: | -100kpa...0~0.01...~0kPa | Feature: | Refrigeration Digital Vacuum Gauge |
|---|---|---|---|
| Accuracy Class: | 0.2% | Model: | Vacuum Gauge |
| Medium: | High Viscosity, Strong Corrosion | Supply Voltage: | 24VDC Or 220VAC |
| Name: | Manufacturer Supply High Precision Refrigeration Digital Vacuum Gauge | Delivery Time: | Asap. After Payment |
| Port: | Shanghai Or Other | ||
| High Light: | Refrigeration Digital Vacuum Gauge,24VDC Digital Vacuum Gauge |
||
Manufacturer Supply High Precision refrigeration digital vacuum gauge
GXDPG digital digital vacuum gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output, span output, pressure of contact point and control pressure with key at scene.
Feature
1. Wide range, full stainless steel.
2. Various pressure point.
3. Diameter 100mm profile.
4. High light LED display.
5. Two supply power mode 24VDC or 220VAC.
6. Marking: ExiaIICT6
7. Can provide Max. 3 way control contact point,
8. Value of contact point and status of contact point can be set freely
Application
1. Compatible with 316LSS, noncorrosive liquids.
2. Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control
Specification
| Measurement Range | -100kpa...0~0.01...~0kPa |
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.3%F.S/year |
| Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
| Operating Temperature Range | -20°C~80°C |
| Storage Temperature | -40°C~120°C |
| Power supply | 24VDC or 220VAC |
| Output signal | Analog :4~20mA |
| Pressure port | M20×1.5 , G1/2 or customize |
| Relay control | 1~3 way relay AC220V/3A |
| Life of contact point | More than 100000 times |
| Display | -1999~9999 |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O ring | Fluor or ubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |
Dimension

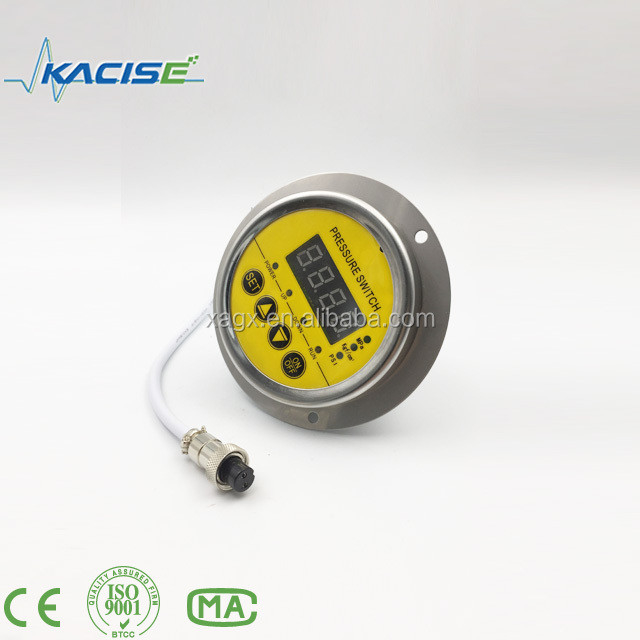

Product picture
NO.1 One piece sample is available.
NO.2 Supplier Assessment--onsite Check
NO.3 100% real photos--Detailed images, detailed description
NO.4 7*24 hours online--Efficient service, Professional answers
NO.5 After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
