| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | GXUS |
| Price: | $70.00 - $129.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 1000 Piece/Pieces per Week |
| Feature: | Ultrasonic Level Sensor | Protection Grade: | IP67 |
|---|---|---|---|
| Power Supply: | 24VDC | Output Signal: | 4-20mA / RS485 |
| Measuring Range: | 6m | Port: | Shanghai Or Other |
Parameters
Range | 50...500mm; 100...1000mm; 200...3000mm; 300...5000mm; 500...6000mm |
Resolution | 3mm or 0.1%(which is bigger) |
Response time | < 200ms |
Display | LED |
Emission angle | 20° |
Analog output | 4~20mA/500Ω LOADING |
Switch output | RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL) |
RS232/485 | MODBUS protocol or customized protocol (optional) |
Power supply | Standard 24VDC (±15%) |
Ambient temperature | -20~+60°C |
Protection Class | IP65 (IP66 is selectable) |
Installation | M56*2 |

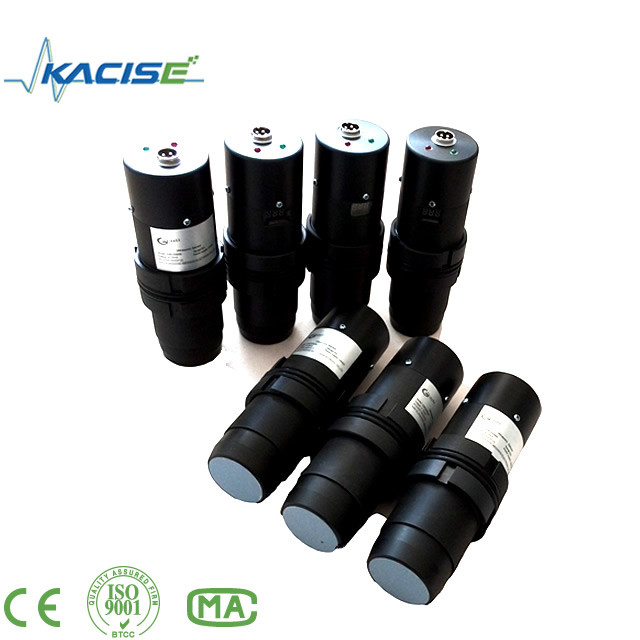

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.
. Free run operation can continually measure and output ranger information
. 9V-28V supply with very low average current draw
. Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
. Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
Applications
Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial sensor
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Application field, measuring range, output, accuracy, connection and other related parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
We supply different models of distance and level measuring ultrsonic sensors with high quality, please let us know your requirements, we will provide most suitable solution and professional service for you.
Please feel free to send us an inquiry, we will reply you within 12 hours.
