| Brand Name: | Kacise |
| Model Number: | GXPG |
| Price: | $5.00 - $180.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Name: | Mini Manometer | Model: | Mini Manometer |
|---|---|---|---|
| Feature: | $words$ | Port: | Xi'an Shanghai Or Other |
Introduction

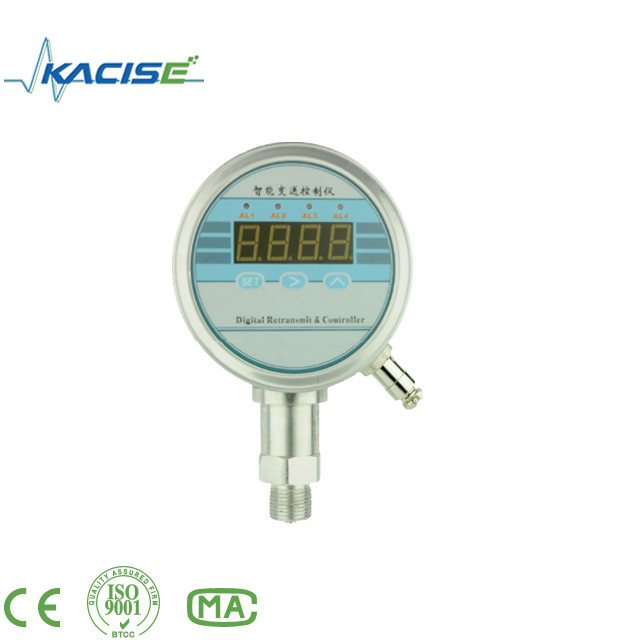

DPG100 digital pressure gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.
Feature
Wide range, Full stainless steel.
Various pressure point.
Φ 100mm profile.
High light LED display.
Two supply power mode 24VDC or 220VAC.
Application
Compatible with 316LSS, noncorrosive liquids
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control
Specification
Measurement Range | -0.1...0~0.01...~100MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%(typical) ±0.5%(Max.) |
Long stability | ±0.3%F.S/year |
Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range | -20°C~80°C |
Storage Temperature Range | -40°C~120°C |
Power supply | 24VDC or 220VAC |
Output signal | Analog :4~20mA |
Pressure port | M20×1.5 , G1/2 or customize |
Relay control | 1~3 way relay AC220V/3A |
Life of contact point | More than 100000 times |
Display | -1999~9999 |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ 100VDC |
Protection | IP65 |
Dimension
We supply high quality digital pressure gauge, please let us know your requirements, we will try best to provide most suitable solution for you. Please feel free to send us an inquiry, we will reply you within 24 hours.
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are afforded by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2. Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3. Having advanced e-commerce capabilities |
| 4. Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
