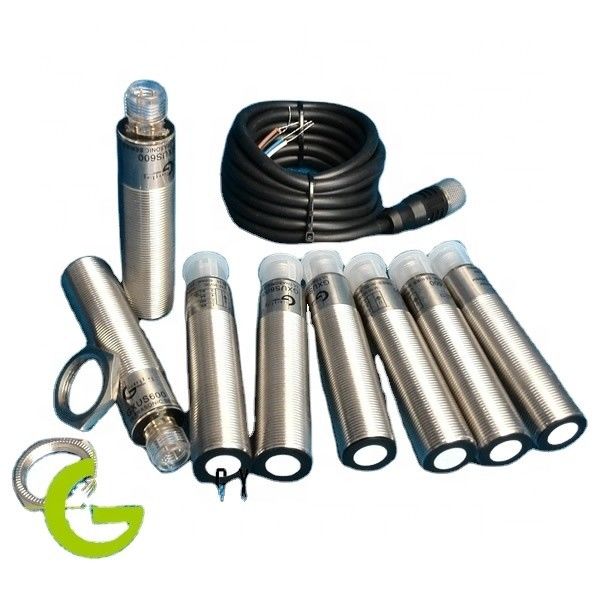

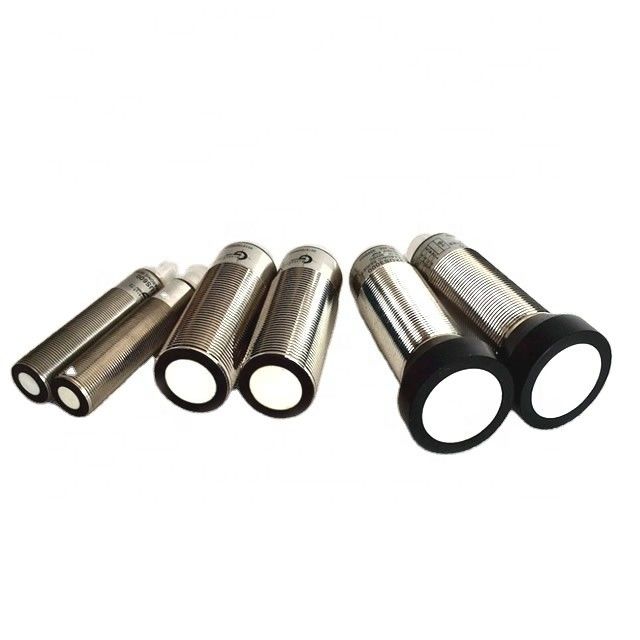

GXUS Series IP67 Protected Ultrasonic Level Transducer with 4~20mA Analog Output and MODBUS Protocol

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.

• Designed for outdoor or indoor environments
• High sensitivity
• Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.
• Free run operation can continually measure and output ranger information
• 9V-28V supply with very low average current draw
• Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
• Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz

• Tank level measurement
• Bin level measurement
• Proximity zone detection
• People detection
• Robot ranging sensor
• Autonomous navigation
• Multi-sensors navigation
• Distance measuring
• Long range object detection
• Industrial sensor

GX_US_AAA-BBB-CCC-DDD

• AAA: the material and diameter of the body
  • P18- the plastic body and diameter of the body is 18mm
  • S18 - the stainless steel body and diameter of the body is 18mm
  • P30- the plastic body and diameter of the body is 30mm
  • S30 - the stainless steel body and diameter of the body is 30mm
• BBB: distance range
  • 003-30cm
  • 005-50cm
  • 010-100cm
  • 030-300cm
  • 060-600cm
  • Others Reserved
• CCC: Interface Type
  • 0V5-Analog 0-5V
  • 0VA- Analog 0-10V
  • 1VA- Analog 1-10V
  • 4MA- Analog 4-20mA
  • SER-RS485 interface
  • NON-NPN switch
  • PNP-PNP switch
  • Others-Reserved
• DDD: cable length
  • XXX-description the cable length, the cable length should less than 15m

e.g. GX_US_S30-600-SER-1m

2 units are in box and all boxes are packed in standard packages or customers requests available. Each body of the ultrasonic sensor is shield by foam. The dimensions of the box is 130mm*130mm*42mm.
The accessories are as follows:

• a, 2 meters length cable
• b, 2 nuts for fixing the sensor
