| Place of Origin: | China |
| Brand Name: | KACISE |
| Model Number: | GXPS450 |
| Price: | $80.00 - $290.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Pressure Type: | Pressure Gauge | Pressure Range: | 0~0.5......50mH2O |
|---|---|---|---|
| Overload Pressure: | 1.5 Times Nominal Value | Secondary Containment: | 3 Times Nominal Value |
| Accuracy: | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S Selectable | Operating Temperature: | -20°C~80°C |
| Port: | Shanghai Or Other | ||
| High Light: | Corrosion Resistant Melt Pressure Transducer,Submersible Melt Pressure Transducer,Submersible Melt Pressure Sensor |
||
GXPS High corrosion-resistant submersible Melt Pressure Transducer
1. Specification:
| Spec. | Numerical value | Remark | ||
| Pressure range | 0~0.5……50mH2O | 1mH2O≈9.81kPa | ||
| Overload pressure | 1.5 times nominal value | |||
| Rupture pressure | 3 times nominal value | |||
| Accuracy | ±0.25%F.S,±0.5%F.S,±1.0%F.S | |||
| Stability | Typical range:±0.25%F.S, Max. value :±0.5%F.S | |||
| Working temperature | -20°C~80°C (or -20°C~120°C ) | |||
| Compensation temperature | -10°C~70°C ( all temperature range Numerical Compensation) | |||
| Medium compatibility | All Caustic Medium Compatible with ceramic and polytetrafluoroethylene | |||
| Electrical performance | 2 line | 3 line | ||
| Output signal | 4~20mA | 0/1~5V | 0~10V | |
| Power supply | 10~30Vdc | 6~24Vdc/ac | 11~30Vdc/ac | Vdc/ac |
| load resistance | (U-10)/0.02(Ω) | >100k Ω | ||
| insulation | >100M Ω @50V | |||
| Electric strength | 500V@60 second | |||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z 20g sine 11ms | |||
| Electrical connection | 6grade seal,IP68 protection | |||
| Structure | T=submersible | |||
| Response time | 10ms | |||
| Pressure type | pressure gauge | |||
| Graduate Certificate Programs | intrinsically safe prevent explode, isolation explosionproof certificate,CE | |||
| Electromagnetic compatibility | electromagnetic radiation:EN50081-1/-2; electromagnetic Sensitivity:EN50082-2 | |||
| Defend the lightning | Air conduction pressure proof 8000V,cable conduction pressure proof 4000V | |||

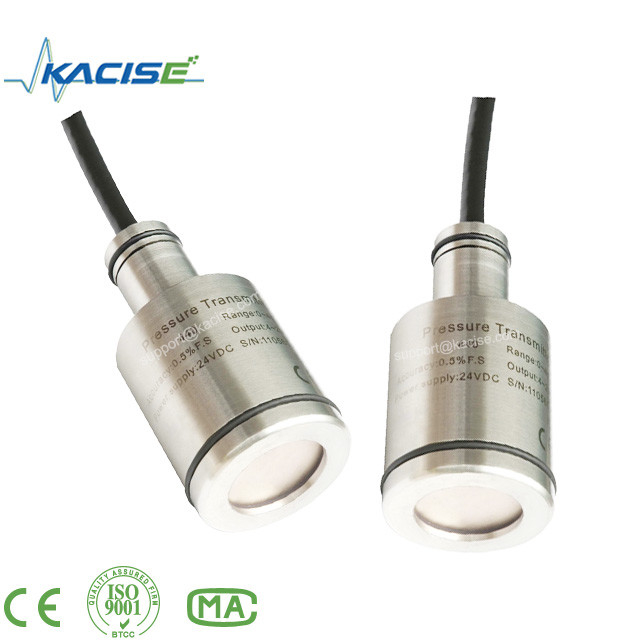

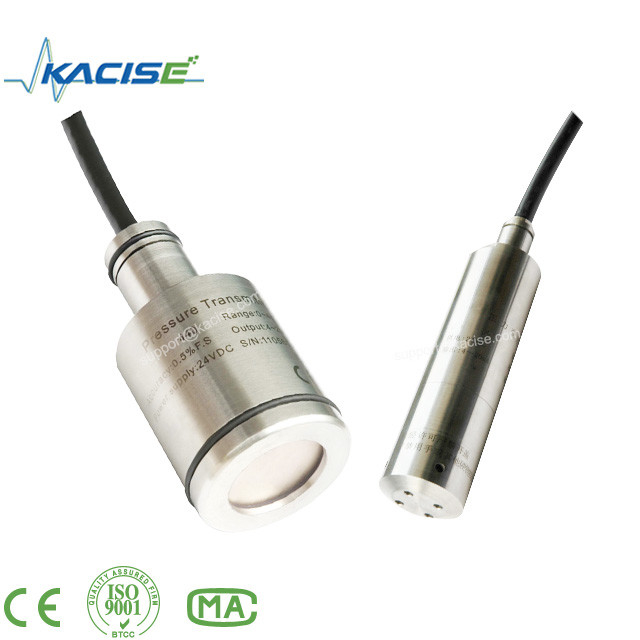

GXPS440 is the 316L SS shell plus the ceramic capacitor core body,
GXPS450 is uses a titanium alloy + PTFE shell
2. Electrical connection:
|
Electric connection |
||
|
Cable |
Two wire system |
Three wire system |
|
Red |
Power |
power |
|
Blue/green |
NULL |
output |
|
Black |
output |
Power ground |
|
Yellow |
shielding conductor |
shielding conductor |
|
Output signal |
|
|
Two wire |
4~20mA |
|
Three wire |
4~20mA, 0~20mA |
|
0/1~5V, 0~10V(dc) |
|
3. Feature:
1). Accuracy: 0.25, 0.5, 1.0 F.S
2). Import high quality core
3). Small measuring range available
4). Multiple pressure range and output signal
5). Submersible and screw installation
6). Non polarity 2 line current output
7). AC,DC voltage output
8). Two-wire system lead wire non-polarity
4. Apllications
1). The sensor is desgined specially for:
A. Strongly corrosive liquid level measuring
B. Precious liquids level measuring
C. Corrosion medium
D. Chemical experiment
E. Inflammable medium
F. Hazardous area
2). The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,
3). Help our customer cut the cost obviously.
5. Product picture
|

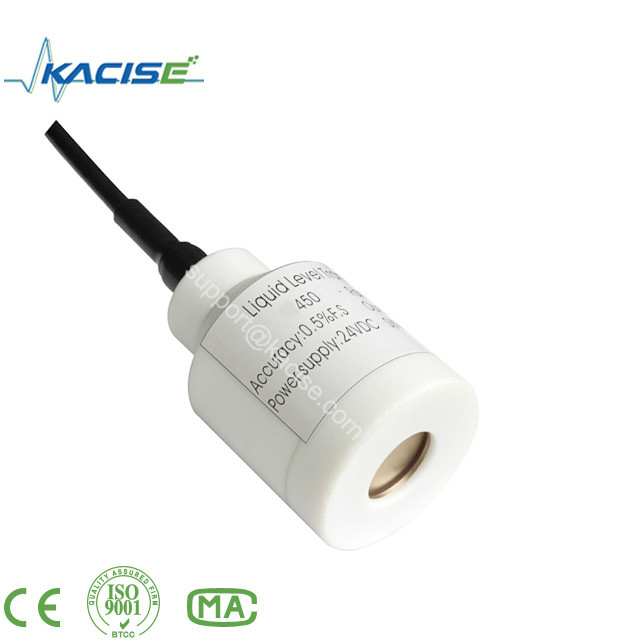

GXPS450 is uses a titanium alloy + PTFE shell |
|
GXPS450 is uses a titanium alloy + PTFE shell |
|
|
***************************************************************************************************
