| Place of Origin: | Shaanxi, China |
| Brand Name: | GX support OEM |
| Model Number: | GXUS series |
| Price: | $70.00 - $129.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 1000 Piece/Pieces per Week |
| Feature: | Waterproof Ultrasonic Sensor Module | Protection Grade: | IP67 |
|---|---|---|---|
| Port: | Shanghai Or Other |
Range | 50...500mm; 100...1000mm; 200...3000mm; 300...5000mm; 500...6000mm |
Resolution | 3mm or 0.1%(which is bigger) |
Response time | < 200ms |
Display | LED |
Emission angle | 20° |
Analog output | 4~20mA/500Ω LOADING |
Switch output | RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL) |
RS232/485 | MODBUS protocol or customized protocol (optional) |
Power supply | Standard 24VDC (±15%) |
Ambient temperature | -20~+60°C |
Protection Class | IP65 (IP66 is selectable) |
Installation | M56*2 |

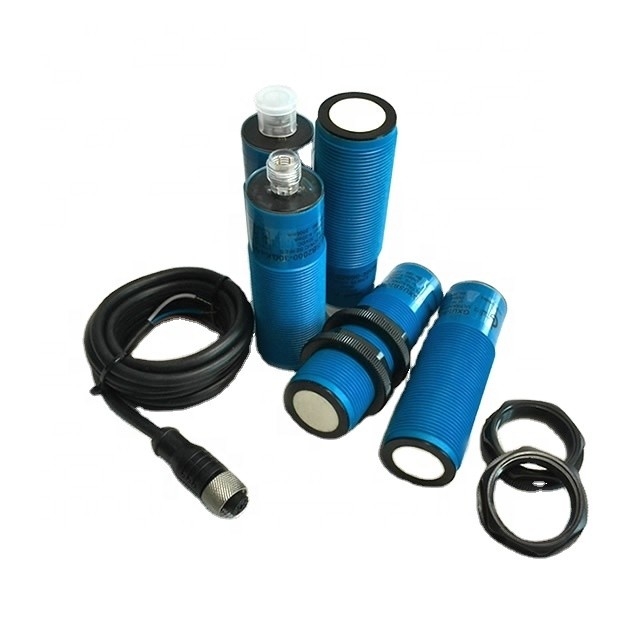

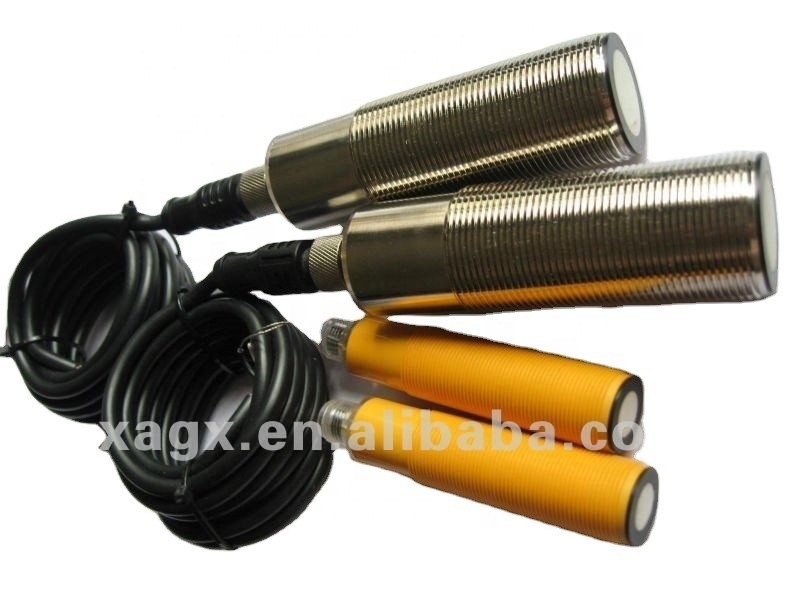

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.
Dimensions:(unit:mm)
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.
. Free run operation can continually measure and output ranger information
. 9V-28V supply with very low average current draw
. Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
. Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
Applications
Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial sensor
Ordering information
GX_US_AAA-BBB-CCC-DDD
AAA: the material and diameter of the body
P18- the plastic body and diameter of the body is 18mm
S18 - the stainless steel body and diameter of the body is 18mm
P30- the plastic body and diameter of the body is 30mm
S30 - the stainless steel body and diameter of the body is 30mm
BBB: distance range
003-30cm 005-50cm
010-100cm 030-300cm
060-600cm Others Reserved
CCC: Interface Type
0V5-Analog 0-5V
0VA- Analog 0-10V
1VA- Analog 1-10V
4MA- Analog 4-20mA
SER-RS485 interface
NON-NPN switch
PNP-PNP switch
Others-Reserved
DDD: cable length
XXX-description the cable length, the cable length should less than 15m
e.g. GX_US_S30-600-SER-1m
Package and accessories information
2 units are in box and all boxes are packed in standard packages or customers requests available. Each body of the ultrasonic sensor is shield by foam. The dimensions of the box is 130mm*130mm*42mm.
The accessories are as follows:
a, 2 meters length cable
b, 2 nuts for fixing the sensor
