| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KUS |
| Price: | $80.00 - $135.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week Waterproof ultrasonic sensor module |
| Usage: | Level Sensor | Theory: | Ultrasonic Sensor |
|---|---|---|---|
| Output: | Switching Transducer | Type: | Waterproof Ultrasonic Sensor Module |
| Port: | Shanghai Or Other |

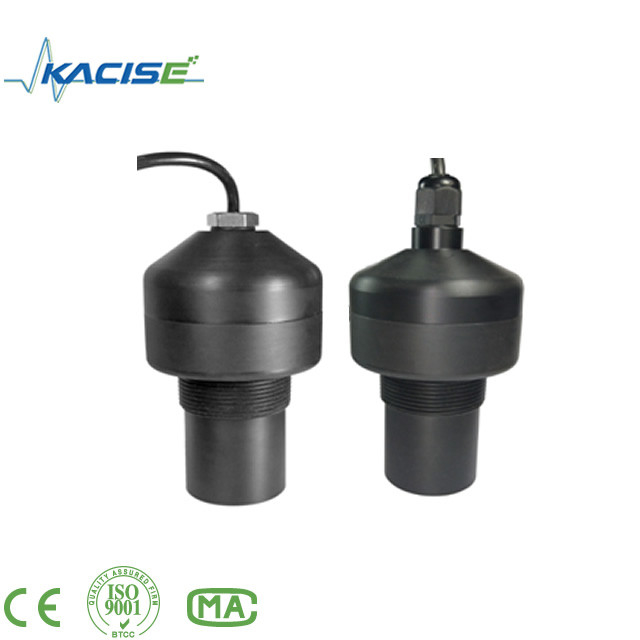

Non-contact and wear-free detection of the object to be detected using an acoustic wave medium.
The ultrasonic water level sensor mainly detects sewage, river water and clean water, and can measure the distance from the emitting surface of the sensor to the water surface.
The product protection level reaches IP68, and it can be immersed for a long time within 100 meters under water without damage. (Note that the cable outlet part of the instrument needs to be reliably sealed after field wiring to avoid water ingress)
High degree of protection: IP68.
Short response time
Address setting via RS485
Output: analog or RS485, related to the supply voltage.
Measuring range | 1 meter, 2 meters, 3 meters, 4 meters, 5 meters, 6 meters, 7 meters, 8 meters |
Measuring output | distance between the emitting surface of the probe and the medium surface |
Sensor thread | different threads depending on the measuring range |
Blind zone range | different blind zones depending on the measurement range |
Supply voltage | DC 24V, output 1 way 4-20mA or 1 way RS485 MODBUS protocol |
Supply voltage | DC 12V, output 1 way RS485 MODBUS protocol; |
Display | no display |
Default cable length | 1 meter |
Cable | 4 pin |
Working environment temperature | -20 ~ +60 ° C |
Working environment pressure | a standard atmospheric pressure |
Working environment humidity | ≤90% RH non-condensing |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, range , output signal, medium( liquid type),
and power supply, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
