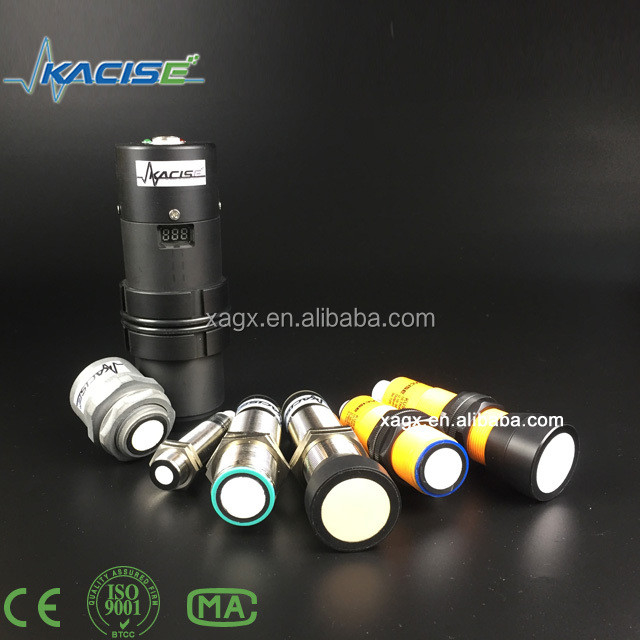

Introduction
GXUS series ultrasonic sensors cover a variety of application scenarios in industrial automation. Whether it comes to material handling, mobile equipment, food and beverage, fill level measurement or detection tasks at gates and doorways: they offer solutions for the most different application requirements.
Sensors with digital switching outputs or an analog 4-20 mA interface are commonplace. Most sensors can be taught-in or parameterized via an interface and therefore adapted to the respective application.
Features
High resolution
Short response time
Small blind zone
Various outputs available: switch, analog or RS232/485 output
Specification

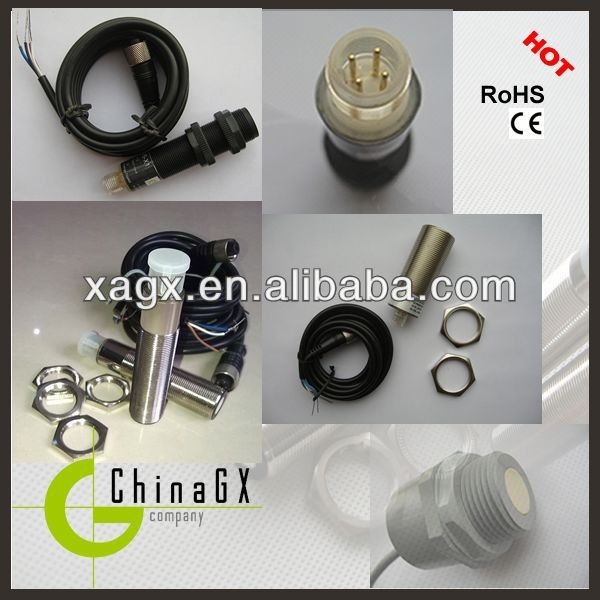

GXUS-M18
GXUS-M30
|
Sensing range
|
70 ... 1000 mm; 120...2000mm; 200...3000mm
|
|
Standard target plate
|
100 mm x 100 mm
|
|
Transducer frequency
|
approx.255 kHz
|
|
Response delay
|
approx.125 ms
|
|
LED blue
|
Power on
|
|
LED yellow
|
solid: object in the evaluation range
|
|
flashing: program function, object detected
|
|
LED red
|
solid: Error
|
|
flashing: program function, no object detected
|
|
Operating voltage UB
|
10 ... 30 V DC , ripple 10 %SS
|
|
No-load supply current I0
|
≤ 45 mA
|
|
Output type
|
1 analog output 0-10V or 4…20mA.
|
|
Resolution
|
0.11 mm at max. sensing range
|
|
Deviation of the characteristic curve
|
± 1 % of full-scale value
|
|
Repeat accuracy
|
± 0.1 % of full-scale value
|
|
Load impedance
|
> 1kOhm
|
|
Temperature influence
|
± 1.5 % of full-scale value
|
|
Ambient temperature
|
-25 ... 70 °C (-13 ... 158 °F)
|
|
Storage temperature
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Connection type
|
Device connector M12 x 1 , 4-pin
|
|
Protection degree
|
IP65 (IP66 selectable)
|
|
Material
|
Housing: nickel plated brass
or stainless steel
or plastic
|
|
Transducer: epoxy resin/hollow glass sphere mixture;
polyurethane foam
|
Adjusting the evaluation limits
The ultrasonic sensor features an analogue output with two teachable evaluation limits. These are set by applying the supply voltage -UB or +UB to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1 s. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure. The lower evaluation limit A1 is taught with -UB, A2 with +UB.
Two different output functions can be set:
1. Analogue value increases with rising distance to object (rising ramp)
2. Analogue value falls with rising distance to object (falling ramp)
Evaluation limits may only be specified within the first 5 minutes after Power on.
To modify the evaluation limits later, the user may specify the desired values only after a new Power On.
TEACH-IN rising ramp (A2 > A1)
- Position object at lower evaluation limit
- TEACH-IN lower limit A1 with - UB
- Position object at upper evaluation limit
- TEACH-IN upper limit A2 with + UB
TEACH-IN falling ramp (A1 > A2):
- Position object at lower evaluation limit
- TEACH-IN lower limit A2 with + UB
- Position object at upper evaluation limit
- TEACH-IN upper limit A1 with - UB
Default setting
A1: unusable area
A2: nominal sensing range
Mode of operation: rising ramp
LED Displays
|
Displays in dependence on operating mode
|
Red LED
|
Yellow LED
|
|
TEACH-IN evaluation limit
Object detected
No object detected
Object uncertain (TEACH-IN invalid)
|
off
flashes
on
|
flashes
off
off
|
|
Normal mode (evaluation range)
|
off
|
on
|
|
Fault
|
on
|
previous state
|
GXUS-M56
|
Distance range
|
50...500mm; 100...1000mm; 200...3000mm; 300...5000mm;
500...6000mm
|
|
Resolution
|
3mm or 0.1%(which is bigger)
|
|
Response time
|
< 200ms
|
|
Display
|
LED
|
|
Emission angle
|
20°
|
|
Analog output
|
4~20mA/500Ω LOADING
|
|
Switch output
|
RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)
|
|
RS232/485
|
MODBUS protocol or customized protocol (optional)
|
|
Power supply
|
Standard 24VDC (±15%)
|
|
Ambient temperature
|
-20~+60℃
|
|
Protection Class
|
IP65 (IP66 is selectable)
|
|
Installation
|
M56*2
|
