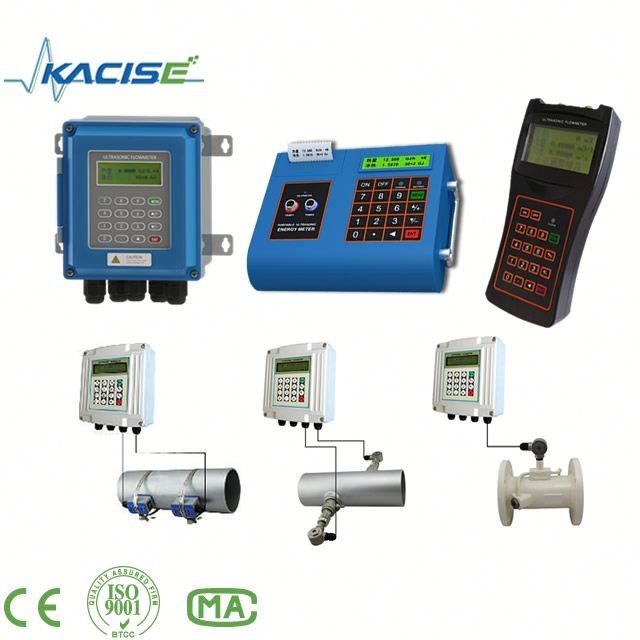

Smart Digital Battery Operated Portable Ultrasonic Flow Meter for Gasoline with 1.0% Accuracy

smart digital battery operated portable ultrasonic gasoline flowmeter for measuring gasoline

GXUFM-2000 Series High Quality and Reliability Open Channel Flow Meter

GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed

on the pipes. The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added

Feature of smart digital battery operated portable ultrasonic gasoline flowmeter

• High flow accuracy

  Up to1%

• Wide range

  Suitable for the pipe with Dn15 toDN6000

• High reliability

  working life up to 10 years

• Robust design

  Differential signal driver and reciever, immune to low frequency transformer and Tv signal and power transmission.

• huge storage function

  Support 512 days and 128 months and 10 years accumulated flow result,Auto save 64 times power on and off time and flow rate.
  Auto save 32 days work status of the meter

• Remote transmission and net work transmission

  Rs485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking

• Easy to used for calorimeter

  Can be used as Calorimeter after the temperature sensor installtion

Measure of smart digital battery operated portable ultrasonic gasoline flowmeter

sensors selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow back view of terminal pole front view with cover off back view with cover off 5 Powermodule(optional):AC85-265V Front view. Please refer to the fix method choice chapter for details

Optional temp sensor

Picture	Description	Type No.	Piperange	Temp	Fix con	Accuracy
	3-wire PT100 clamp on type	TPT1	>DN50	40~160°C	easy	100°C±0.8°C<0.1°C
	3-wire PT100 Plug in type	PPT1	>DN50	40~160°C	shut flow down
	3-wire PT100 without pressure loss plug in type	LPT 3	>DN50	40~160°C	easy
	mini 3-wire PT100 plug in type	MPT 3	>DN50	40~160°C	shut flow down

Description of parts

Parameters smart digital battery operated portable ultrasonic gasoline flowmeter

Specifications smart digital battery operated portable ultrasonic gasoline flowmeter

• 1 Handle Ultrosonic Flowmeter
• 2 Repeatability 0.2%
• 3 Accuracy better than 1%
• 4 Size:210*90*30mm
• 5 Lin:0.5%

Feature

1. High-precision measurement, measurement accuracy better than ± 1%, linearity 0.5%, 0.2% repeatability

2. Small size, light weight, volume: 210 × 90 × 30mm, weighs only 0.5kg

3. Non-contact measurement, ultrasonic flowmeter sensor with magnetic absorption in the pipe wall to complete the flow measurement

4. Large measurement range, the choice of different types of sensors can be realized DN20 ~ DN6000 diameter pipeline flow measurement

5. Charging power supply, built-in high-capacity NiMH rechargeable batteries, can support more than 12 hours of continuous work flow

Application field of smart digital battery operated portable ultrasonic gasoline flowmeter

Water supply Heat supply Intelligent building Metallurgy Peroleum Powersupply
