smart digital battery operated portable ultrasonic flow meter for measuring gasoline

smart digital battery operated portable ultrasonic flow meter for measuring gasoline

  • smart digital battery operated portable ultrasonic flow meter for measuring gasoline
smart digital battery operated portable ultrasonic flow meter for measuring gasoline
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Kacise
Model Number: KUF2000
Payment & Shipping Terms:
Price: $80.00 - $200.00/pieces
Packaging Details: carton or customers requests available
Supply Ability: 3000 Piece/Pieces per Month negotiable
Contact Now
Detailed Product Description
Name: Smart Digital Battery Operated Portable Ultrasonic Gasoline Flowmeter Accuracy: Up To 1.0%
Temperature: Customized Available Type: Ultrasonic Flow Meter
Port: Shanghai Or Other

smart digital battery operated portable ultrasonic gasoline flowmeter for measuring gasoline

        GXUFM-2000 Series High Quality and Reliability Open Channel Flow Meter
Brief

 Smart ultrasonic flow meter can be used to measure various kind of fluid in the application field of tap water, heating, water

conservancy, metallurgy, chemical industry, machinery, energy indurstry.
both sensors and the host can be installed at the pipe. also can be used as calorimeter

Product intruduction of smart digital battery operated portable ultrasonic gasoline flowmeter

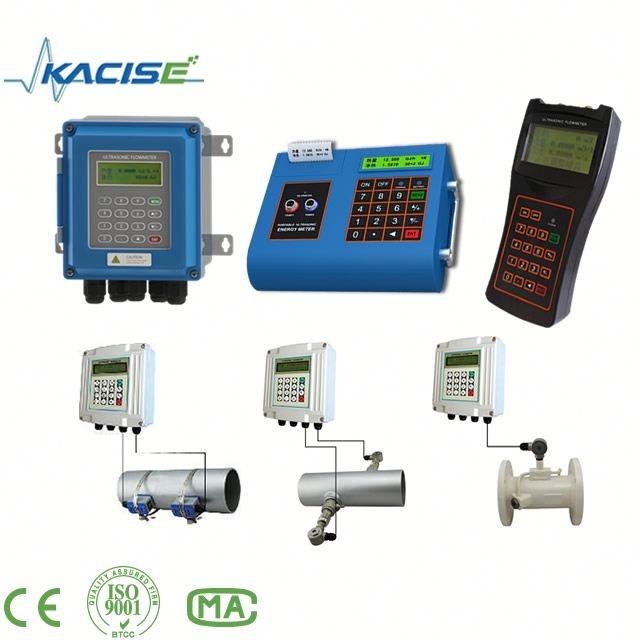

Ultrasonic flow mete

 Clamp on type, Plug in type, Pipe type



GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed

on the pipes.  The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added



Feature of smart digital battery operated portable ultrasonic gasoline flowmeter

   High flow accuracy

     Up to1%

    Wide range

    Suitable for the pipe with Dn15 toDN6000

    High reliability

    working life up to 10 years

    Robust design

    Differential signal driver and reciever, immune to low frequency transformer and Tv  signal and power transmission.

    huge storage function

   Support 512 days and 128 months and 10 years accumulated flow result,Auto save 64 times power on and off time and flow rate.
Auto save 32 days work status of the meter

   Remote transmission and net work transmission

    Rs485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking

   Easy to used for calorimeter

   Can be used as Calorimeter after the temperature sensor installtion

 Measure of smart digital battery operated portable ultrasonic gasoline flowmeter

smart digital battery operated portable ultrasonic flow meter for measuring gasoline 0

 sensors selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow back view of terminal pole front view with cover off back view with cover off 5 Powermodule(optional):AC85-265V Front view. Please refer to the fix method choice chapter for details



smart digital battery operated portable ultrasonic flow meter for measuring gasoline 1



 Optional temp sensor

Picture Description Type No. Piperange Temp Fix con Accuracy
smart digital battery operated portable ultrasonic flow meter for measuring gasoline 2 3-wire PT100
clamp on type
TPT1 >DN50 40~160°C   easy

    100°C±0.8°C<0.1°C

smart digital battery operated portable ultrasonic flow meter for measuring gasoline 3 3-wire PT100
Plug in type
PPT1 >DN50 40~160°C shut flow down
smart digital battery operated portable ultrasonic flow meter for measuring gasoline 4 3-wire PT100 without
pressure loss plug in type
LPT 3 >DN50 40~160°C  easy
smart digital battery operated portable ultrasonic flow meter for measuring gasoline 5 mini 3-wire PT100
plug in type
MPT 3 >DN50 40~160°C  shut flow down

  Description of parts

smart digital battery operated portable ultrasonic flow meter for measuring gasoline 6 smart digital battery operated portable ultrasonic flow meter for measuring gasoline 7
smart digital battery operated portable ultrasonic flow meter for measuring gasoline 8 smart digital battery operated portable ultrasonic flow meter for measuring gasoline 9



 smart digital battery operated portable ultrasonic flow meter for measuring gasoline 10

  Parameters smart digital battery operated portable ultrasonic gasoline flowmeter

smart digital battery operated portable ultrasonic flow meter for measuring gasoline 11



Handled flow meter

 Handled type Ultrasonic flowmeter

 Specifications smart digital battery operated portable ultrasonic gasoline flowmeter

1 Handle Ultrosonic Flowmeter
2 Repeatability 0.2%
3 Accuracy better than 1%
4 Size:210*90*30mm
5 Lin:0.5%

 Feature



1. High-precision measurement, measurement accuracy better than ± 1%, linearity 0.5%, 0.2% repeatability



2.Small size, light weight, volume: 210 × 90 × 30mm, weighs only 0.5kg



3. Non-contact measurement, ultrasonic flowmeter sensor with magnetic absorption in the pipe wall to complete the flow measurement



4. Large measurement range, the choice of different types of sensors can be realized DN20 ~ DN6000 diameter pipeline flow measurement



5. Charging power supply, built-in high-capacity NiMH rechargeable batteries, can support more than 12 hours of continuous work flow

smart digital battery operated portable ultrasonic flow meter for measuring gasoline 12











Application field of smart digital battery operated portable ultrasonic gasoline flowmeter



smart digital battery operated portable ultrasonic flow meter for measuring gasoline 13

           Water supply                   Heat supply               Intelligent building         Metallurgy               Peroleum         Powersupply



Packaging & Shipping



Packaing Detail: Standard export carton or wooden box.
