GXRS Series Tank Water Level Indicator Sensor 170 - 2000mm Length

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	GX support OEM
Model Number:	GXRS series

Payment & Shipping Terms:

Price:	$10.00 - $50.00/pieces
Packaging Details:	carton or customers requests available
Supply Ability:	10000 Piece/Pieces per Week tank water level indicator

Contact Now

Detailed Product Description

Model:	GXRS Series	Application:	Fuel Tank
Sensor:	Level Sensor	Funciton:	Level Measurement
Signal:	Resistance Ouput 0-190OHM	Theory:	Resistance Sensor
Material:	Stainless Steel	Length:	170~2000mm
Protection Grade:	IP67	Feature:	GXRS Fuel Level Sensor
Port:	Shanghai Or Other
High Light:	Water Tank Level Indicator Anti Corrosion , 2000mm Water Level Indicator Sensor , IP67 Tank Water Level Indicator Sensor

Start a career with essence,

win through high quality.

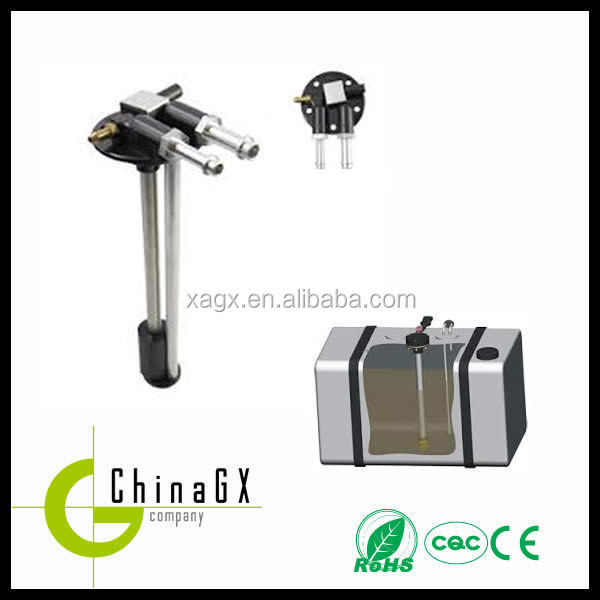

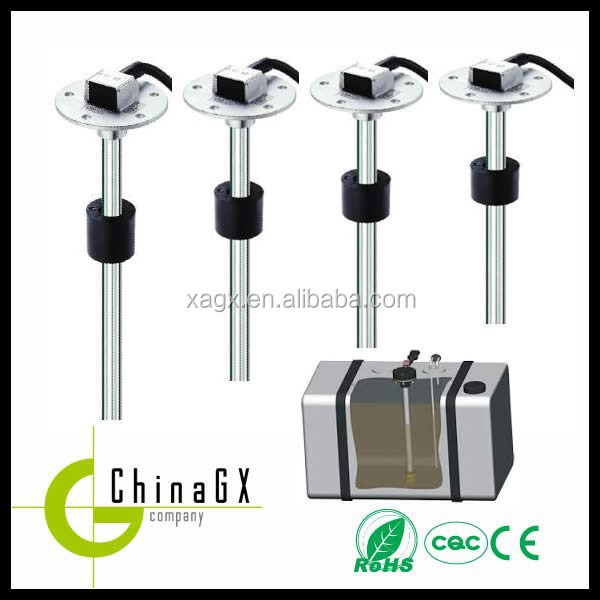

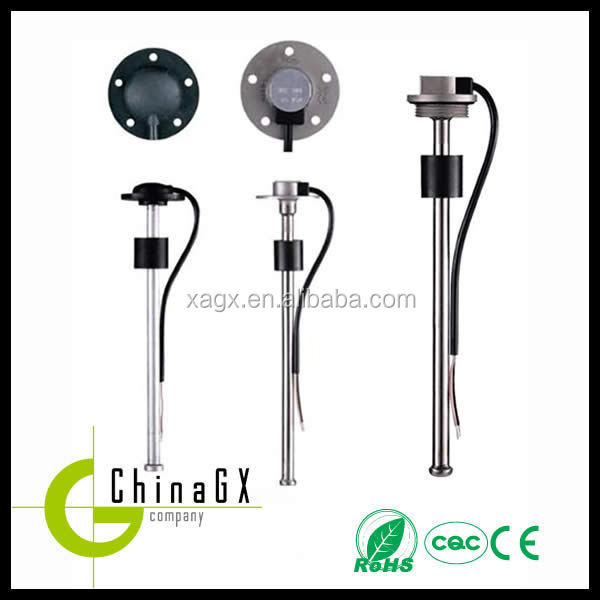

GXRS series tank water level indicator sensor

1. Products Introduction

The GXRS fuel series sensor is made of stainless steel. It applies the principle of the liquid flotage and magnetic induction to measure the liquid level. The product has good anti-corrosion performance, high measuring precision and preventing oil leakage when turned over. These made the sensor be widely used in light truck, bus, boat, and engineering mechanism fields. Graceful design and excellentquality attract the world famous vehicle OEM.

The GXRS series sensor is a cost effective fuel level sensor designed for smaller trucks. The sensor is designed according to the actual tank shape for exact measurements of the tank content. Measurements are done by series of reed switches positioned inside the level tube. A float. with built- in magnets then triggers the reed relays. generating a potential - free resistance with a ohm value that increases or decreases according to the respective fluid level. Resistance output is fully customizable. The float is the only moving part of the sensor. thereby minimize potential mechanical failures. All sensors are fully insulated to protect against voltage inside the tank.

2. Parameters

Material	304 stainless steel
Fitting	bulge fitting, thread fitting, SAE fitting
Length range	100mm~2000mmm
Installation	bayonet, standard 5 holes or standard 6 holes, can be customzied
Gasket	FPM gasket, NBR gasket
Rated Power	125mW
Rated Current for alarm switch	500mA
Wire	PVC material (PA corrugated pipe aacover is optional)
Connector	Brand Delphi , Tyco, others is available according to customers’ requirement
Output signal	Resistance control signal 0-190Ω, 240-33Ω, or customize as required
Precision Range	10-40mm
Operating Temperature	-40℃~+85 ℃
Protection Grade	IP67
