316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase

316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase

Electronic Water Pump Automatic Pressure Switch

316L Stainless Steel Automatic Pressure Switch

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

GXPS623

Contact Us
Request A Quote
316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase
Product Details
Type:
316L Stainless Steel Adjustable Pressure Control Switch
Feature:
Oil Pressure Switch For Vw
Port:
Shanghai Or Other
Max. Current:
24mA
Max. Voltage:
10V
Max. Working Pressure:
16MPa
Highlight:

Electronic Water Pump Automatic Pressure Switch

,

316L Stainless Steel Automatic Pressure Switch

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$60.00 - $180.00/pieces
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price 316 Stainless Steel Capacitive Level Sensor with IP67 Protection and HART Communication for Harsh Environments online

316 Stainless Steel Capacitive Level Sensor with IP67 Protection and HART Communication for Harsh Environments

Get Best Price
Good price 80GHz Radar Level Gauge for High Temperature and Corrosive Tanks with FMCW Technology online

80GHz Radar Level Gauge for High Temperature and Corrosive Tanks with FMCW Technology

Get Best Price
Good price KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos online

KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos

Get Best Price
Good price 26GHz Frequency Radar Level Meter with Non-Contact Measurement and IP67 Protection for Liquid Level Monitoring online

26GHz Frequency Radar Level Meter with Non-Contact Measurement and IP67 Protection for Liquid Level Monitoring

Get Best Price
Contact Us
Contact Now
Product Description
2015 hot sale electric oil pressure switch for vw
Product Description-- 2014 hot sale electric low pressure switch

electric pressure switch can be used for the gas and liquid medium

Adjustable controller, adjustable range is 0.02~10MPa

Range Table of oil pressure switch for vw
Range Switch Value Switch frequency Sensor material
0.0-0.61MPa 0.04MPa 20times/min. 304
0.02-1MPa 0.025MPa 20times/min. 304
0.05-2.5MPa 0.25MPa 20times/min. 304
0.3-6MPa 0.3MPa 20times/min. 304
1-10MPa 0.3MPa 20times/min. 304
Setting Value Adjustment of oil pressure switch for vw
  1. Use the wrench to clamp the six square plane of controller, to screw the pressure interface into pressure interface of the pressure check table.
  2. Open the cover plate, to connect the one end of cable to the wiring terminal 1-3, another end connected with universal meter.
  3. To add the pressure value into necessary value, adjust the screw with counterclockwise rotation. Make the setting value from large to small, till the switch contacts switch the value in the required pressure value. And change the pressure value back and forth on required pressure value, so that to check the switch value of contacts is the needed pressure value.
  4. Closed the cover plate
  5. Single pole double throw micro switch process.
  6. Connect terminal 1-3, to put through until pressure raised to upper switching value.
  7. Connect terminal 1-2, to switch off until pressure raised to upper switching value
Electronic interface and signals definition

316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 0 316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 1

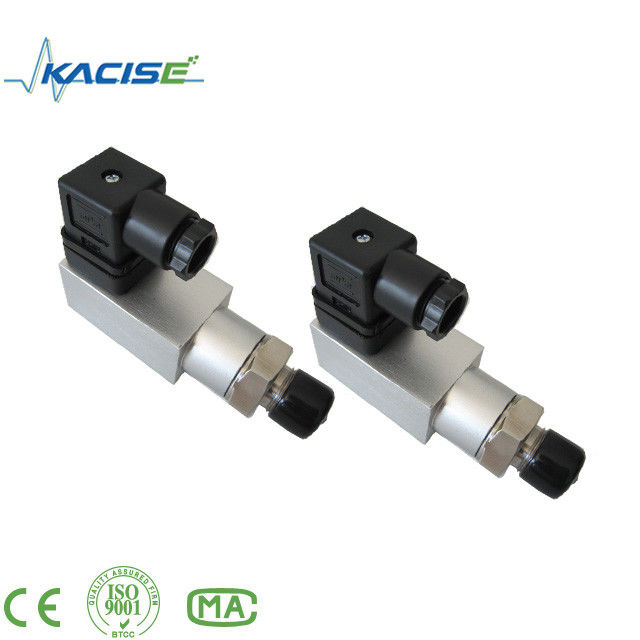

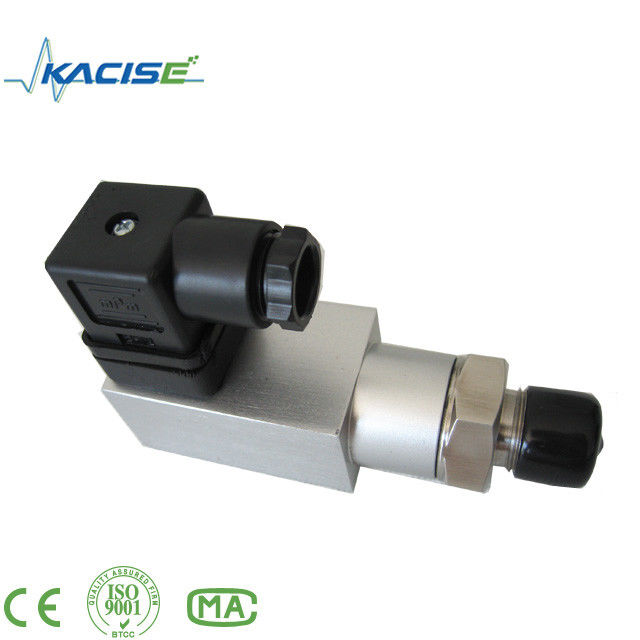

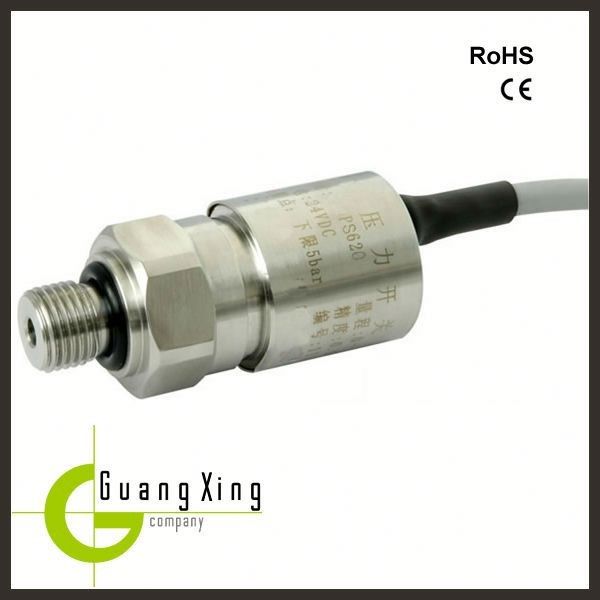

Product picture of oil pressure switch for vw

316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 2 316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 3 316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 4 316L Stainless Steel Electronic Water Pump Pressure Switch Adjustable 0.02~10MPa 16MPa Max 3 Phase 5

The quality principle: Quality is the best sales
Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
  1. 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment
  2. 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
  3. 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
  4. 4.Any import fees or charges are afforded by the buyers
Service :
  1. 1.Provide you one-stop service of electronic components
  2. 2. Competitive price advantage help to save your purchase cost and bring in you more profits
  3. 3. Having advanced e-commerce capabilities
  4. 4. Quick and accurate delivery and flexible logistics support
  5. 5. Personalized service, based on your programs and ideas to serve you
