Name: 52mm Intelligent Oil Filled Pressure Gauge Manometer 316 Stainless Steel Economical
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPG
Price: 92.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

52mm Intelligent Oil Filled Pressure Gauge Manometer 316 Stainless Steel Economical

Oil Filled Pressure Gauge Manometer

316 Stainless Steel Pressure Gauge Manometer

52mm Intelligent Oil Level Meter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXPG

Request A Quote

52mm Intelligent Oil Filled Pressure Gauge Manometer 316 Stainless Steel Economical

Product Details

Name:

Pressure Manometer

Model:

Pressure Manometer

Feature:

$words$

Port:

Xi'an Shanghai Or Other

Highlight:

Oil Filled Pressure Gauge Manometer

316 Stainless Steel Pressure Gauge Manometer

52mm Intelligent Oil Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$5.00 - $180.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Contact Now

Product Description

Economical 316 stainless steel 52mm intelligent oil filled pressure gauge manometer

Description anfd Feature

Most economical, all-purpose pressure gauge

• 1.5" (40mm) to 4" (100mm) sizes

• Friction bezel rings

• Black steel case

• Gaseous and liquid media

• Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM

Parameter

Name	Nature gas pressure gauge
Application	It measures pressure for gas, Liquid ect media which has no corrosive effects on copper, copper alloy.
Accuracy degree classification	±1.6%,±2.5%
Measuring range	-1-0 to -1-24kg/cm²
Outer size	2”,2,1/2”,3”,4”,6”
Casing	Steel, plastic, black stainless steel
Machine core	Brass
Corrugated pipe	Phosphor bronze
Use temperature	-40 to70°C
Connecting thread	1/4”,3/8”,1/2”,PT,NPT
Mounting patter	Radial ,axial

Item name	Scale range (Mpa)	Accuracy grade
Stainless steel pressure gauge	0-0.1,0.16,0.25,0.4,0.6,1, 1.6,2.5,4.6,10,16,25,40,60, -0.1-0,0.06,0.15,0.3,0.5, 0.9,1.5,2.4	2.5 or 1.6
Oiled stainless steel pressure gauge
Stainless steel pressure gauge with black flange
Pressure gauge back connection with front flange glycerin filled

connection

Product pictures

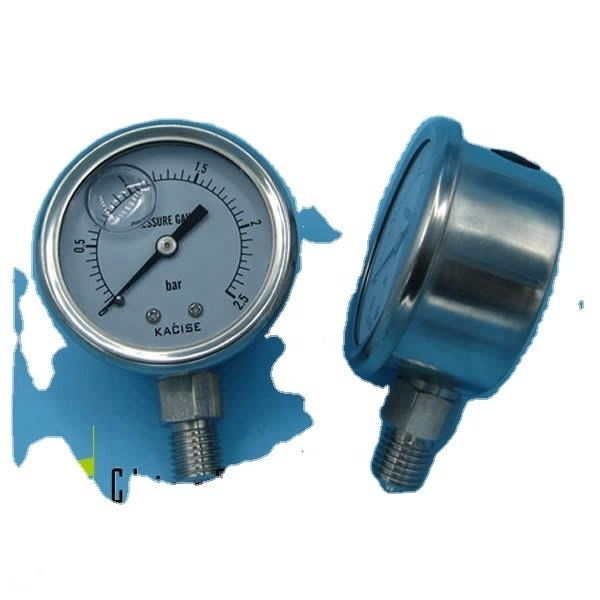

52mm Intelligent Oil Filled Pressure Gauge Manometer 316 Stainless Steel Economical 1
