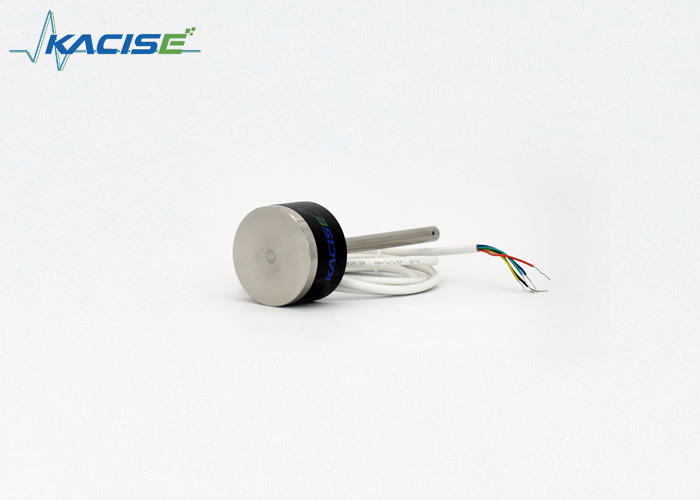

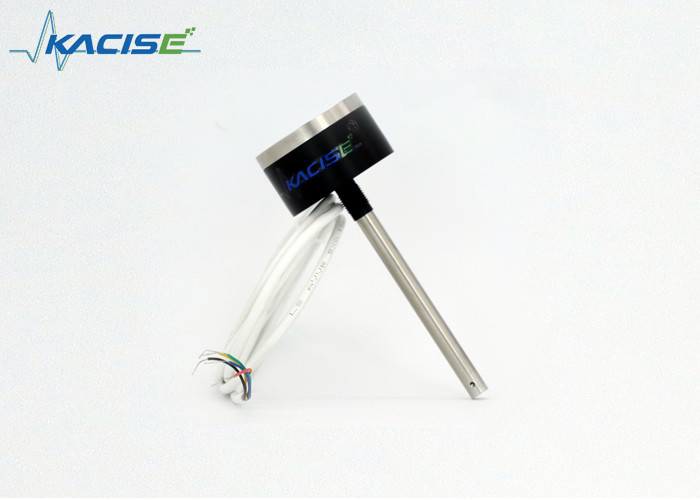

Customizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm

Customizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm

  • Customizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm
  • Customizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm
  • Customizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm
Customizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSLV606
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Range: 5cm-20cm Long-term Stability: <0.1%FS/Year
Output: RS485; 4-20mA; 0-10V; Switch(Can Customize) Capacitance Measurement Range: 10PF~500PF
Temperature Drift: <0.01%FS/°C Probe Temperature Resistance: -200°C~200°C
Level Sensor Material: 304 Stainless Steel; PVC; PTFE Pressure Range: Can Customize(Default Normal Pressure)
High Light:

Customizable capacitive level sensor

,

High temperature capacitive level sensor

,

20cm capacitive level sensor

Introduction:



The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.

The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.



Features:



● The MODBUS RTU protocol is easy to integrate.

● Multiple output types to choose from.

● Customizable output.

● Customizable protection level.

● Corrosion resistance process can be customized.

● No moving parts, reliable and stable work.

● Can measure any liquid medium.

● Can measure the level of fluctuating liquid.



Technical Specifications:



Range 5cm-20cm
Accuracy ±2%
Capacitance measurement range 10PF~500PF
Protection level IP65; IP68(Can customize)
Pressure range Can customize(Default normal pressure)
Probe temperature resistance -200°C~200°C
Ambient temperature -40°C~85°C
Output RS485; 4-20mA; 0-10V; Switch(Can customize)
Power supply voltage 5~36V DC; 12~36V DC(analog output)
Level sensor material 304 Stainless Steel; PVC; PTFE
Long-term stability <0.1%FS/Year
Temperature drift <0.01%FS/°C


Dimension:



D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mmCustomizable Capacitive Level Sensor For High Temperature Liquid Measurement With Range 5cm-20cm 0



Voltage output wiring:

Red: VCC   Black: GND   Yellow: 0-5V   Blue: RS485A   Green: RS485B



Current output wiring:

Red: Loop+   Loop: Loop-   Yellow: Null   Blue: RS485A   Green: RS485B



485 Output cable wiring:

Red: VCC   Loop: GND   Yellow: Null   Blue: RS485A   Green: RS485B



For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.



Applications:

The Kacise KSLV606 Fluid Level Meter is perfect for use in industrial tanks and trucks. Its capacitance measurement range of 10PF~500PF allows it to detect fluid levels in a variety of liquids, including oil and water. This makes it a versatile tool for monitoring fluid levels in tanks and vessels used in industrial and commercial settings.

The KSLV606 is equipped with a probe temperature resistance of -200°C~200°C, which makes it suitable for use in extreme temperatures. Additionally, it offers multiple output options, including RS485, 4-20mA, 0-10V, and switch (which can be customized), making it easy to integrate into existing systems.

With its high accuracy and reliable performance, the Kacise KSLV606 Fluid Level Meter is the perfect choice for those looking for a Capacitive Oil Level Sensor for Truck and Industrial Tanks. Whether you need to monitor fluid levels in a fuel tank, hydraulic tank, or other industrial applications, the KSLV606 has you covered.



Support and Services:

The Fluid Level Meter product comes with technical support and services to ensure proper installation, calibration, and operation of the device. Our team of experts can provide assistance with issues such as sensor malfunction, communication errors, and data analysis.



Packing and Shipping:

Product Packaging:

  • 1 Fluid Level Meter
  • User Manual
  • Calibration Certificate

Shipping Information:

  • Shipping Method: Standard Shipping
  • Estimated Delivery Time: 5-7 business days
