Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range

Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range

  • Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range
  • Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range
  • Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range
Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSLV606
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Pressure Range: Can Customize(Default Normal Pressure) Protection Level: IP65; IP68(Can Customize)
Range: 5cm-20cm Capacitance Measurement Range: 10PF~500PF
Long-term Stability: <0.1%FS/Year Accuracy: ±2%
Ambient Temperature: -40°C~85°C Temperature Drift: <0.01%FS/°C
High Light:

Petrochemical Industry Fuel Level Sensor

,

20cm Capacitive Fuel Level Sensor

,

5cm Capacitive Fuel Level Sensor

Introduction:

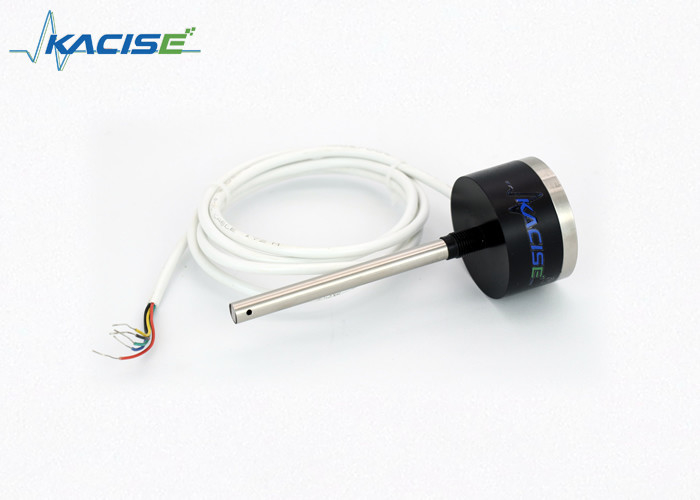

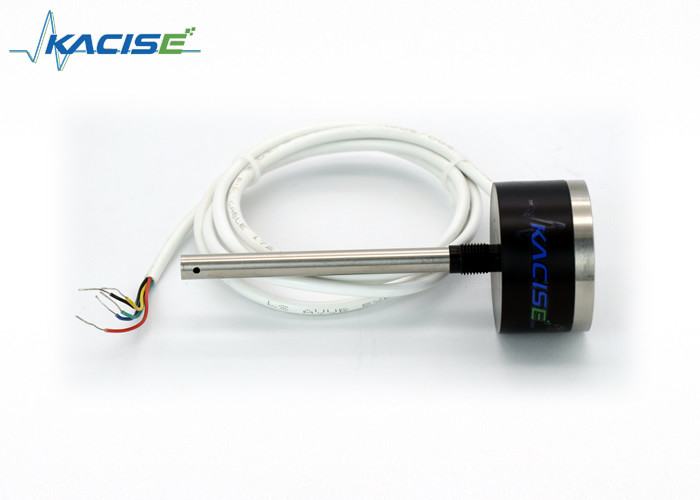

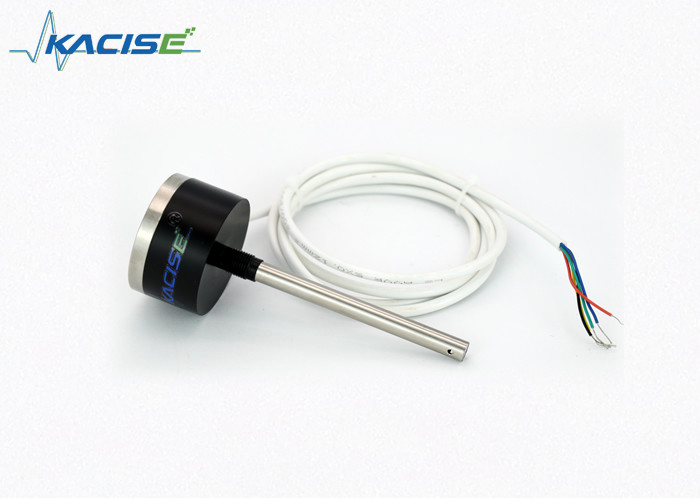

The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.

The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.



Features:

● The MODBUS RTU protocol is easy to integrate.

● Multiple output types to choose from.

● Customizable output.

● Customizable protection level.

● Corrosion resistance process can be customized.

● No moving parts, reliable and stable work.

● Can measure any liquid medium.

● Can measure the level of fluctuating liquid.





Technical Specifications:



Range 5cm-20cm
Accuracy ±2%
Capacitance measurement range 10PF~500PF
Protection level IP65; IP68(Can customize)
Pressure range Can customize(Default normal pressure)
Probe temperature resistance -200°C~200°C
Ambient temperature -40°C~85°C
Output RS485; 4-20mA; 0-10V; Switch(Can customize)
Power supply voltage 5~36V DC; 12~36V DC(analog output)
Level sensor material 304 Stainless Steel; PVC; PTFE
Long-term stability <0.1%FS/Year
Temperature drift <0.01%FS/°C


Dimension



D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm

Short Type Capacitive Fuel Level Sensor Are Used In The Petrochemical Industry With ±2% Accuracy And 5cm-20cm Range 0



Voltage output wiring:

Red: VCC   Black: GND   Yellow: 0-5V   Blue: RS485A   Green: RS485B



Current output wiring:

Red: Loop+   Loop: Loop-   Yellow: Null   Blue: RS485A   Green: RS485B



485 Output cable wiring:

Red: VCC   Loop: GND   Yellow: Null   Blue: RS485A   Green: RS485B



For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.

Applications:

Kacise KSLV606 Fluid Level Meter is a high-quality product that is manufactured in China (Mainland). It is designed to measure the fluid level of various types of liquids. With its robust design and high-quality materials, it is an ideal solution for a wide range of applications.

The Kacise KSLV606 Fluid Level Meter is equipped with a temperature-resistant probe that can withstand temperatures ranging from -200°C to 200°C. This makes it suitable for use in extreme environments where temperature fluctuations are common. The level sensor material is made from 304 stainless steel, PVC, and PTFE, which makes it resistant to corrosion and other types of damage.

The output options of the Kacise KSLV606 Fluid Level Meter include RS485, 4-20mA, 0-10V, and switch (can be customized). This allows for easy integration with other systems and makes it an ideal choice for a wide range of applications. The power supply voltage ranges from 5~36V DC and 12~36V DC (analog output), which makes it easy to power and use with different types of systems.

Long-term stability is a critical feature of the Kacise KSLV606 Fluid Level Meter, with a long-term stability of less than 0.1%FS/year. This ensures that its accuracy and reliability remain high over an extended period, making it ideal for use in critical applications where precision is essential.

The Kacise KSLV606 Fluid Level Meter is suitable for a wide range of applications, including but not limited to:

  • Oil and gas industry
  • Chemical industry
  • Water treatment plants
  • Pharmaceutical industry
  • Food and beverage industry
  • Automotive industry

One of the key applications of the Kacise KSLV606 Fluid Level Meter is as a capacitance fuel level sensor used in GPS tracking solutions. It is also commonly used as a capacitance type level transmitter, making it a versatile and essential product for various industries.



Support and Services:



-Troubleshooting assistance

- Product installation guidance

- Maintenance and repair services

Our goal is to provide you with the best possible experience with your Fluid Level Meter. Contact us today to learn more about our technical support and services.

Packing and Shipping:

Product Packaging:

The Fluid Level Meter product comes in a sturdy cardboard box with foam inserts to protect the device during shipping. The product is accompanied by a user manual and a calibration certificate.

Shipping:

The product will be shipped within 2 business days of placing the order and should arrive within 5-7 business days for domestic orders and 10-14 business days for international orders.
