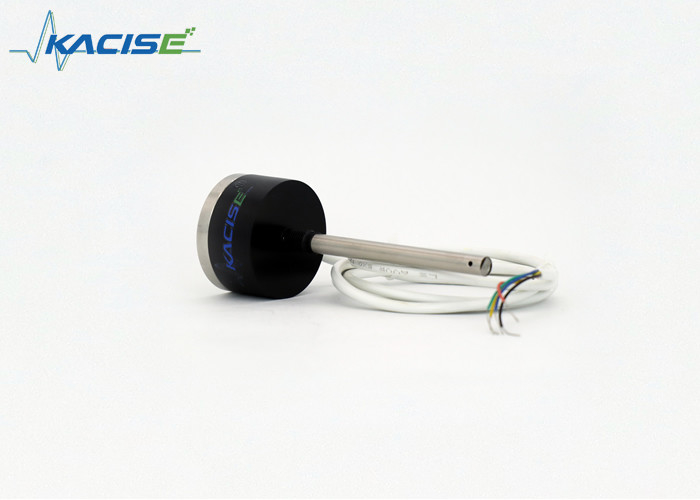

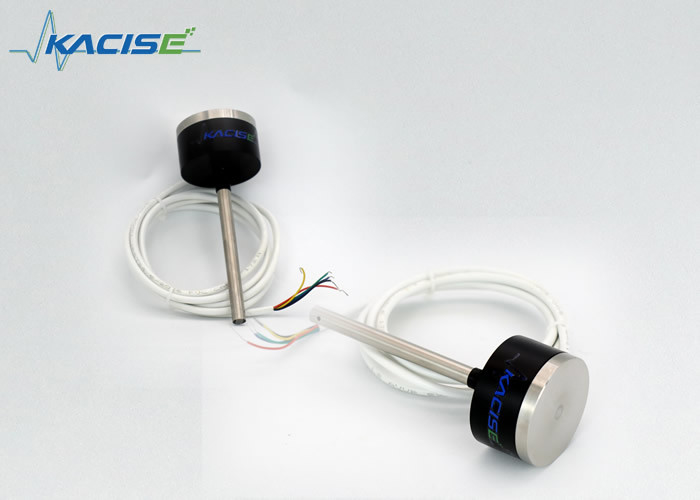

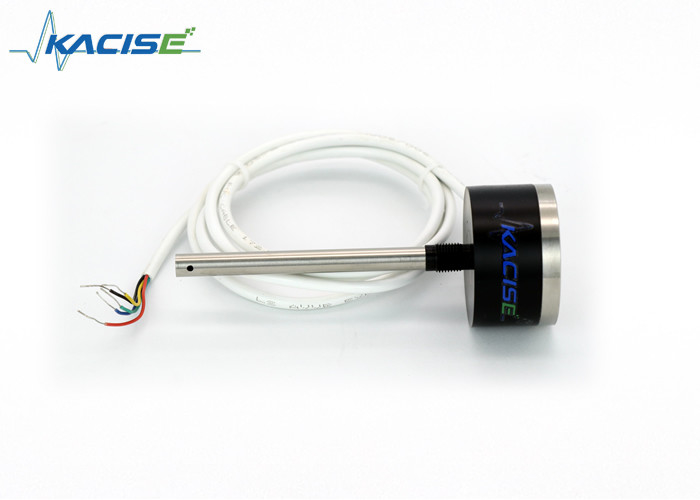

Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm

Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm

  • Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm
  • Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm
  • Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm
Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSLV606
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Range: 5cm-20cm Capacitance Measurement Range: 10PF~500PF
Pressure Range: Can Customize(Default Normal Pressure) Level Sensor Material: 304 Stainless Steel; PVC; PTFE
Long-term Stability: <0.1%FS/Year Probe Temperature Resistance: -200°C~200°C
Output: RS485; 4-20mA; 0-10V; Switch(Can Customize) Temperature Drift: <0.01%FS/°C
High Light:

4-20mA Capacitive liquid level sensor

,

20cm Capacitive liquid level sensor

,

5cm Capacitive liquid level sensor

Product Description:

The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.

The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.



Features:

● The MODBUS RTU protocol is easy to integrate.

● Multiple output types to choose from.

● Customizable output.

● Customizable protection level.

● Corrosion resistance process can be customized.

● No moving parts, reliable and stable work.

● Can measure any liquid medium.

● Can measure the level of fluctuating liquid.

Technical Specifications:



Range 5cm-20cm
Accuracy ±2%
Capacitance measurement range 10PF~500PF
Protection level IP65; IP68(Can customize)
Pressure range Can customize(Default normal pressure)
Probe temperature resistance -200°C~200°C
Ambient temperature -40°C~85°C
Output RS485; 4-20mA; 0-10V; Switch(Can customize)
Power supply voltage 5~36V DC; 12~36V DC(analog output)
Level sensor material 304 Stainless Steel; PVC; PTFE
Long-term stability <0.1%FS/Year
Temperature drift <0.01%FS/°C


Dimension:



D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm

Capacitive liquid level sensor for measuring liquid leve with output 4-20mA and range 5cm-20cm 0



Voltage output wiring:



Red: VCC   Black: GND   Yellow: 0-5V   Blue: RS485A   Green: RS485B



Current output wiring:

Red: Loop+   Loop: Loop-   Yellow: Null   Blue: RS485A   Green: RS485B



485 Output cable wiring:

Red: VCC   Loop: GND   Yellow: Null   Blue: RS485A   Green: RS485B



For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.

Applications:



Support and Services:

The Fluid Level Meter product comes with technical support and services to ensure proper installation, calibration, and operation of the device. Our team of experts can provide assistance with issues such as sensor malfunction, communication errors, and data analysis.



Packing and Shipping:

Product Packaging:

  • 1 Fluid Level Meter
  • User Manual
  • Calibration Certificate

Shipping Information:

  • Shipping Method: Standard Shipping
  • Estimated Delivery Time: 5-7 business days
