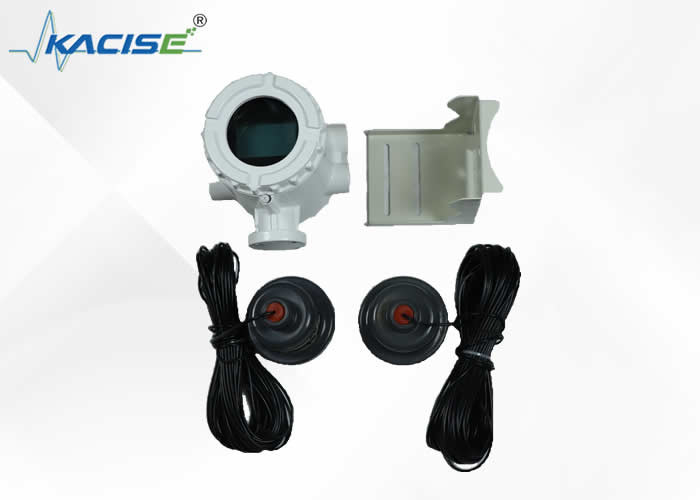

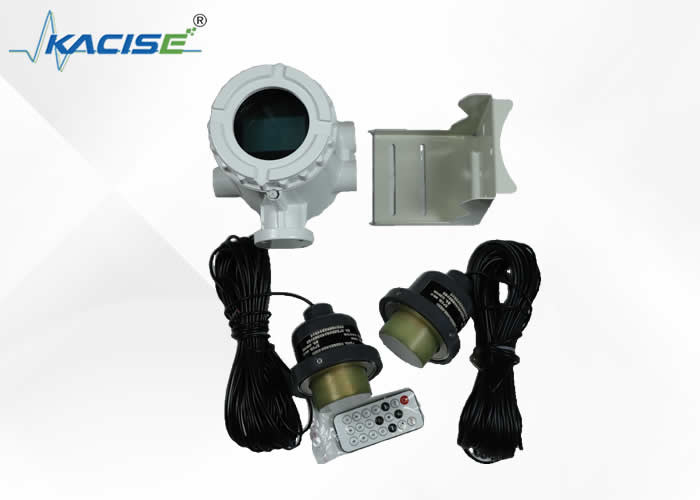

KUM-2601 External Type Liquid Level Gauge For Accurate Level Measurement

KUM-2601 External Type Liquid Level Gauge For Accurate Level Measurement

External Type Liquid Level Gauge

Wide Temperature Range Liquid Level Gauge

Accurate Level Measurement Liquid Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KUM-2601

Contact Us
Request A Quote
Product Details
Measuring Range:
3m, 5m, 10m, 15m, 20m, 30m, 50m
Display Resolution:
1mm
Error:
±1‰FS、 ±2‰FS、 ±5‰FS
Temperature Range -45℃~+100℃:
-45℃~+100℃
Protection:
IP65, IP67
Highlight:

External Type Liquid Level Gauge

,

Wide Temperature Range Liquid Level Gauge

,

Accurate Level Measurement Liquid Level Gauge

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

KUM-2601 External type liquid level gauge

Product Overview

KUM2601 Non-intrusive level gauge (hereinafter referred to as level gauge) is a kind of instrument developed by our company, which uses sonar ranging principle to measure liquid level inside of the container from the outside (bottom) of the container. This product realizes complete isolation measurement.

The liquid level gauge breaks the traditional installation method of open tank contact, and realizes the real non-contact measurement of liquid level height in sealed container. Sonar sensor (probe) is installed directly below the outer wall of the vessel under test (bottom). It does not need to open a hole in the vessel under test. It is easy to install and can be installed without stopping production. It can accurately measure the liquid levels of various toxic substances, strong acids, alkalis and various pure liquids in high temperature and high pressure sealed containers.

Technical Parameters

Non-Intrusive Level Gauge Two-wire Four-wire
Measuring Range 3m, 5m, 10m, 15m, 20m, 30m, 50m
Display Resolution 1mm
Short-Term Repetition 1mm
Error ±1‰FS, ±2‰FS, ±5‰FS
Temperature Range -45℃~+100℃
Accuracy 1℃
Output 4~20mA (Maximum load 500Ω), HART,Modbus
Power Supply DC24V (22V~36V) DC24V (18V~30V)
Power < 1 W < 1 W
Communication RS-485,Infrared, HART,Modbus
Relay Alarm Output AC 250V 5A, DC 30V 5A
Ambient Temperature Host -40℃~+80℃
Ambient Temperature Display -20℃~+70℃
Ambient Temperature Sensor -50℃~+100℃
Ambient humidity (0%~95%)RH
Explosion-proof ExdⅡCT6
Protection IP65, IP67
Display 128×64 LCD
Blind Area < 30mm Under ideal working conditions
Electrical Interface M20X1.5 (F), 1/2 NPT (F)
Cable Length 5m, optional
Host size / weight 158mmx122mmx148mm, 2kg, base hole dia M5

Level Gauge Dimension

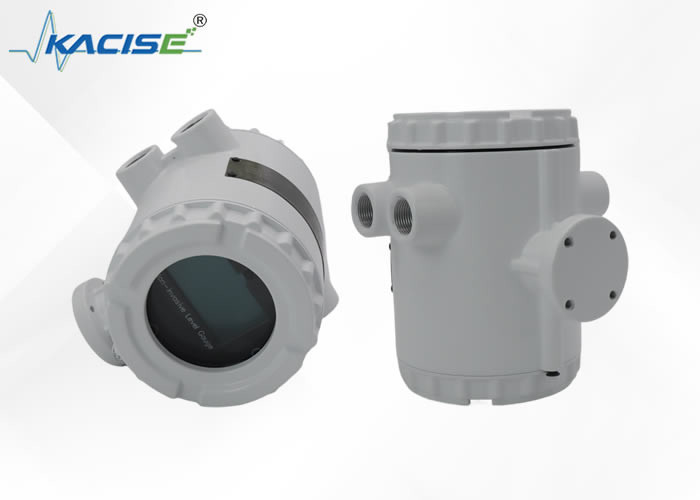

Host Dimension



KUM-2601 External Type Liquid Level Gauge For Accurate Level Measurement 0

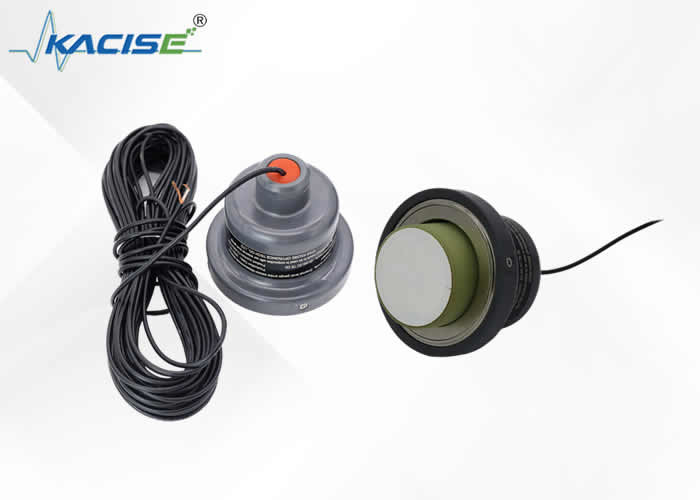

Sensor Probe Dimension

KUM-2601 External Type Liquid Level Gauge For Accurate Level Measurement 1

Installation diagram

horizontal tank

KUM2601 Non-Invasive Level Sensor

vertical tank

KUM2601 Non-Invasive Level Sensor

Ball Tank

KUM2601 Non-Invasive Level Sensor

Production Flow

KUM2601 Non-Invasive Level Sensor

Packaging & Shipping

KUM2601 Non-Invasive Level Sensor

Company Information

KUM2601 Non-Invasive Level Sensor

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
Feedback

KUM2601 Non-Invasive Level Sensor



FAQ

1. Q: What information need to be provided to choose the suitable model KUM-2601 External type liquid level gauge?

A: Please provide us:Range, medium, temperature, tank type (horizontal tank, vertical tank, spherical tank, etc.)so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
