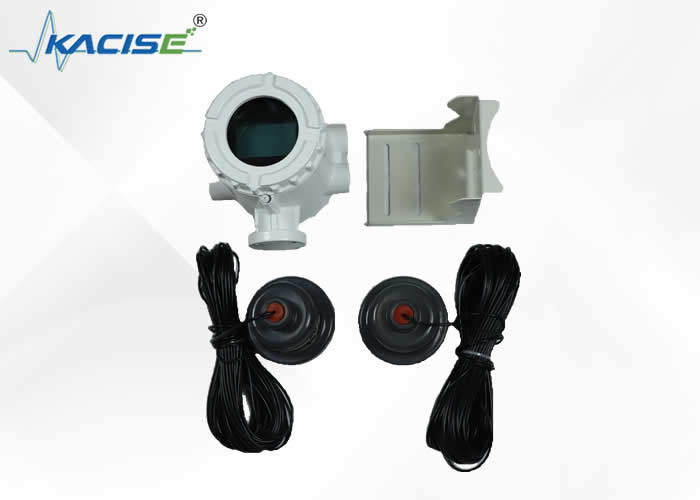

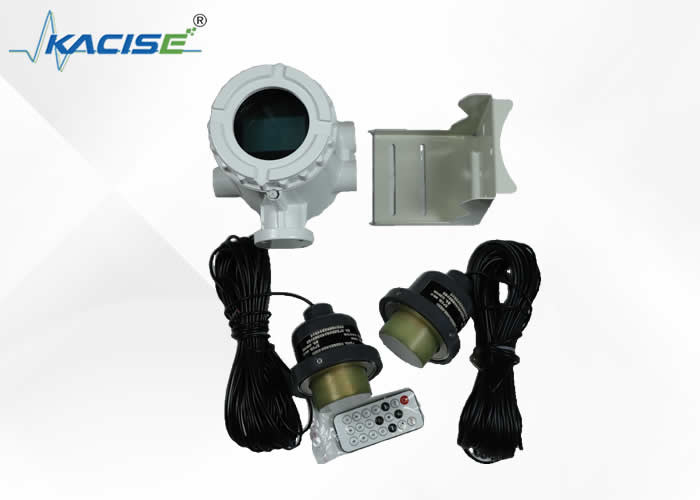

Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor
External mounted water level sensor with 10m measuring range designed for precise liquid level monitoring in spherical tanks.
Product Overview
The External Mounted Water Level Sensor is an advanced, highly reliable device engineered for accurate liquid level measurement within spherical tanks. Featuring state-of-the-art technology and durable construction, this sensor provides precise continuous monitoring with easy external mounting for simplified installation and maintenance. Suitable for various liquid substances and environmental conditions, it delivers crucial data for efficient tank management and process control.
Technical Specifications
| Parameter |
Specifications |
| Measuring Range |
3m, 5m, 10m, 15m, 20m, 30m, 50m |
| Display Resolution |
1mm |
| Short-Term Repetition |
1mm |
| Error |
±1‰FS, ±2‰FS, ±5‰FS |
| Temperature Range |
-45℃ to +100℃ |
| Accuracy |
1℃ |
| Output |
4～20mA (Maximum load 500Ω), HART, Modbus |
| Power Supply |
DC24V (22V~36V) / DC24V (18V~30V) |
| Power Consumption |
< 1 W |
| Communication |
RS-485, Infrared, HART, Modbus |
| Relay Alarm Output |
AC 250V 5A, DC 30V 5A |
| Ambient Temperature (Host) |
-40℃ to +80℃ |
| Ambient Temperature (Display) |
-20℃ to +70℃ |
| Ambient Temperature (Sensor) |
-50℃ to +100℃ |
| Ambient Humidity |
0% to 95% RH |
| Explosion-proof |
ExdⅡCT6 |
| Protection Rating |
IP65, IP67 |
| Display |
128*64 LCD |
| Blind Area |
< 30mm under ideal working conditions |
| Electrical Interface |
M20X1.5 (F), 1/2 NPT (F) |
| Cable Length |
5m (standard), optional lengths available |
| Host Size / Weight |
158mm x 122mm x 148mm, 2kg, base hole diameter M5 |
Product Dimensions

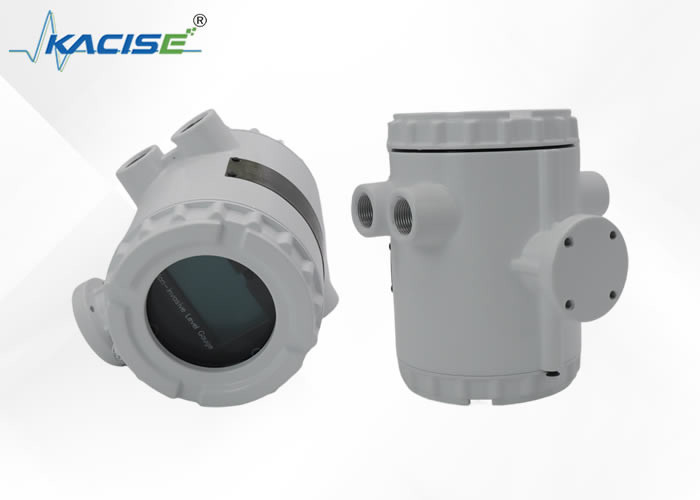

Host Dimension

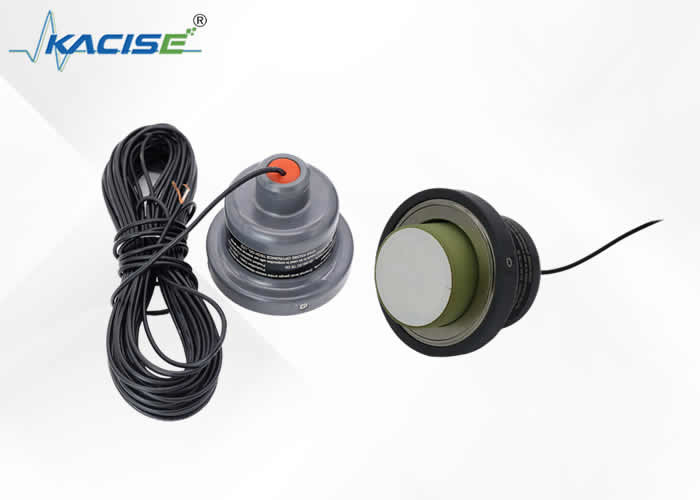

Sensor Probe Dimension
Installation Applications
Horizontal Tank Installation
Vertical Tank Installation
Spherical Tank Installation
Manufacturing & Quality
Production Process
Packaging & Shipping
Company Profile
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, ensuring our products conform to international standards.
With over 10 years of specialization in manufacturing pressure, level, and flow measuring instruments, we have experienced technical and management personnel. Through continuous improvement efforts, we have become a professional measuring instrument manufacturer and solution provider.
Kacise sensors are exported to America, Spain, Australia, Chile and 20 other countries, receiving favorable feedback. We operate with "reasonable prices, efficient production time and good after-sales service" as our core principles.
Our Services
- 24-hour response to all inquiries
- Well-trained English-speaking support staff
- OEM & ODM services with custom design capabilities
- Distributorship opportunities for unique designs
- Protection of sales areas, design ideas, and private information
- Volume-based discount pricing
Customer Feedback
Frequently Asked Questions
What information is needed to choose the suitable model for spherical tank liquid level measurement?
Please provide: measuring range, medium type, temperature requirements, and tank type (horizontal, vertical, spherical) for quick model selection and quotation.
Are you a trade company or manufacturer?
We are an ISO-certified manufacturer specializing in level and flow measuring instruments, offering OEM & ODM services.
What is your minimum order quantity (MOQ)?
Sample orders are acceptable to begin our cooperation.
What is your delivery timeline?
Delivery typically takes 3-15 working days after payment confirmation.
What are your payment terms?
We accept T/T, PayPal, and Trade Assurance. For production orders: 30% deposit, 70% balance before shipment.
What is Trade Assurance payment method?
A free service protecting orders from payment to delivery, backed by $104,000 caution money to ensure order security.
Do you provide warranty?
Yes, we offer a 12-month warranty on all products.
