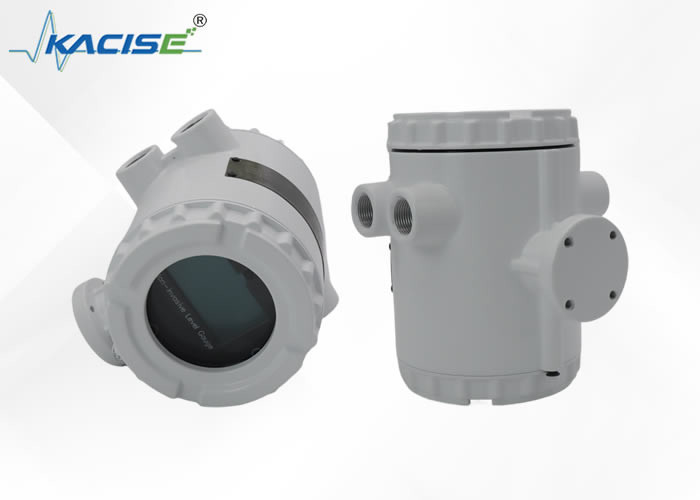

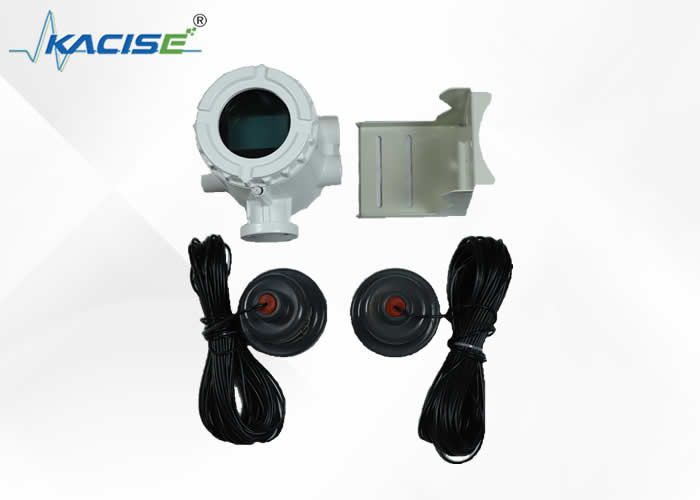

Externally-mounted Liquid Level Gauge Digital Display
The externally-mounted liquid level gauge with digital display is designed for monitoring liquid levels in industrial spherical tanks, providing precise and reliable measurement in demanding industrial environments.
Product Overview
This advanced liquid level gauge combines precision engineering with digital convenience for industrial spherical tank monitoring. The clear digital display provides instant visual feedback of liquid level readings, enabling operators to quickly assess tank status. Built with advanced sensing technology and robust construction, it withstands harsh industrial conditions while delivering stable, continuous measurement. Ideal for petrochemical, chemical, and storage industries, this instrument ensures efficient and safe operation of liquid storage and transfer processes.
Technical Specifications
| Parameter |
Specification |
| Non-Intrusive Level Gauge |
Two-wire | Four-wire |
| Measuring Range |
3m, 5m, 10m, 15m, 20m, 30m, 50m |
| Display Resolution |
1mm |
| Short-Term Repetition |
1mm |
| Error |
±1‰FS, ±2‰FS, ±5‰FS |
| Temperature Range |
-45℃~+100℃ |
| Accuracy |
1℃ |
| Output |
4～20mA (Maximum load 500Ω), HART, Modbus |
| Power Supply |
DC24V (22V~36V) | DC24V (18V~30V) |
| Power Consumption |
< 1 W |
| Communication |
RS-485, Infrared, HART, Modbus |
| Relay Alarm Output |
AC 250V 5A, DC 30V 5A |
| Ambient Temperature Host |
-40℃~+80℃ |
| Ambient Temperature Display |
-20℃~+70℃ |
| Ambient Temperature Sensor |
-50℃~+100℃ |
| Ambient Humidity |
(0%～95%)RH |
| Explosion-proof |
ExdⅡCT6 |
| Protection |
IP65, IP67 |
| Display |
128*64 LCD |
| Blind Area |
< 30mm Under ideal working conditions |
| Electrical Interface |
M20X1.5 (F), 1/2 NPT (F) |
| Cable Length |
5m, optional |
| Host Size / Weight |
158mmx122mmx148mm, 2kg, base hole dia M5 |
Product Dimensions
Host Dimension

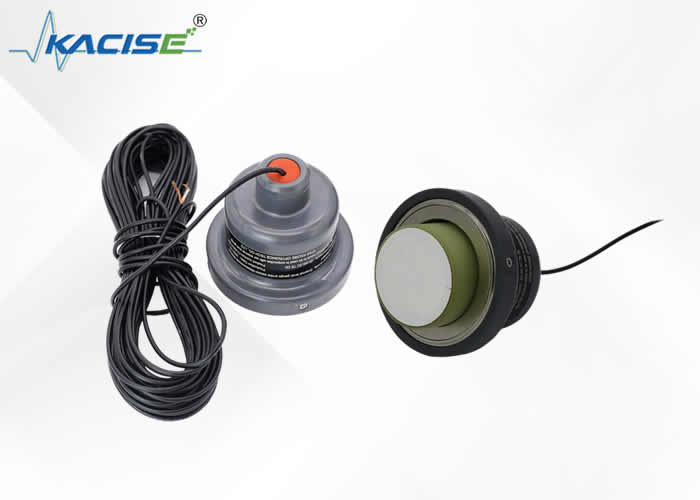

Sensor Probe Dimension
Installation Diagrams
Horizontal Tank Installation
Vertical Tank Installation
Spherical Tank Installation
Manufacturing & Quality
Production Flow
Packaging & Shipping
Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, ensuring our products conform to international standards.
With over 10 years of specialization in manufacturing pressure, level and flow measuring instruments, we have experienced technical and management personnel. Through continuous improvement efforts, we have become a professional measuring instrument manufacturer and solution provider.
Kacise sensors are exported to America, Spain, Australia, Chile and 20 other countries and regions, receiving favorable feedback. We operate with the principle of "reasonable prices, efficient production time and good after-sales service" and seek cooperation with customers for mutual development.
Our Services
- Your inquiry will be replied within 24 hours
- Well-trained and experienced staff to answer all inquiries in fluent English
- OEM & ODM services for custom design and product development
- Distributorship offered for unique designs and current models
- Protection of your sales area, design ideas, and private information
- Quantity-based discounts available
Customer Feedback
Frequently Asked Questions
What information is needed to choose the suitable model for monitoring industrial spherical tank liquid levels?
Please provide: Range, medium, temperature, and tank type (horizontal, vertical, spherical, etc.) so we can select the appropriate model and provide a quick quotation.
Are you a trade company or a manufacturer?
We are an ISO-approved manufacturer specializing in level and flow measuring instruments. OEM & ODM services are available.
What is your minimum order quantity (MOQ)?
Sample orders are acceptable to start our cooperation.
What is your delivery timeline?
Delivery is approximately 3-15 working days after receipt of payment.
What are your payment terms?
We support T/T, PayPal and Trade Assurance. For mass production orders: 30% deposit in advance and 70% balance before shipment.
What is Trade Assurance payment method?
A free service that protects your orders from payment to delivery. We have USD104,000.00 of caution money to assure your orders.
Do you provide warranty?
Yes, we offer a 12-month warranty on our products.
