Name: IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD800 Series
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

IP67 Protection Class Radar Level Gauge

Small Blind Area Radar Level Gauge

High Precision Radar Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD800 Series

Document:

KLD800 Series Radar Level S...v1.pdf

Request A Quote

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Product Details

Measuring Range::

0.05m～10/20/30/60/100m

Protection Class:

IP67

Center Frequency::

80GHz

Antenna Material::

PTFE

Highlight:

IP67 Protection Class Radar Level Gauge

Small Blind Area Radar Level Gauge

High Precision Radar Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

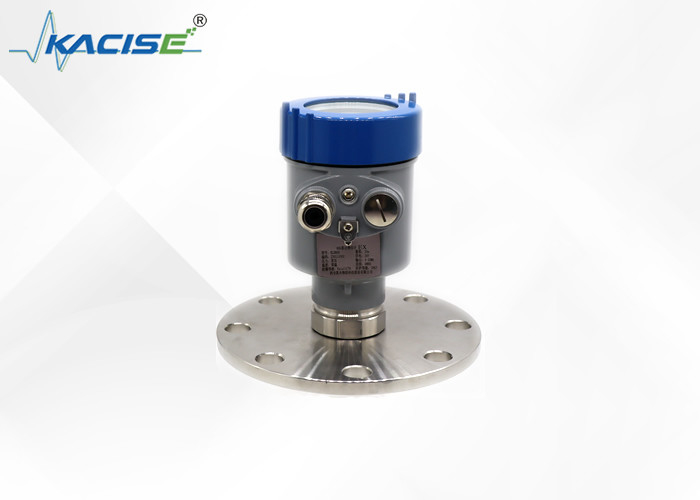

Radar level gauge with small blind area and high precision is used for liquid level monitoring in chemical industry

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 0

Principle

The radar level gauge, which features a small blind area and high precision, has become an essential instrument for liquid level monitoring in the chemical industry. In chemical plants, accurate measurement of liquid levels in various tanks and vessels is crucial for process control and safety. This radar level gauge utilizes advanced microwave technology to emit and receive signals. The small blind area allows it to detect liquid levels even in confined spaces or close to the tank walls with remarkable accuracy. It can provide highly precise readings, minimizing errors and ensuring reliable data for operators. With its non-contact measurement principle, it is not affected by the corrosive or viscous nature of the chemicals, reducing maintenance requirements and enhancing durability. This enables continuous and stable liquid level monitoring, which in turn helps in optimizing chemical production processes, preventing overflows or shortages, and maintaining the overall integrity and efficiency of the chemical plant's operations.

Feature

Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
The smaller antenna size satisfies the measurement of more working conditions.
A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals, and higher reliability than other radar products under the same industrial and mining conditions.
It has stronger penetration and can be used normally in the case of adhesion and condensation.
The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
Multiple measurement modes, radar response in fast measurement mode

Model Introduction

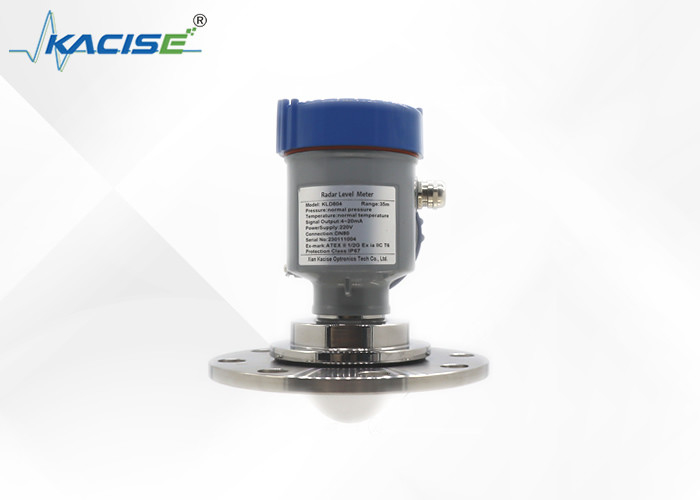

KLD801

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 1

Medium: liquid, non-corrosive

Measuring range: 0.05m～10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40～80℃

Process pressure: -0.1～0.3 MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire / 4...20mA/ RS485 Modbus

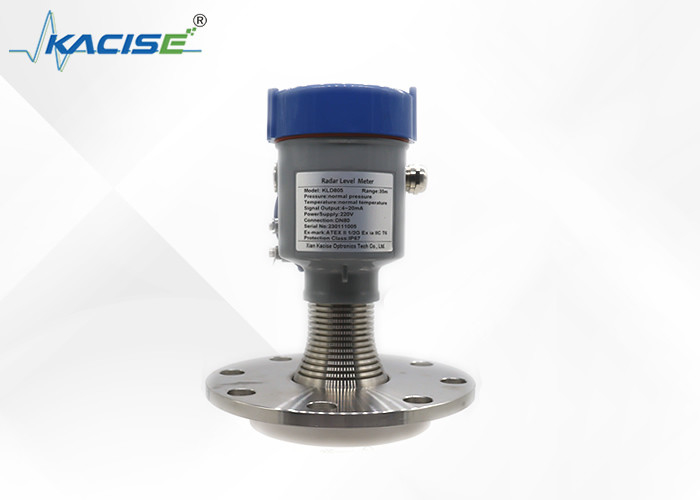

KLD802

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 2

Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～110℃

Process pressure: -0.1～1.6MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire / 4...20mA/ RS485 Modbus

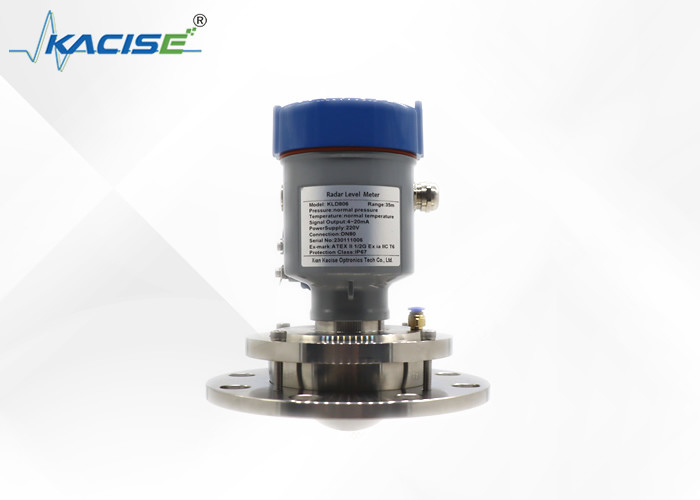

KLD803

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 3

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna (according to flange size)

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

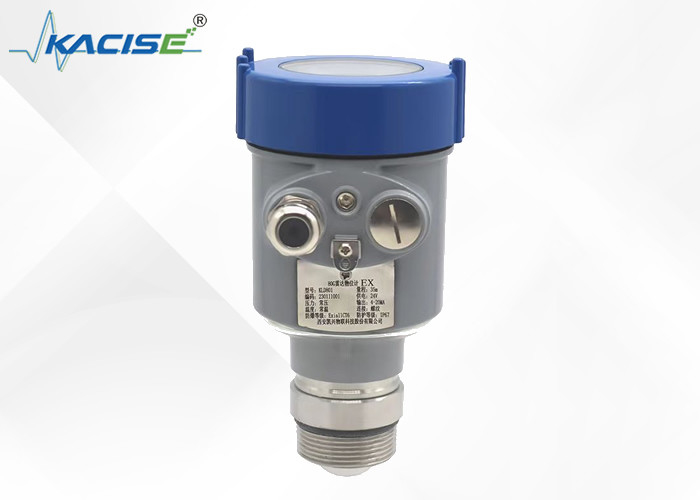

KLD804

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 4

Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

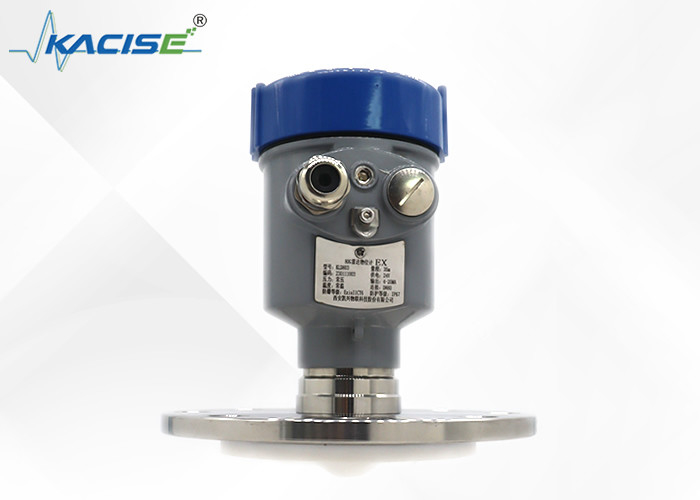

KLD805

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 5

Medium: strong corrosive liquid, steam, foam,

high temperature. and high pressure

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～200℃

Process pressure: -0.1～2.5MPa

Antenna size: 76mm lens antenna (according to flange size)

Antenna material: PTFE/overall filling

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum / plastic / stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

KLD806

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 6

Medium: solid, storage container, process container,

strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Production Flow

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 7

Packaging & Shipping

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 8

Cases

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 9

Certificates

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 10

Company Information

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring 11

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

Your inquiry will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM&ODM, we can help you to design and your request will be put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Discounts are offered based on order quantities.
We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

FAQ

1. Q: What information need to be provided to choose the suitable radar level sensor?

A: Please provide us: application field, medium, measuring range, output signal, power supply,

temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the KLD800series 80G High Frequency Radar Level Mete?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.
