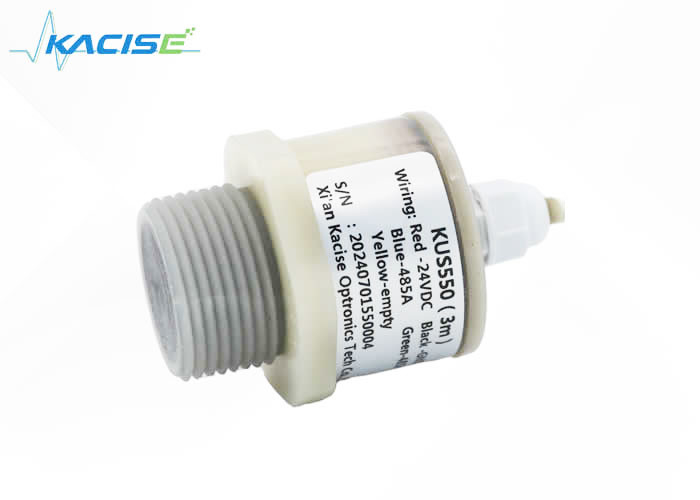

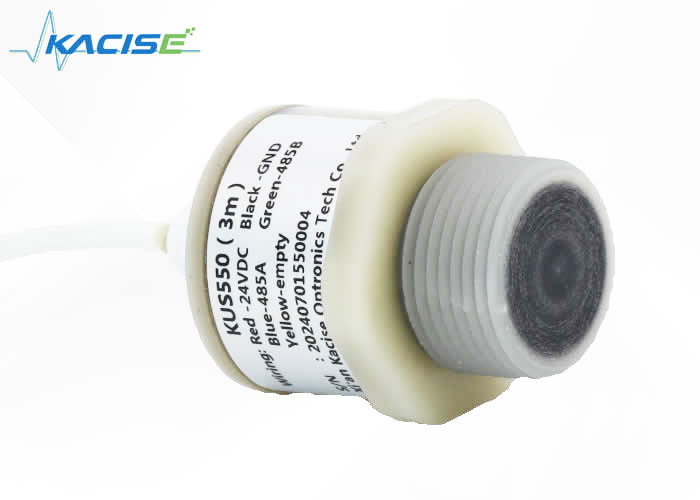

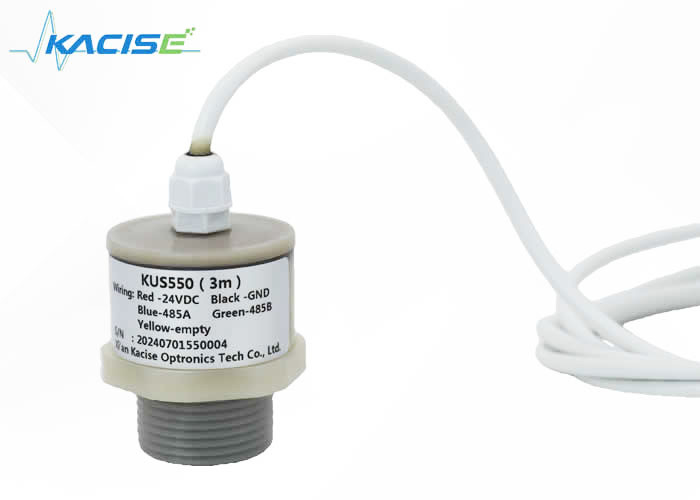

Temperature Compensated RS485 PVDF Water Level Meter for IoT Water Level Monitoring Solution

RS485 output PVDF material water level meter for iot water level monitoring

1.Features

• 7.5° narrow beam angle ensures high signal reliability
• Small range model with small blind zone and high resolution
• Automatic False Echo Suppression​

2.Dimension
Unit in the diagram is mm.

3.Description

The RS485 output PVDF material water level meter is an excellent device for IoT water level monitoring. Made of PVDF, it has outstanding corrosion resistance, suitable for various water quality scenarios. The RS485 output allows seamless connection and data transmission in IoT systems. It offers high-precision measurement of water levels, ensuring accurate and reliable data collection. With its advanced technology, it can be applied in multiple fields such as industrial water tanks, municipal water supply, and agricultural irrigation. Easy to install and operate, it plays a crucial role in efficient water resource management and intelligent monitoring, providing real-time water level information for better decision-making.

4.Low power consumption mode

Work mode set to 2 is low power concumption working mode.

How to realize the low power consumption ultrasonic level and distance sensor

  a) Use low power ICs

          We use almost new ICs by wich the power consumption is normally low.

  b) Controll the power of each circuit in the sensor.

      There are three parts of the circuit in the sensor, the transmitting circuit, the receiving circuit and the basic circuit of the mcu. The mcu realizes power consumption management by enabling control of the work of each part of the circuit, and then controls the power        consumption.

  c) When the mcu itself is not working, it enters sleep mode to further reduce power consumption.

5.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

6.Ordering information

KUS550 series ultrasonic sensor datasheet_v2.8.pdf...
