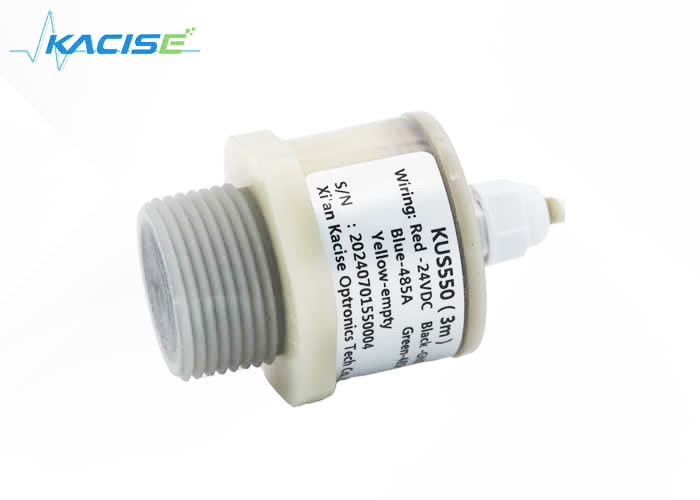

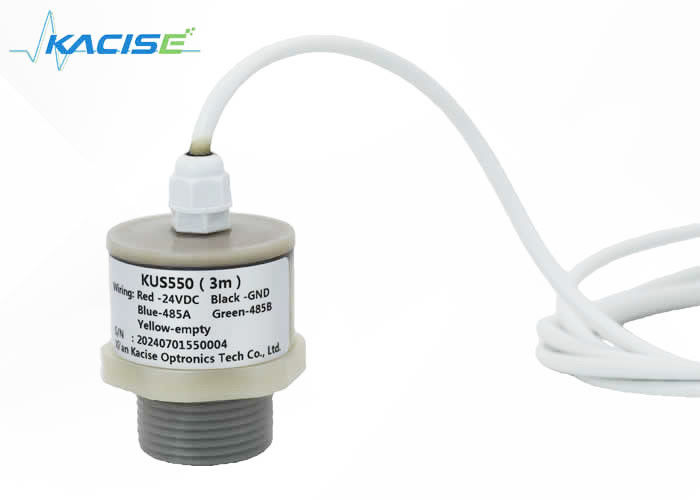

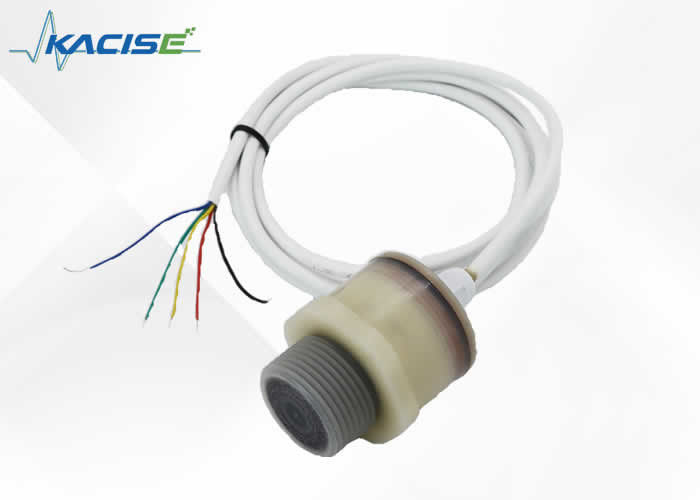

Name: 1 Meter Range Corrosion Resistant RS485 Output Water Level Gauge for Tank Level Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

1 Meter Range Corrosion Resistant RS485 Output Water Level Gauge for Tank Level Measurement

RS485 water level gauge

corrosion resistant water level gauge

1 meter water level gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUS550

Request A Quote

Product Details

Measuring Range:

0.25m~3m （5m Customizable）KUS550A； 0.15m-0.6m（1m Customizable）KUS550B

Blind Spot:

The Dead Zone Of KUS550A Is 0 ... 250 Mm (within 250mm Is Unstable Working Zone, It Is Not Recommended To Work In This Range); The Dead Zone Of KUS550B Is 0-150mm;

Supply Voltage:

3.3 ... 30 VDC, Ripple 10 %SS

Working Current:

≤ 45 MA (fastest Measurement Speed), Typical Power Consumption ≤ 10 MA;

Output Signal:

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog Output.

Measurement Accuracy:

≤1 %F.S.

Temperature Compensation:

Yes

Ranging Resolution:

0.1mm

Highlight:

RS485 water level gauge

corrosion resistant water level gauge

1 meter water level gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

316 Stainless Steel Capacitive Level Sensor with IP67 Protection and HART Communication for Harsh Environments

Get Best Price

80GHz Radar Level Gauge for High Temperature and Corrosive Tanks with FMCW Technology

Get Best Price

KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos

Get Best Price

26GHz Frequency Radar Level Meter with Non-Contact Measurement and IP67 Protection for Liquid Level Monitoring

Get Best Price

Contact Now

Product Description

1 meter corrosion resistant RS485 output water level gauge for water tank level measurement

Features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

The 1-meter corrosion resistant RS485 output water level gauge is an ideal solution for accurately measuring the level of water in tanks. Its corrosion-resistant properties ensure durability and reliable performance even in harsh and wet environments. With a measurement range of 1 meter, it can precisely detect the water level within the tank. The RS485 output enables seamless communication and integration with other monitoring and control systems. This allows for real-time data transmission and remote access, facilitating efficient water tank management. Whether it's in industrial settings, commercial water storage, or residential applications, this water level gauge provides accurate and consistent readings, helping to optimize water usage, prevent overflows, and ensure proper tank operation.

Dimension

Unit in the diagram is mm.

Parameter

General specifications

Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

Company Information

1 Meter Range Corrosion Resistant RS485 Output Water Level Gauge for Tank Level Measurement 1
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
