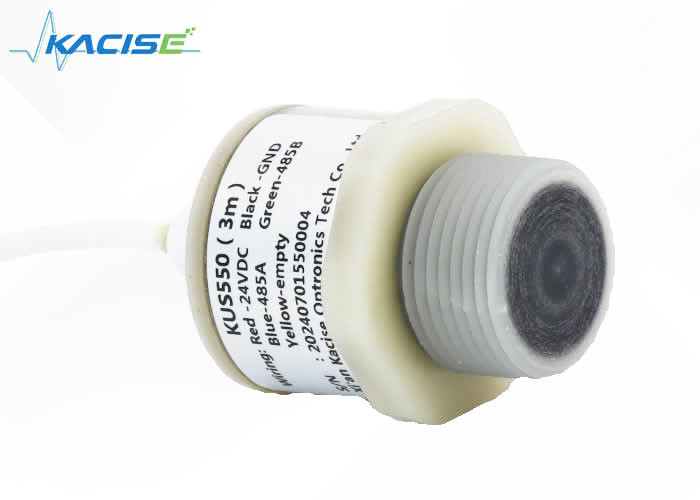

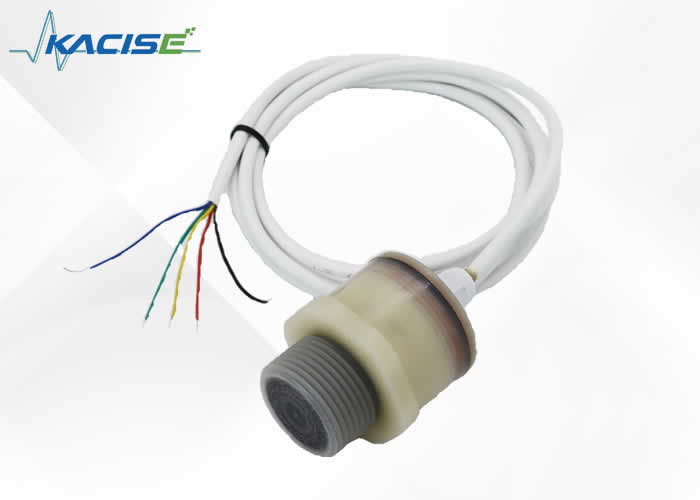

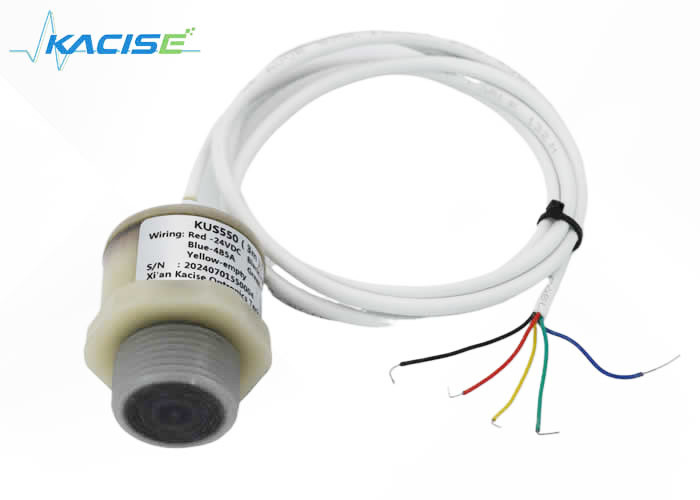

Name: Tank Water Supply Control 2m Corrosion-Resistant Water Level Gauge with Multiple Output Signals
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Tank Water Supply Control 2m Corrosion-Resistant Water Level Gauge with Multiple Output Signals

Multiple Output Signals Water Level Gauge

Corrosion-Resistant Water Level Gauge

2m Water Level Gauge

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KUS550

Request A Quote

Product Details

Measuring Range:

0.25m~3m （5m Customizable）KUS550A； 0.15m-0.6m（1m Customizable）KUS550B

Blind Spot:

The Dead Zone Of KUS550A Is 0 ... 250 Mm (within 250mm Is Unstable Working Zone, It Is Not Recommended To Work In This Range); The Dead Zone Of KUS550B Is 0-150mm;

Supply Voltage:

3.3 ... 30 VDC, Ripple 10 %SS

Working Current:

≤ 45 MA (fastest Measurement Speed), Typical Power Consumption ≤ 10 MA;

Output Signal:

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog Output.

Measurement Accuracy:

≤1 %F.S.

Temperature Compensation:

Yes

Ranging Resolution:

0.1mm

Highlight:

Multiple Output Signals Water Level Gauge

Corrosion-Resistant Water Level Gauge

2m Water Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

4-20ma Output Laser Transmitter Pyrometer Non Contact Infrared Temperature Sensor With Laser Targeting

Get Best Price

KWG200 Gas Monitor,DC3.6V lithium battery，detect methane

Get Best Price

LSBM-100 Surveying and Mapping Laser Ranging Module

Get Best Price

Externally-mounted Liquid Level Gauge Digital Display For Monitoring Industrial Spherical Tanks Liquid Level

Get Best Price

86--17719566736

Contact Now

Product Description

A water level gauge with a 2 m corrosion-resistant switching output is used to control the water supply to the tank

Features

High sensitivity.

Compact and robust structure.

IP68 high protection rating.

Corrosion resistant casing, suitable for corrosive medium and application

The water level gauge with a 2 m corrosion-resistant switching output is a crucial device for tank water supply control. Engineered to resist corrosion, it can endure the potentially harsh and wet conditions often present in water tank environments. With a measurement range of 2 meters, it precisely monitors the water level. The switching output functionality is highly practical. When the water level reaches specific preset thresholds, the switch is activated. This triggers actions such as starting or stopping the water supply pump, ensuring that the tank is neither overfilled nor depleted. It offers a reliable and automated solution for maintaining the appropriate water level in the tank, enhancing the efficiency and safety of the water supply system.

Dimension

Unit in the diagram is mm.

Parameter

General specifications

Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

Company Information

Tank Water Supply Control 2m Corrosion-Resistant Water Level Gauge with Multiple Output Signals 1
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Tank Water Supply Control 2m Corrosion-Resistant Water Level Gauge with Multiple Output Signals 2

Tank Water Supply Control 2m Corrosion-Resistant Water Level Gauge with Multiple Output Signals 3
