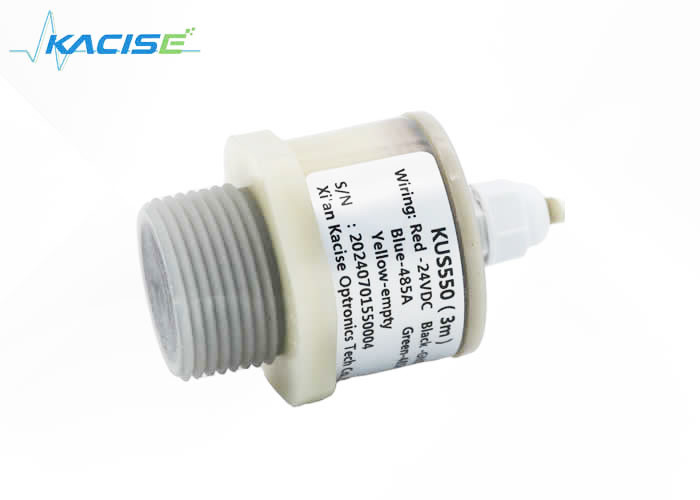

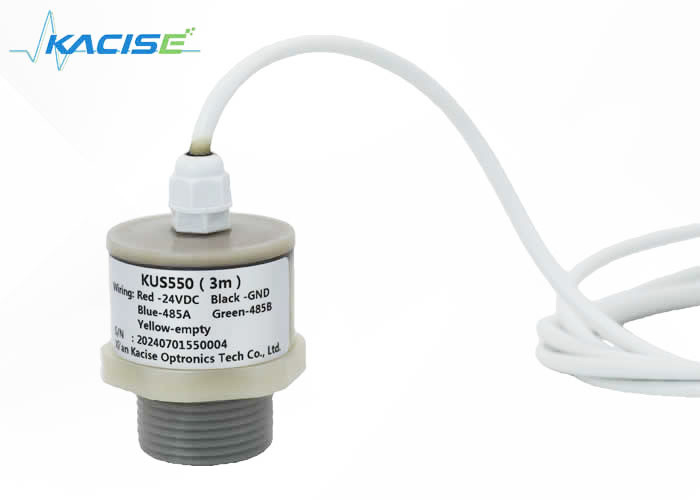

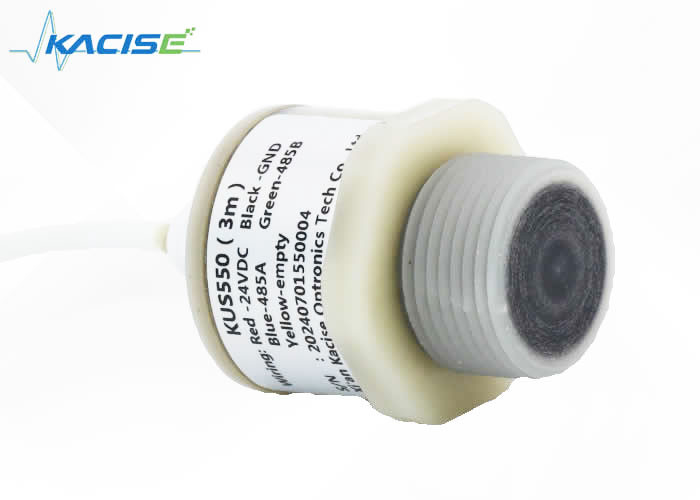

Name: Precise Temperature Compensation Level Meter with 2m Switching Output for Distance Alarm in Mechanical Production Process
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Precise Temperature Compensation Level Meter with 2m Switching Output for Distance Alarm in Mechanical Production Process

Precise Temperature Compensation Level Meter

Distance Alarm Level Meter

2m Switching Output Level Meter

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KUS550

Request A Quote

Product Details

Measuring Range:

0.25m~3m （5m Customizable）KUS550A； 0.15m-0.6m（1m Customizable）KUS550B

Blind Spot:

The Dead Zone Of KUS550A Is 0 ... 250 Mm (within 250mm Is Unstable Working Zone, It Is Not Recommended To Work In This Range); The Dead Zone Of KUS550B Is 0-150mm;

Supply Voltage:

3.3 ... 30 VDC, Ripple 10 %SS

Working Current:

≤ 45 MA (fastest Measurement Speed), Typical Power Consumption ≤ 10 MA;

Output Signal:

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog Output.

Measurement Accuracy:

≤1 %F.S.

Temperature Compensation:

Yes

Ranging Resolution:

0.1mm

Highlight:

Precise Temperature Compensation Level Meter

Distance Alarm Level Meter

2m Switching Output Level Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

4-20ma Output Laser Transmitter Pyrometer Non Contact Infrared Temperature Sensor With Laser Targeting

Get Best Price

KWG200 Gas Monitor,DC3.6V lithium battery，detect methane

Get Best Price

LSBM-100 Surveying and Mapping Laser Ranging Module

Get Best Price

Externally-mounted Liquid Level Gauge Digital Display For Monitoring Industrial Spherical Tanks Liquid Level

Get Best Price

86--17719566736

Contact Now

Product Description

The level meter with 2 m corrosion-resistant switching output is used for distance alarm in the mechanical production process

Features

High sensitivity.

Compact and robust structure.

IP68 high protection rating.

Corrosion resistant casing, suitable for corrosive medium and application

The level meter with a 2 m corrosion-resistant switching output serves as a vital component for distance alarm applications in the mechanical production process. This level meter is specifically designed to withstand corrosive elements, guaranteeing its durability and stable performance even in harsh industrial settings. With a measurement range of 2 meters, it can accurately detect the distance of objects or substances. The switching output feature is of great significance. When the measured distance reaches the preset critical values, the switch is activated, immediately triggering an alarm. This timely alarm enables operators to take prompt corrective actions, preventing potential equipment collisions, ensuring the smooth progress of the production process, and safeguarding the integrity and safety of the machinery and overall production line.

Dimension

Unit in the diagram is mm.

Parameter

General specifications

Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS
