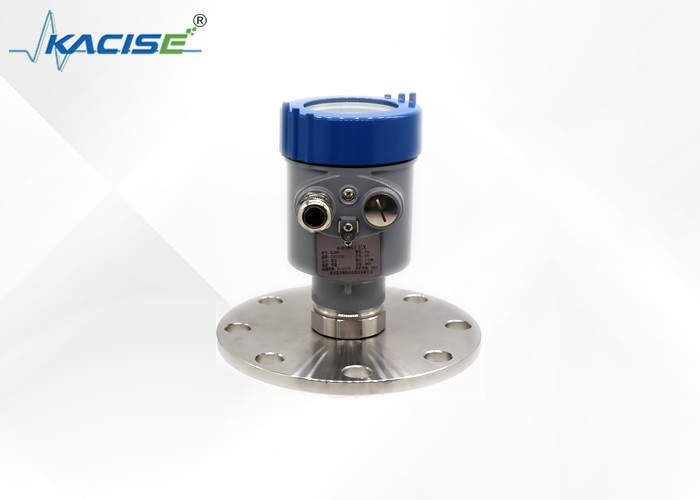

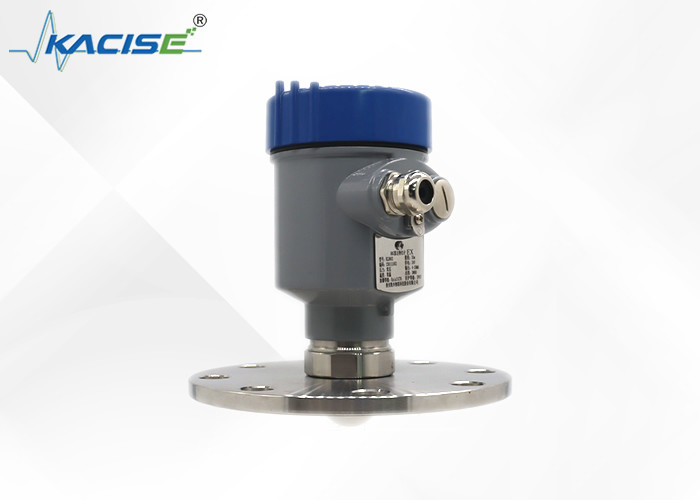

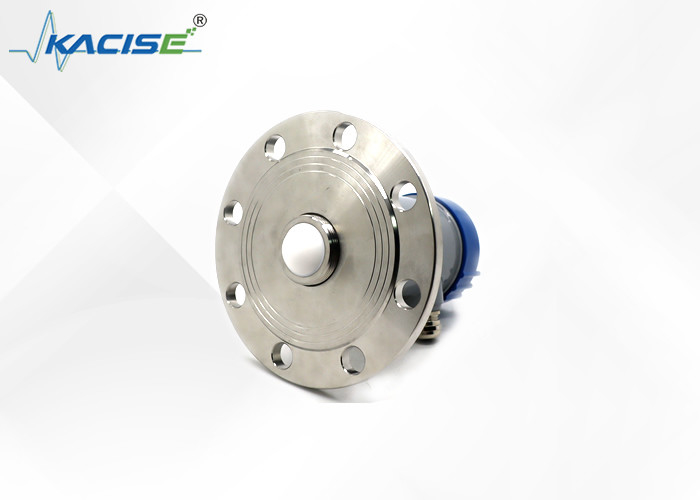

KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring

KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring

Slightly Corrosive Liquids Radar Level Gauge

Slightly Corrosive Liquids Level Gauge

KLD802 Radar Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLD802

Contact Us
Request A Quote
Product Details
Measuring Range:
0.05m~10/20/30/60/100m
Process Temperature::
-40~80℃
Protection Class::
IP67
Center Frequency::
80GHz
Power Supply::
Two-wire /DC24V
Highlight:

Slightly Corrosive Liquids Radar Level Gauge

,

Slightly Corrosive Liquids Level Gauge

,

KLD802 Radar Level Gauge

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
Product Description
The KLD802 radar level gauge is a highly specialized device for monitoring slightly corrosive liquids. Engineered with advanced materials and technology, it is well-equipped to withstand the challenges posed by such substances. It functions by emitting powerful radar signals that penetrate the liquid medium and bounce back, allowing for extremely accurate level determination. The gauge's precision is unrivaled, providing real-time data that is crucial for effective inventory management and process control in industries dealing with slightly corrosive fluids. Its durable build and reliable performance make it an indispensable asset in chemical processing plants, storage facilities, and other operations where the integrity of level monitoring for slightly corrosive liquids is of utmost importance.
Parameter

KLD802



KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 0



Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40~110℃

Process pressure: -0.1~1.6MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire / 4...20mA/ RS485 Modbus





Apply


KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 1

KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 2
KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 3
Production Flow


KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 4

Product packaging


KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 5

Company Profile


KLD802 Radar Level Gauge For Slightly Corrosive Liquids For Slightly Corrosive Liquids Monitoring 6
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
