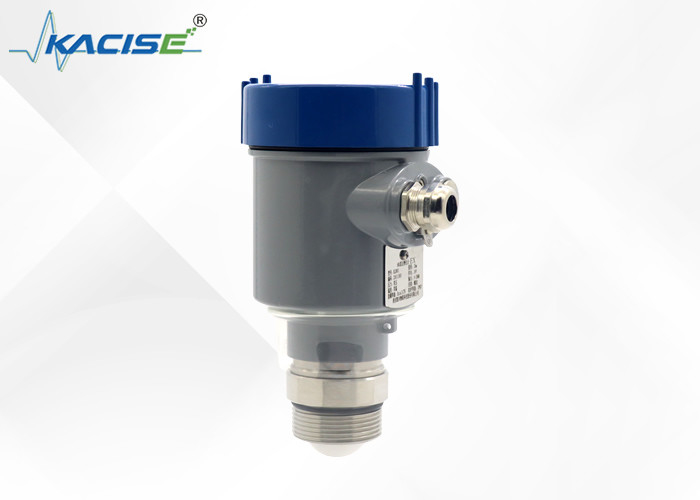

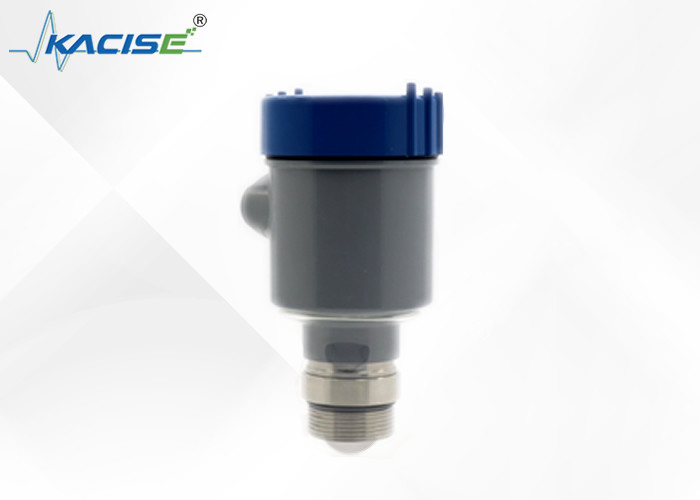

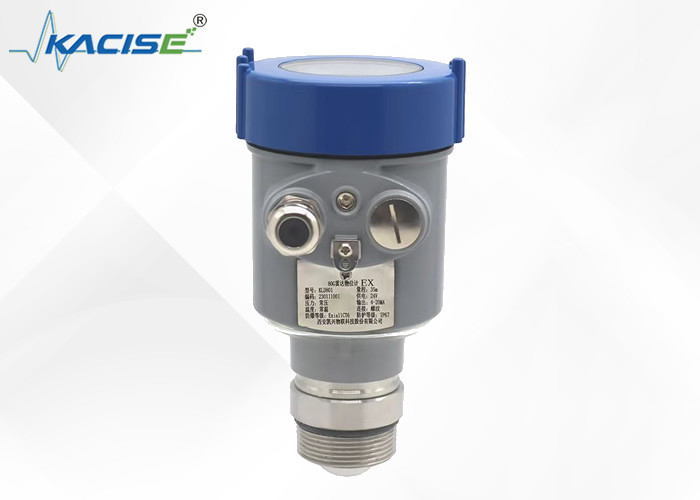

KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids

KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids

Non-corrosive liquids radar level gauge

Non-corrosive liquids level gauge

KLD801 radar level gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLD801

Contact Us
Request A Quote
Product Details
Measuring Range:
0.05m~10/20/30/60/100m
Process Temperature::
-40~80℃
Protection Class::
IP67
Center Frequency::
80GHz
Power Supply::
Two-wire /DC24V
Highlight:

Non-corrosive liquids radar level gauge

,

Non-corrosive liquids level gauge

,

KLD801 radar level gauge

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
Product Description
The KLD801 radar level gauge is a top-notch solution for monitoring the levels of non-corrosive liquids. Specifically designed to handle such substances, it offers remarkable accuracy and reliability. Utilizing advanced radar technology, it emits electromagnetic waves that interact with the liquid surface. The reflected waves are then precisely analyzed to determine the liquid level. With its robust construction and sensitive detection system, it can function effectively in a wide range of industrial and commercial settings. The clear and intuitive interface provides users with instant access to crucial level data, enabling efficient process control and inventory management. Whether in chemical plants, storage tanks, or manufacturing facilities dealing with non-corrosive liquids, the KLD801 is an essential tool for seamless and accurate level monitoring.
Parameter

KLD801



KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 0





Medium: liquid, non-corrosive

Measuring range: 0.05m~10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40~80℃

Process pressure: -0.1~0.3 MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±2mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: Two-wire /DC24V

Four-wire system/DC12~24V

Four-wire system/AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

Four-wire system: 4...20mA/ RS485 Modbus







Apply


KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 1

KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 2
KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 3
Production Flow


KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 4

Product packaging


KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 5

Company Profile


KLD801 Radar Level Gauge For Non-corrosive Liquids Is Used For Level Monitoring Of Non-corrosive Liquids 6
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
