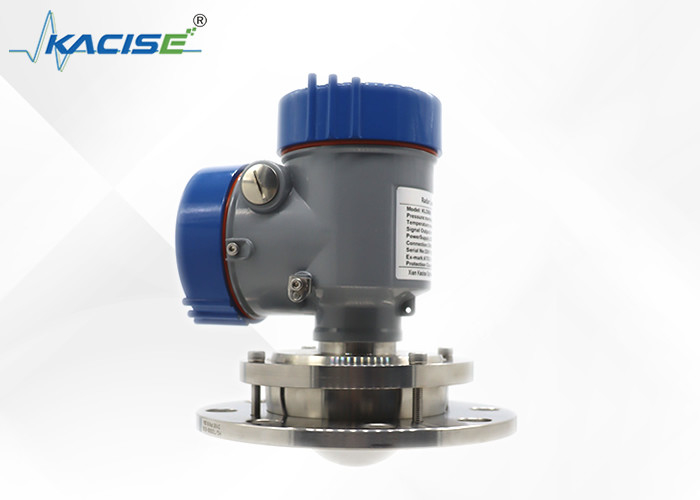

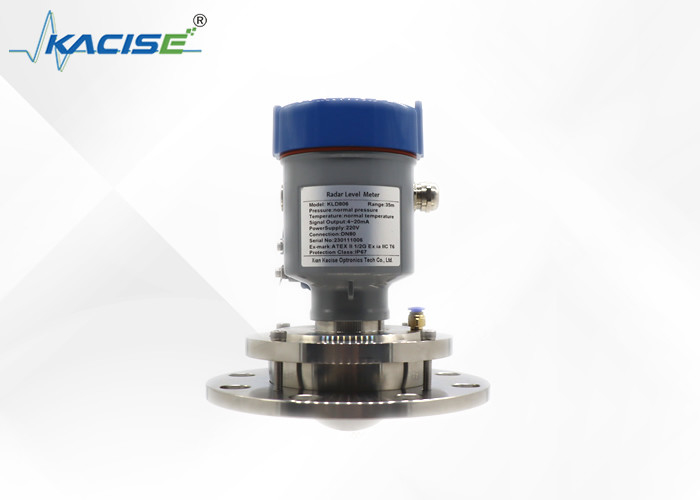

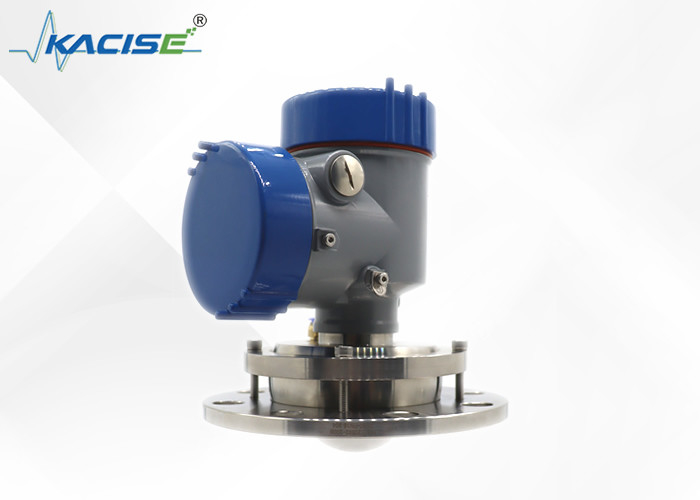

RS485 Output KLD806 Radar Level Meter For Solid Distance

RS485 Output KLD806 Radar Level Meter For Solid Distance

KLD806 radar level meter

RS485 output radar level meter

Solid distance radar level meter

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KLD806

Contact Us
Request A Quote
Product Details
Medium:
Solid, Storage Container, Process Container, Strong Dust Application
Measuring Range:
0.3m~10/20/30/60/100m
Process Connection:
Flange ≥ DN100
Process Temperature:
-40~110℃
Process Pressure:
-0.1~0.3MPa
Antenna Size:
76mm Lens Antenna (purge Optional)
Antenna Material:
PTFE
Highlight:

KLD806 radar level meter

,

RS485 output radar level meter

,

Solid distance radar level meter

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
Product Description
The KLD806 radar level meter with RS485 output is a remarkable device designed specifically for measuring solid distances. It utilizes advanced radar technology to emit electromagnetic waves that travel towards the solid target. These waves then bounce back, and the meter calculates the distance based on the time taken for the round trip. The RS485 output enables seamless integration with other control systems and data loggers, facilitating efficient data transmission and remote monitoring. This radar level meter is highly accurate and reliable, making it suitable for a wide range of applications in industries such as mining, warehousing, and construction. It can precisely measure the distance to various solid materials like ores, grains, and building materials, providing crucial information for inventory management, process control, and safety operations.
Parameter

KLD806







RS485 Output KLD806 Radar Level Meter For Solid Distance 0





Medium: solid, storage container, process container,

strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40~110℃

Process pressure: -0.1~0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±5mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus









Apply


RS485 Output KLD806 Radar Level Meter For Solid Distance 1

RS485 Output KLD806 Radar Level Meter For Solid Distance 2
RS485 Output KLD806 Radar Level Meter For Solid Distance 3
Production Flow


RS485 Output KLD806 Radar Level Meter For Solid Distance 4

Product packaging


RS485 Output KLD806 Radar Level Meter For Solid Distance 5

Company Profile


RS485 Output KLD806 Radar Level Meter For Solid Distance 6
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
Our Services
* Your inquiry will be replied in 24hours.
* Well-trained and experienced staffs to answer all your enquires in fluent English.
* OEM&ODM, we can help you to design and your request will be put into product.
* Distributorship are offered for your unique design and some our current models.
* Protection of your sales area, ideas of design and all your private information.
* Discounts are offered based on order quantities.
