Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring

Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring

Highly Accurate Ultrasonic Water Level Sensor

Two-Wire Ultrasonic Water Level Sensor

Reservoir Monitoring Ultrasonic Water Level Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KUM Series

Contact Us
Request A Quote
Product Details
Range:
5m,10m,15m,20m,30m,40m,50m,60m
Accuracy:
0.5%~1%
Resolution:
3mm Or 0.1%(The Larger One Is Effective)
Display:
English LCD
Communication:
RS485,RS232 (optional)
Protection:
Display Instrument IP66,transducer IP68
Highlight:

Highly Accurate Ultrasonic Water Level Sensor

,

Two-Wire Ultrasonic Water Level Sensor

,

Reservoir Monitoring Ultrasonic Water Level Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
Product Description
Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 0

The Output RS232 Two-Wire Ultrasonic Water Level Sensor is a highly efficient and reliable instrument for reservoir water level measurement. This sensor combines the advantages of two-wire connection and RS232 output. The two-wire setup simplifies installation, reducing the complexity of wiring and associated costs. It emits ultrasonic waves that travel through the air above the reservoir and bounce back upon hitting the water surface. By precisely measuring the time it takes for the waves to return, it can accurately calculate the water level. The RS232 output allows for seamless data transfer to a computer or other monitoring device, enabling real-time analysis and record-keeping of the water level. This is crucial for effective reservoir management, such as flood control, water allocation, and ensuring the structural integrity of the reservoir.

Parameter
Parameter Compact type Split type
Range 5m,10m,15m,20m,30m,40m,50m,60m 5m,10m,15m,20m,30m,40m,50m,60m
Accuracy 0.5%~1%
Resolution 3mm or 0.1%(The larger one is effective)
Display English LCD English LCD
Analog Output

4wire 4~20mA/510Ω load

2wire 4~20mA/250Ω load

4~20mA/510Ω load
Relay Output 2 way AC 250V/5A or DC 30V/5A, programmable(optional) 2 or 4 way AC 250V/ (NO:10A,NC:6A) or DC 24V/ 10A, programmable (optional)
Power Supply

24VDC (default)

220V AC+15%@50Hz

12VDC

Battery

24VDC 120mA (default)

220V AC+15%@50Hz

12VDC

Battery

Environment Temperature

Display instrument-20~+60℃,

transducer-20~+80℃

Display instrument -20~+60℃,

transducer-20~+80℃

Communication RS485,RS232 (optional)
Protocol Modbus-RTU
Protection Display instrument IP66,transducer IP68
Transducer Cable no

Default 10m

Max. 100m can be ordered (when without electromagnetic interference)

Transducer Installation According to range and transducer According to range and transducer
Power Consumption

The specific power of split-type is as follows:

With only mA output, it is 1.5W/24V (standard);

With only RS485 output, it is 0.9W/24V (optional);

With both RS485 and mA output, it is 1.6W/24V (optional);

Add two relays, the power is increased by 0.8W/24V (optional);

The power of 220VAC split-type is 5W/220VAC.



The specific power of compact four-wire instrument is as follows:

With only mA output, it is 1W/24V (standard);

With only RS485 output, it is 0.6W/24V (optional);

With both RS485 and mA output, it is 1.1W/24V (optional);

Add two relays, the power is increased by 1W/24V (optional);

The power of 220VAC compact four-wire instrument is 5W/220VAC.



24V compact two-wire instrument output power and instrument output current value are related: (4mA/0.096W-20mA/0.48W)

nstallation dimensions:

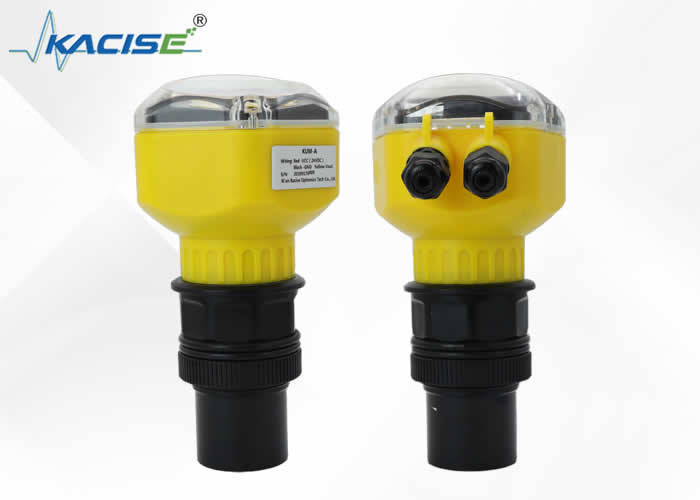

KUM-A/KUM-C Compact enhanced ultrasonic level sensor:

Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 1

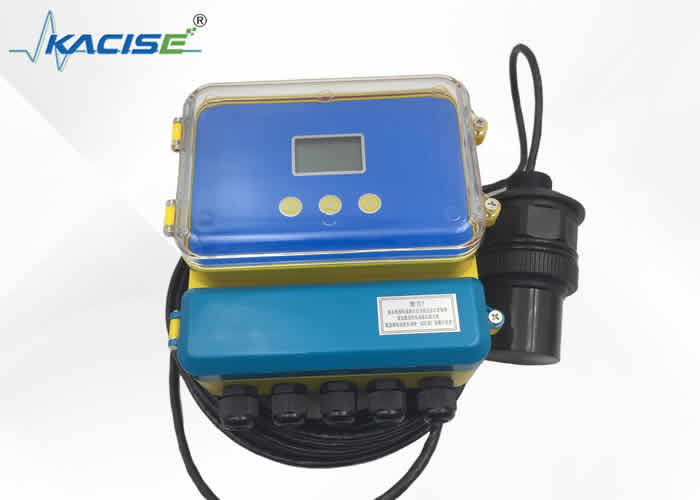

KUM-B Split type standard ultrasonic level sensor:

Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 2
KUM-E compact explosion-proof ultrasonic level sensor:

Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 3



Apply
Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 4
Production Flow

Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 5

Product packaging


Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 6

Company Profile


Highly Accurate RS232 Two-Wire Ultrasonic Water Level Sensor for Reservoir Monitoring 7
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
